C.3: Heatsink Mounting Instructions (XE2/XP2/XM2, "-N" and
800-1887 Models)
HE2-HK heatsink kit installation
•
Standard heatsink for Xenus Plus "-N" models
•
Complete kit for user installation of the heatsink.
DESCRIPTION
The XE2-HK is a kit containing a heatsink and mounting hardware for field installation of a standard heatsink
onto "-N" versions of the Xenus Plus Dual Axis drives.
Heatsink kit part list
Qty Description
Heatsink, standard, Xenus Plus Dual "-N"
1
1 Thermal pad, 4x4 in.
Kit, Heatsink Hardware, Xenus Plus Dual
"-N"
1
4
4

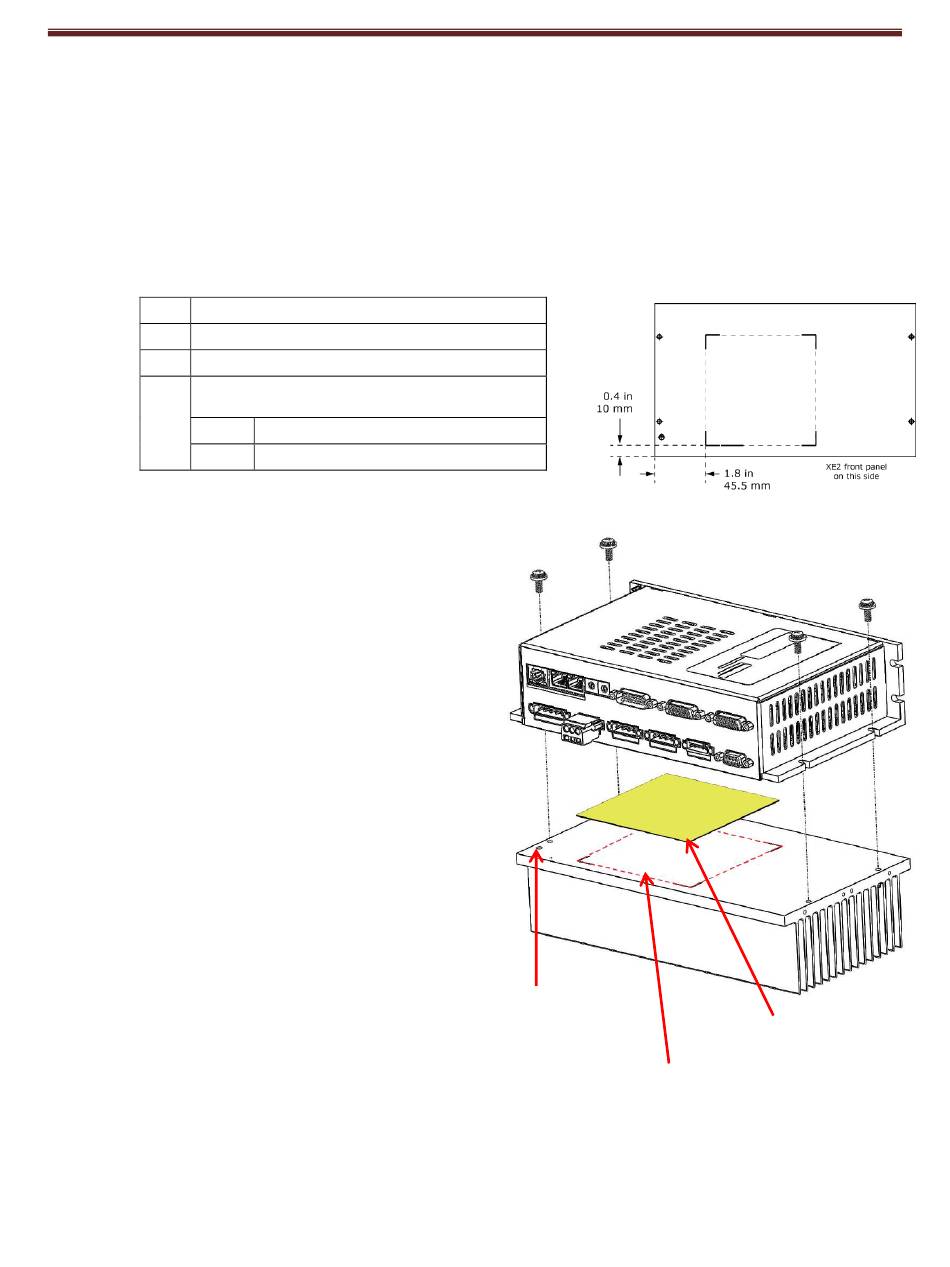

INSTALLATION
1) Place the heatsink fins-down on a
work surface.
Orient the heatsink so that the edge
with part number is away from you.
The hole for the Xenus Plus Dual
grounding lug should be to your left.
2) Remove the clear protective film
from the thermal material and
discard it. Place the thermal material
onto the heatsink in the placement
area which is marked with four white
"L".
Apply light pressure to ensure that
the thermal material is flat.
3) Peel the white protective layer away
from the thermal material.
Do this slowly from one corner so as
not to lift the thermal material from
the w1heatsink.
4) Align the Xenus Plus Dual as shown
and lower onto the heatsink.
If needed to adjust the position, lift it
away from the thermal material and
lower onto the heatsink again.
5) Install the four mounting screws with
flat washers and tighten evenly.
Torque to 17.8 lb-in (2.0 Nm)
maximum.
Copley Controls
Washer, flat, #8
Screw, PAN, SEMS, #8-32 x ½ in.
T
XE2 grounding
lug hole.
Thermal material
placement area
16-01344 Rev 06
hermal material mounting
Thermal material
