Xenus Plus User Guide
4.7.7: MTO Connector Requirements
The MTO connector on the XEL-XPL-XML (J5) is a Kycon K22X-E9S-N. It is a Dsub-9F receptacle
with gold-flash plating on the pins and #4-40 standoffs which can receive male jack-screws on the
cable connector. The mating cable connector should have crimp and poke contacts with gold flash
or plating and jack-screws.
This is an example of a cable connector that is suitable for the XEL-XPL-XML drives:
Other types may be suitable if they have crimp and poke contacts with
gold flash or plating, and jack-screws for retention.

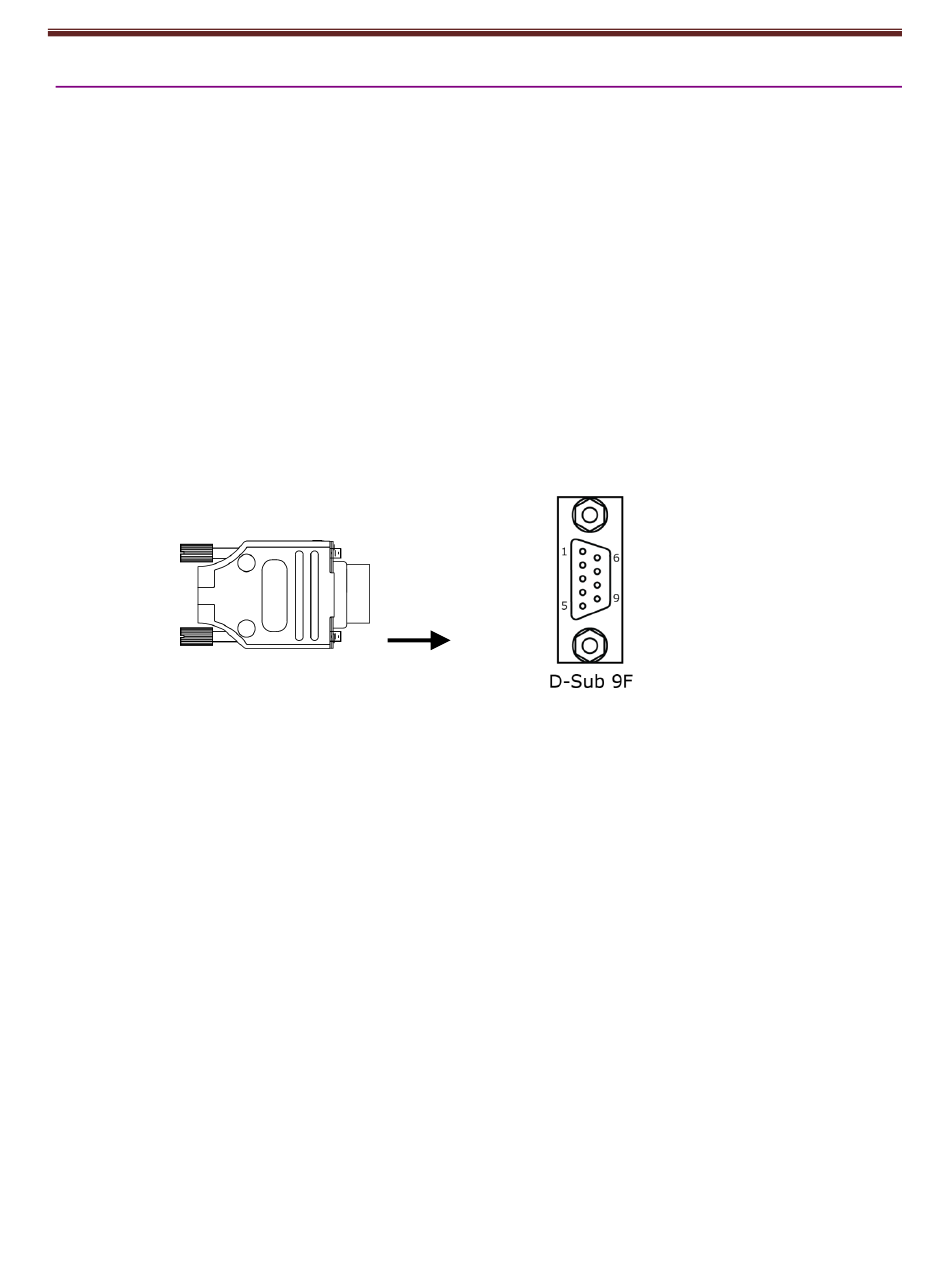

MTO Cable Connector
Copley Controls
Housing: AMP Tyco PN 205204-4, D-Sub-9M, tin plated, crimp contacts
Contacts: AMP Tyco PN 66506-9, stamped, male, 10 micron gold, AWG 20-24
Backshell: Norcomp PN 970-009-020R121, metalized plastic with thumbscrews
MTO Receptacle J5
