Xenus Plus User Guide

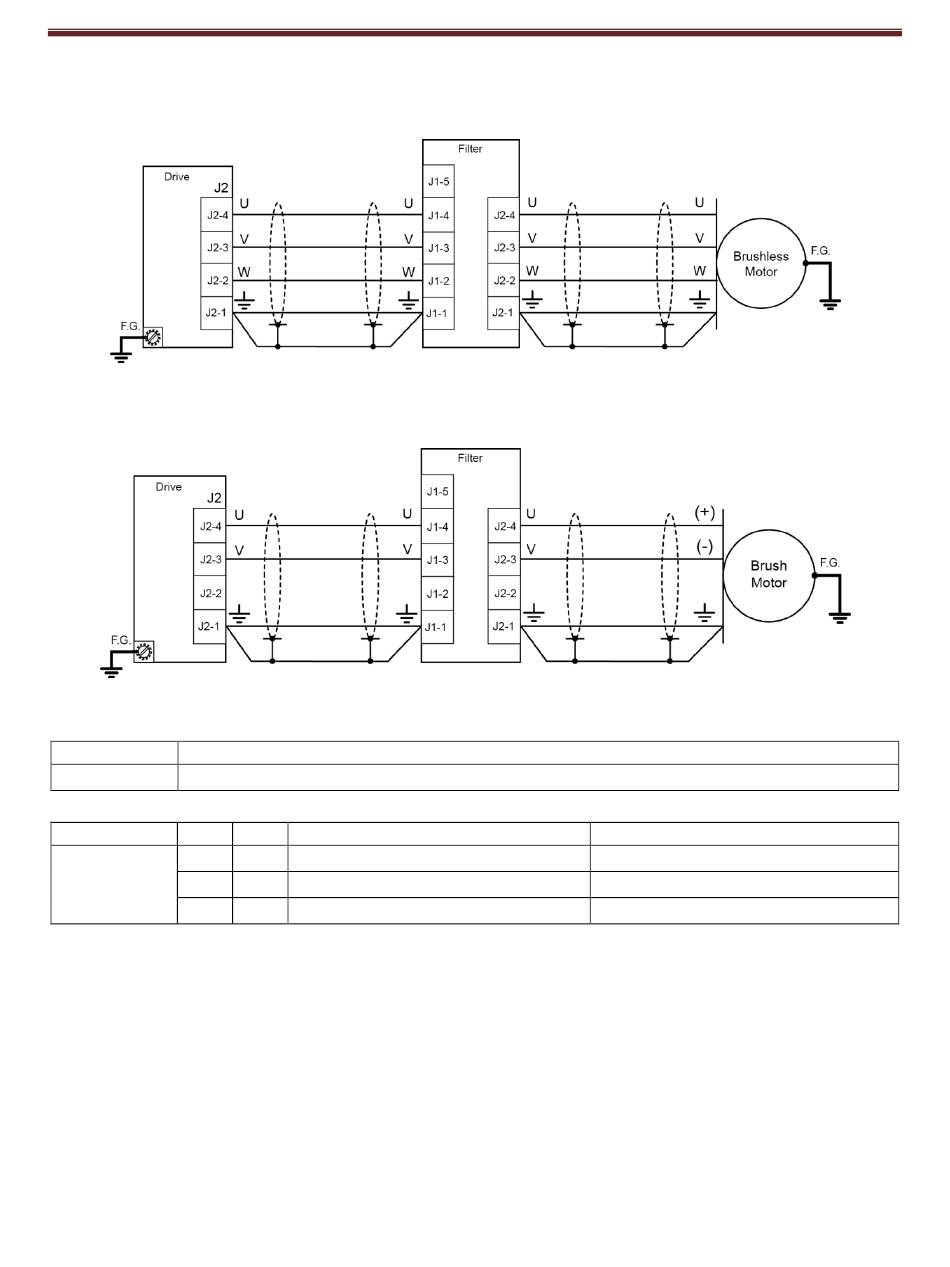

D.2.6: Diagram: Edge Filter Wiring with Brushless Motor
This is an example for a Xenus Plus Single Axis drive. For Xenus Plus Dual Axis, connectors J3 or
J4 on the drive are used for outputs to the filter.
D.2.7: Diagram: Edge Filter Wiring with Brush Motor
This is an example for a Xenus Plus Single Axis drive. For Xenus Plus Dual Axis, connectors J3 or
J4 on the drive are used for outputs to the filter.
D.2.8: XTL-FA-01 Edge Filter Ordering
Filter
Model Description
XTL-FA-01 Xenus Plus Edge Filter
Connector Kit
Model Qty
1
XTL-FK 1
2
Copley Controls
Ref Description
J1 Plug, 5 position, 5.0 mm, female
J2 Plug, 4 position, 5.0 mm, female
-- Insertion / Extraction Tool
16-01344 Rev 06
Mfr. Model No.
Wago: 721-105/026-047
Wago: 721-104/026-047
Wago: 231-131
156
