Xenus Plus User Guide

4.5: Logic Supply / Brake

4.5.1: XEL/XPL/XML (J4)
The following information is for XEL/XPL/XML drives only.
Mating Connector
Description
Manufacturer PN
Wire Size
Recommended Wire
Wire Insertion/Extraction Tool
Standard connector and tool are included in Connector Kits XEL-CK, XML-CK, and XPL-CK.
Pin Description
Pin Signal
1 RTN
2 Brake
3 +24 Vdc

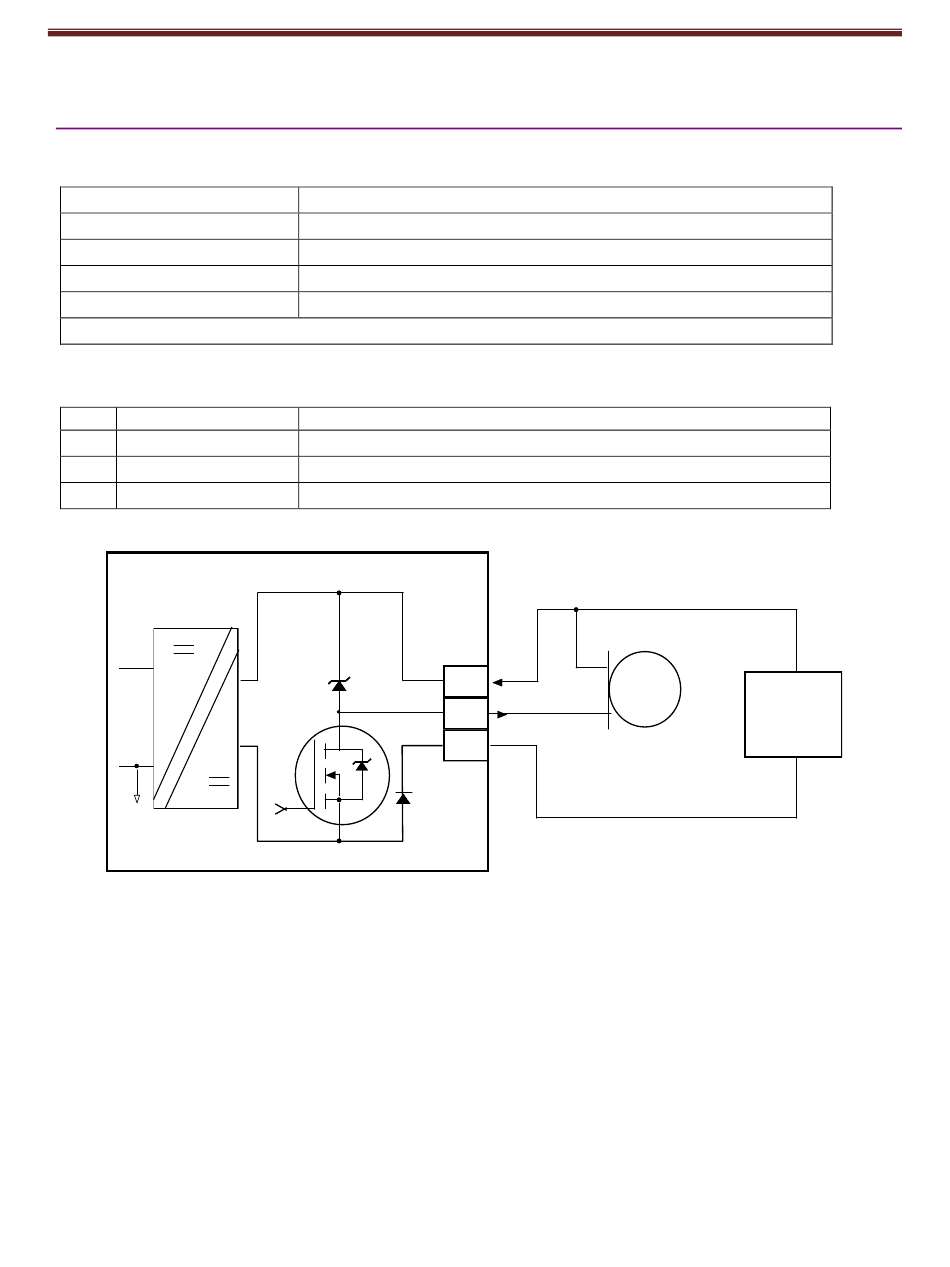

Logic Supply / Brake Wiring Diagram
Drive
Isolated Logic
Power Supply
Copley Controls
Euro-style, 3 position, 5.0 mm pluggable female terminal block.
Wago: 721-103/026-047
22 - 14 AWG
18 AWG
Wago: 231-131
Function
+24 Vdc return
Return or low side of motor brake
+24 Vdc Logic power supply
J4
J4-3
J4-2
J4-1
Brake
+24 V
Brake
RTN
16-01344 Rev 06
+24 Vdc
Power
Supply
(Required)
96
