Xenus Plus User Guide
4.11.4: Isolated Control - XE2/XP2/XM2/800-1818 (J9)
J9 is a 26 position male D-sub connector used for isolated controls
Mating Connections
Description
26 Position, High-Density D-Sub Female Solder
Style Connector
Back shell
Solder style connector included in Connector Kits XE2-CK, XP2-CK and XM2-CK.

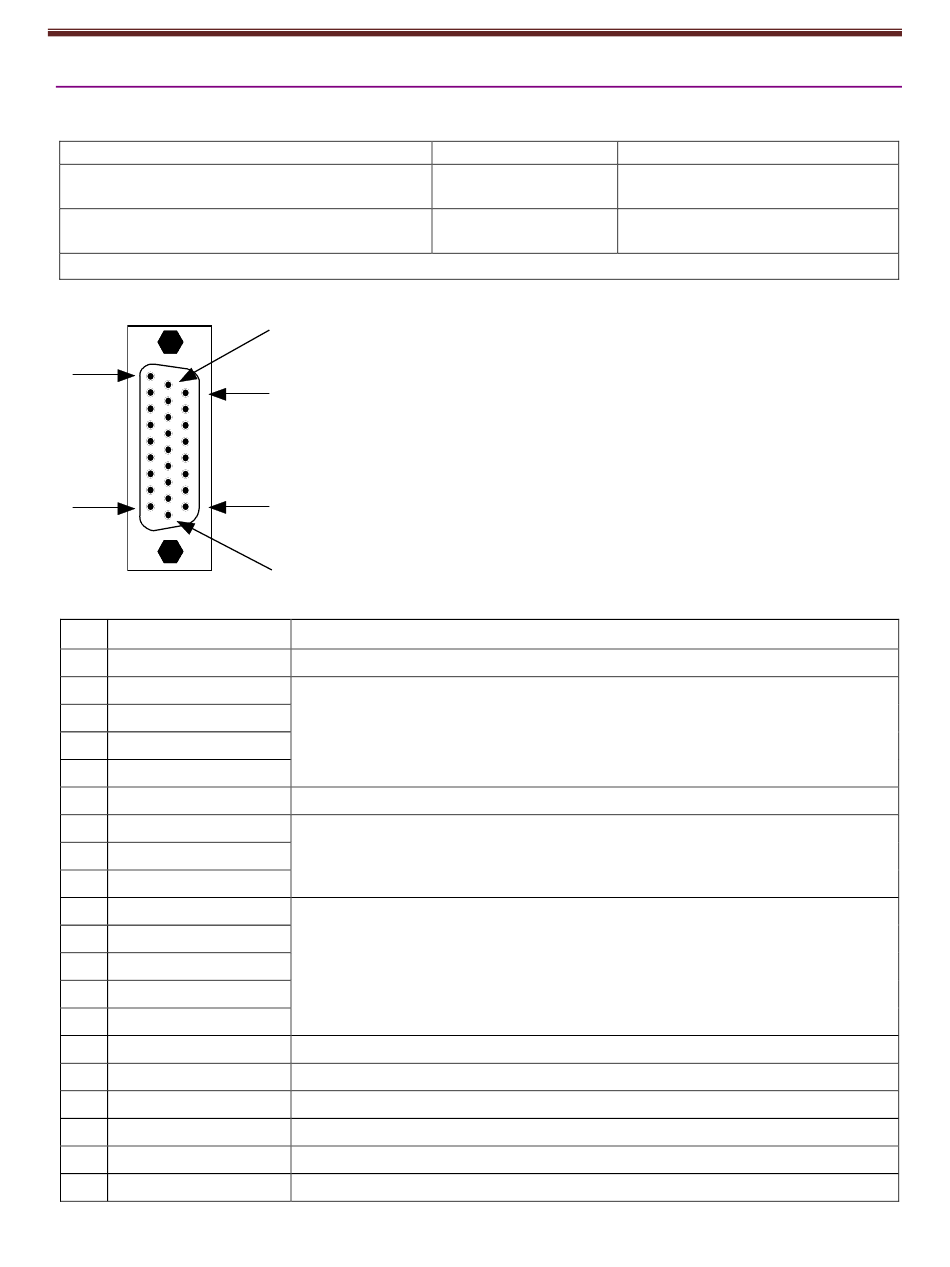

Pin connections for the bulkhead connector on the drive are shown here:
9
1
XE2/XP2/XM2 Pin Description
Pin Signal
1 Frame Ground
2 IN6 GPI
3 IN7 GPI
4 IN8 GPI
5 IN9 GPI
6 COM1
7 IN16 GPI
8 IN17 GPI
9 IN18 GPI
10 OUT1- GPI
11 OUT2- GPI
12 OUT3- GPI
13 OUT4- GPI
14 OUT5- GPI
15 N/C
16 N/C
17 COM2
18 IN19 GPI
19 OUT1+ GPI
20 OUT2+ GPI
Copley Controls
Manufacturer PN
Norcomp 180-026-
203L001
Norcomp 979-015-
020R121
18
26
19
10
Function
Cable shield connection.
Optically isolated programmable input.
Common signal for first group of optically isolated programmable inputs (IN6-IN9)
Optically isolated programmable input.
Optically isolated programmable output negative signal.
No connection.
No connection.
Common signal for first group of optically isolated programmable inputs (IN16-IN19)
Optically isolated programmable input.
Optically isolated programmable output positive signal.
Optically isolated programmable output positive signal.
16-01344 Rev 06
Wire Size
24 - 30 AWG
