Xenus Plus User Guide
4.3.2: (J3, J4) XE2/XP2/XM2/800-1818/800-1819/800-1887
Mating Connector
Description
Manufacturer PN
Wire Size
Recommended Wire
Wire Insertion/Extraction Tool
Standard connector and tool are included in Connector Kits XE2-CK, XM2-CK, and XP2-CK.
Pin Description
Pin Signal
1 Ground
2 W
3 V
4 U

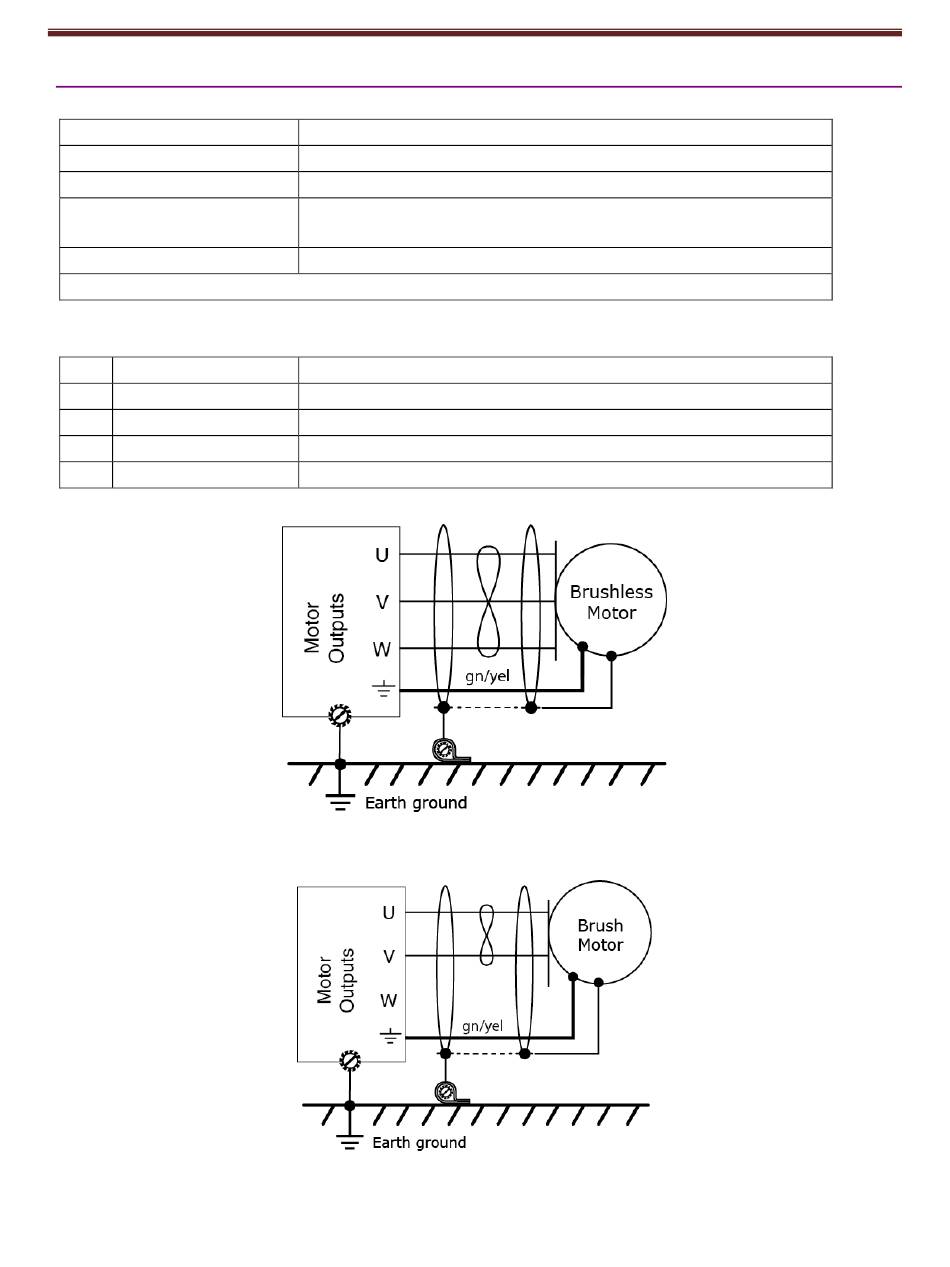

Brushless Motor Wiring Diagram
Brush Motor Wiring Diagram
Copley Controls
Euro-style, 4 position, 5.08 mm pluggable female terminal block
Wago: 231-304/107-000
22 - 12 AWG
12 AWG, 600 V
Shielded cable required for CE compliance
Wago: 231-131 or 231-291
Function
Motor frame ground and cable shield
Phase W output of drive
Phase V output of drive (use for DC motor connection)
Phase U output of drive (use for DC motor connection)
16-01344 Rev 06
