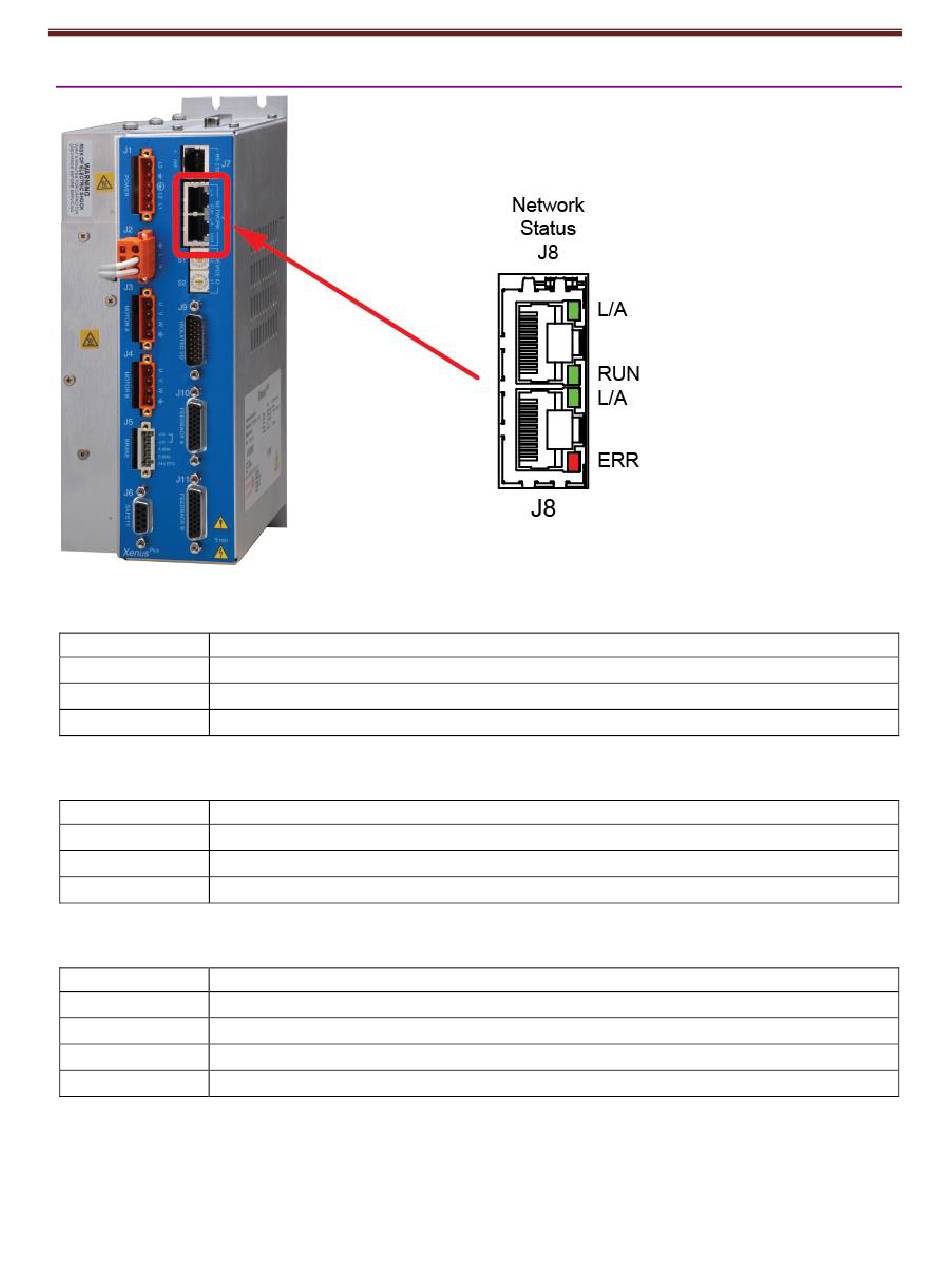

2.5.10: XP2 J8 RUN, ERR, & L/A Indicators
XP2 J8 L/A Indicators
Shows the state of the physical link and activity on the link.
L/A (Green) Meaning
Off No link
On Port open, no activity
On and flickering Port open and activity
XP2 J8 RUN Indicator
Indicates the state of the CANopen state machine
Meaning
RUN (Green)
Blinking Pre-operational
Single flash Stopped
On Operational
XP2 J8 ERR Indicator
Indicates that errors have occurred on the CANopen drive or network
ERR (Red) Meaning
Single flash red Warning Limit Reached
Double flash red Error Control Event
Triple flash red Sync Error
Steady red Bus Off
