Xenus Plus User Guide

4.4: Regen Resistor (Optional)

4.4.1: (J3) XEL/XPL/XML
Mating Connector
Description
Manufacturer PN
Wire Size
Recommended Wire
Wire Insertion/Extraction Tool
Standard connector and tool are included in Connector Kits XEL-CK, XML-CK, and XPL-CK.
Pin Description
Pin Signal
1 Regen +
2 N/C
3 Regen -
4 N/C
5 Ground

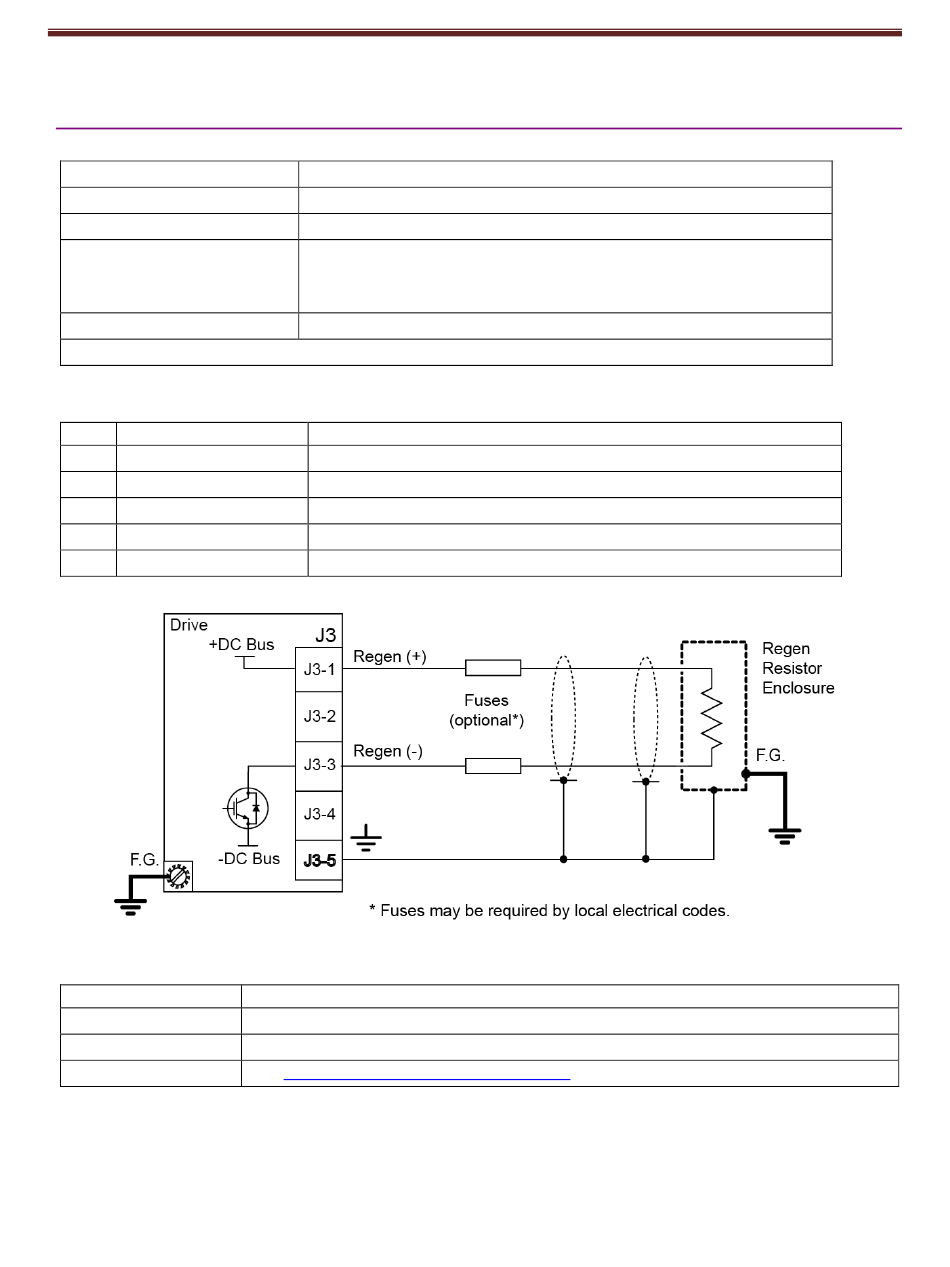

Regen Resistor Wiring Diagram
Regen Resistor Fusing
Recommended Fuses:
Regen Resistor
XTL-RA-03
XTL-RA-04
User Supplied
Copley Controls
Euro-style, 5 position, 5.0 mm pluggable male terminal block.
Wago: 721-605/000-044
22 - 12 AWG
18 A models: 14 AWG, 600 V
36 A and 40 A models: 12 AWG, 600 V
Shielded cable required for CE compliance
Wago: 231-131
Function
+ DC Bus to one side of regen resistor
No connection
Collector of regen transistor to one side of regen resistor
No connection
Enclosure ground and cable shield
Fuse type
Cooper Bussman KLM-8, Littelfuse KLKD008, Ferraz Shawmut ATM-10 or equivalent.
Cooper Bussman KLM-12, Littelfuse KLKD012, Ferraz Shawmut ATM-15 or equivalent.
See Regen Resistor Sizing and Configuration (p.
16-01344 Rev 06
134).
