6. OTHERS
[1] [2]
[5]
[2]
276
[3] [5] [4]
[4]
1050fs2762c
[1]
1050fs2763c
Field Service Ver3.0 Nov.2006

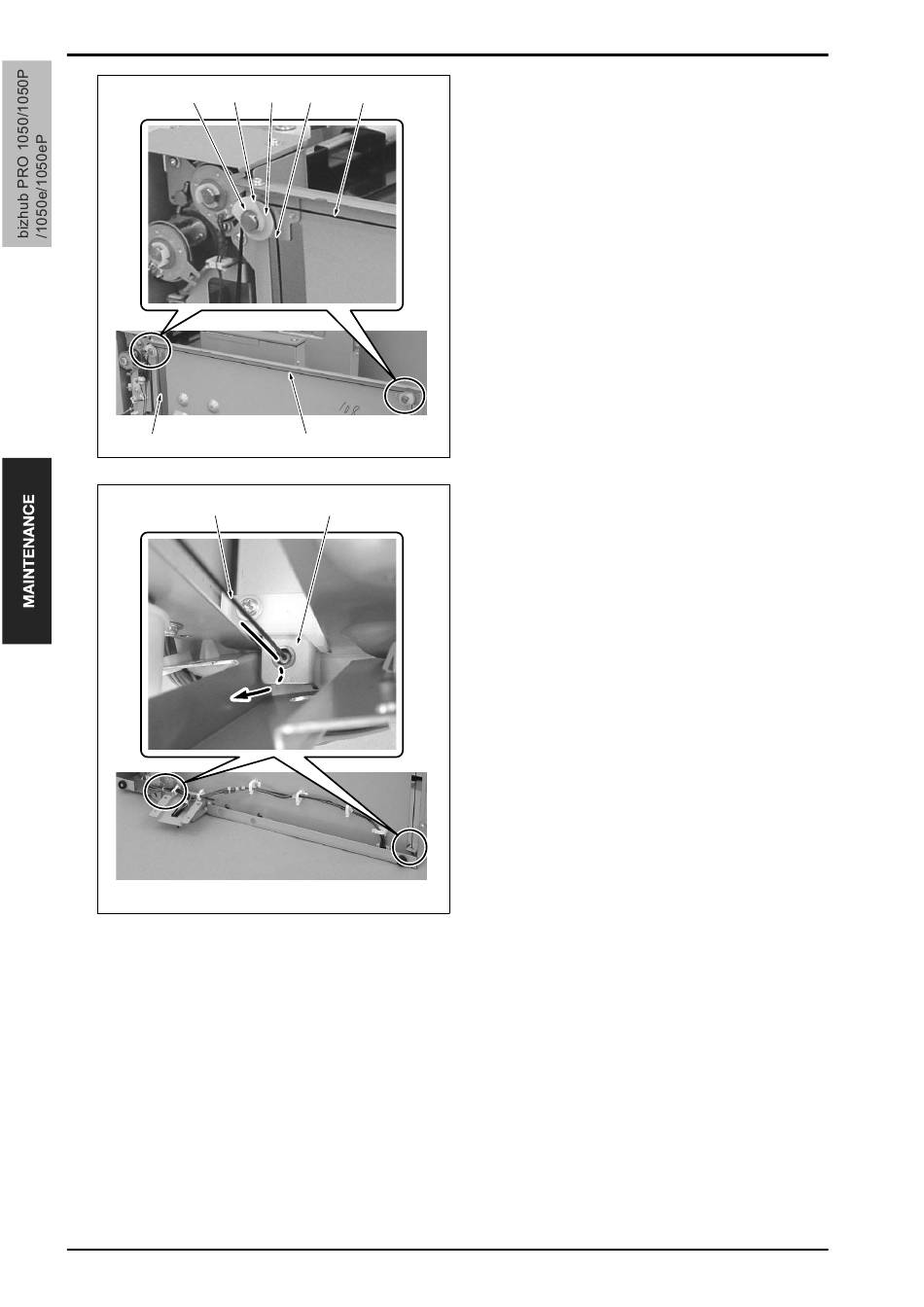

19. Remove the E-rings [1], one each provided at the
2 places and then remove the wire covers [2],
one each.
20. Remove the lift wires /Rr1 [4] and /Rr2 [5] from
the pulley [3].
NOTE
• When reinstalling it, make sure that the lift
wires /Rr1 [4] and /Rr2 [5] are contained in the
wire cover [2] and they are not crossing each
other.
21. Pull out from up to down the lift wires /Rr1 and /
Rr2 [2] from the arm [1] of the paper lift plate.
NOTE
• Be sure to pull out the lift wire gently and take
care that the lift wire does not get damaged
by the edges of the metal frame.
22.
Reinstall the above parts following the removal
steps in reverse.
NOTE
• The lift wire /Fr is grey in color and /Rr black
in color.
• Make sure that the lift wires do not cross
each other.
• After completion of installation, check the
paper lift plate to ensure it is level.
