1050P/1050eP
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIZHUB PRO 1050EP and is the answer not in the manual?

Questions and answers

Related Manuals for Konica Minolta BIZHUB PRO 1050EP

Summary of Contents for Konica Minolta BIZHUB PRO 1050EP

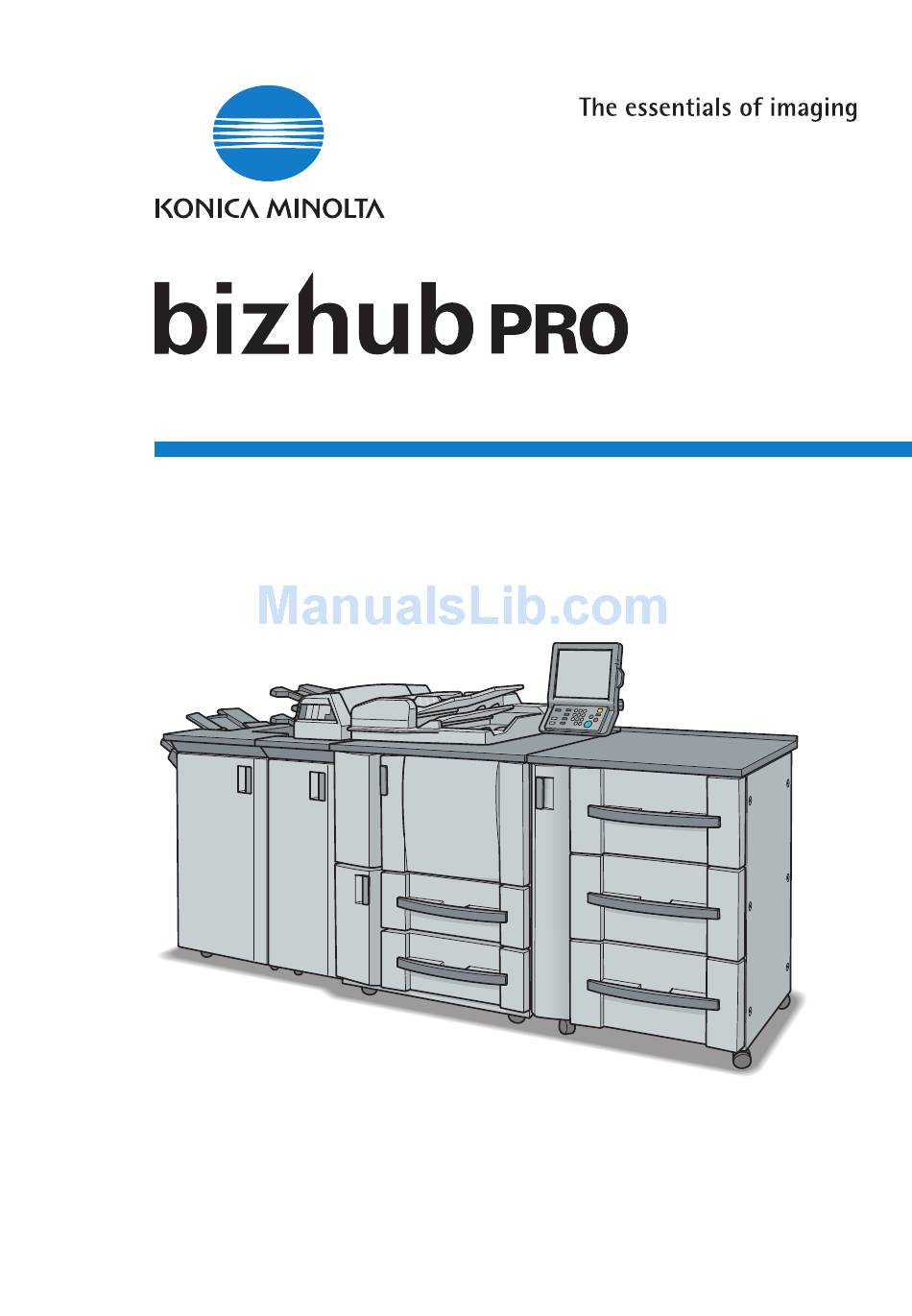

  • Page 1 1050P/1050eP User Manual...

  • Page 3: Table Of Contents

    Table of Contents Safety Information Safety Information ................1-3 1.1.1 Warning and Precaution Symbols ..........1-3 1.1.2 Meaning of Symbols ..............1-3 Regulation Notices ................. 1-10 1.2.1 Laser Safety ................. 1-10 1.2.2 Ozone Release ................1-12 1.2.3 Electromagnetic Interference ............1-12 1.2.4 For European Users ..............
  • Page 4 To Use Machine When Power Save LED Lights ......2-26 2.3.1 Auto Low Power ................2-27 2.3.2 Auto Shut-Off ................2-27 2.3.3 Using Power Save Manually ............2-28 2.3.4 When Weekly Timer Is Activated ..........2-30 Making User Authentication ............2-33 Displaying Screen for Operation Guide (Help Mode) ....2-36 2.5.1 To Display Help Screen ..............2-37 Adjusting Response Time of Touch Keys (Accessibility) ....2-38...
  • Page 5 Printing Operation Machine Status Screen ..............5-3 Features of the bizhub PRO 1050P/1050eP ........5-5 To Stop Printing ................5-7 Overview of Job List Screen ............5-9 Job Operation on Job List Screen ..........5-10 5.5.1 To Check/Control Reserved Jobs ..........5-10 5.5.2 To Display Output History ............
  • Page 6 Machine Status Screen Setting Machine Status Screen Setting Outlines .........7-3 Paper Setting Paper Setting Outlines ..............8-3 8.1.1 Setting Items in Paper Setting ............8-3 Recommended Setting of Paper Type/Weight .......8-9 Register Paper Type/Weight ............8-10 Delete Paper Type/Weight ..............8-16 Set Paper Size, Conditions, Air Assist Function for a Tray ....8-18 Change Paper Type/Weight Specified for a Tray ......8-28 Adjustment Machine Adjustment Outlines ............9-3...
  • Page 7 10.4 03 Select Printer Setting .............. 10-16 10.5 04 Spool ..................10-18 10.6 05 Interface Setting ..............10-19 11 Utility Screen Setting 11.1 Utility Screen Setting Outlines ............11-3 12 User Setting 12.1 01 System Setting ................12-3 12.1.1 01 Language Setting ..............12-3 12.1.2 02 Buzzer Setting .................
  • Page 8 13.4 03 Use Auth./Volume Track ............13-34 13.4.1 01 Authentication Method ............13-34 13.4.2 02 Volume Track .................13-39 13.4.3 03 User Authentication Set ............13-44 13.4.4 04 Non register/Output Set ............13-50 13.5 04 Network Setting ................13-51 13.5.1 01 Machine NIC Setting ..............13-51 13.5.2 02 Controller NIC Setting ............13-53 13.6 05 Printer Setting .................13-107...
  • Page 9 14.9 System Tab ..................14-38 14.9.1 Administrator Password ............. 14-38 14.9.2 Device Information ..............14-39 14.9.3 ROM Version ................14-40 14.9.4 Online Assistance ............... 14-41 14.9.5 Import/Export ................14-43 14.9.6 Maintenance ................14-44 14.9.7 E-Mail Alert ................. 14-46 14.10 Print Tab ..................14-47 14.10.1 Interface ..................
  • Page 10 15.4 User Authentication in Security Strengthen Mode .....15-10 15.4.1 To register a new user ..............15-11 15.4.2 To change a user data ..............15-16 15.4.3 To delete a user ................15-21 15.4.4 To change password by user .............15-24 15.5 HDD Store Function in Security Strengthen Mode .....15-27 15.6 Machine Manager Security Functions .........15-28 15.6.1...
  • Page 11 18 Machine Specifications 18.1 Main Body Specifications .............. 18-3 18.1.1 Main Body ..................18-3 18.2 Option Specifications ..............18-5 18.2.1 Paper Feeder Unit PF-701 ............18-5 18.2.2 Large Capacity Stacker LS-501/LS-502 ........18-5 18.2.3 In-Bin Stapler Finisher FS-503 ............. 18-6 18.2.4 Folding Unit FD-501 ..............

  • Page 12: Bizhub Pro 1050P/1050Ep

    ® NERGY Program NERGY TAR Program has been established to encourage the wide- spread and voluntary use of energy-efficient technologies that reduce energy consumption and prevent pollution. As an NERGY TAR Partner,we have determined that this product meets the NERGY TAR guidelines for ener- gy efficiency, based on the following features.
  • Page 13 ACKNOWLEDGEMENTS: KONICA MINOLTA, KONICA MINOLTA Logo, and The essentials of imaging are registered trademarks or trademarks of KONICA MINOLTA HOLDINGS, INC. PageScope and bizhub PRO are trademarks of KONICA MINOLTA BUSI- NESS TECHNOLOGIES, Inc. Microsoft, MS, Windows and MS-DOS are registered trademarks or trade- marks of Microsoft Corporation in the United States and / or other countries.

  • Page 14: Bizhub Pro 1050P/1050Ep

    OpenSSL Statement OpenSSL License Copyright © 1998-2000 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modifica- tion, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Page 15 Original SSLeay License Copyright © 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved. This package is an SSL implementation written by Eric Young (eay@crypt- soft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the fol- lowing conditions are aheared to.

  • Page 16: Bizhub Pro 1050P/1050Ep

    GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILI- TY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

  • Page 17: Safety Information

    Safety Information...

  • Page 19: Warning And Precaution Symbols

    Safety Information Safety Information Safety Information This section contains detailed instructions on the operation and maintenance of this machine. To achieve optimum utility of this device, all operators should carefully read and follow the instructions in this manual. Please read the following section before connecting the machine to the sup- ply.
  • Page 20 Safety Information Disassemble and modification WARNING • Do not attempt to remove the covers and panels which have been fixed to the product. Some products have a high-voltage part or a laser beam source inside that could cause an electrical shock or blindness.

  • Page 21: Safety Information 1

    Safety Information Power source CAUTION • The outlet must be near the equipment and easily accessible. Oth- erwise you can not pull out the power plug when an emergency oc- curs. Power plug WARNING • Do not unplug and plug in the power cord with a wet hand, as an electrical shock could result.
  • Page 22 Safety Information Installation WARNING • Do not place a flower vase or other con- tainer that contains water, or metal clips or other small metallic objects on this product. Spilled water or metallic objects dropped inside the product could result in a fire, electrical shock, or breakdown.
  • Page 23 Safety Information Actions in response to troubles WARNING • Do not keep using this product, if this product becomes inordinately hot or emits smoke, or unusual odor or noise. Immediately turn OFF the power switch, unplug the power cord from the power outlet, and then call your authorized service representative.
  • Page 24 Safety Information Before successive holidays CAUTION • Unplug the product when you will not use the product for long pe- riods of time. Paste pellet CAUTION • Do not put paste pellets close to fire. Paste pellets are flammable and easy to catch on fire. •...
  • Page 25 Safety Information Perfect binder CAUTION • Do not use the Perfect Binder without ventilation for an extended period of time. Ensure to ventilate the room on a regular basis. It is recommended that the Perfect Binder should be installed in a place with a local exhaust system.

  • Page 26: Regulation Notices

    Safety Information Regulation Notices 1.2.1 Laser Safety This product employs a Class 3B laser diode having maximum power of 15 mW and wavelength of 770 - 800 nm. This product is certified as a Class 1 laser product. Since the laser beam is concealed by protective housings, the product does not emit hazardous la- ser radiation as long as the product is operated according to the instructions in this manual.
  • Page 27 Safety Information For Finland, Sweden Users LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT 7 VAROITUS! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tav- alla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymät- tömälle lasersäteilylle. Tämä on puolijohdelaser. Laserdiodin suurin teho on 15 mW ja aallon- pituus on 770 - 800 nm.

  • Page 28: Ozone Release

    Safety Information 1.2.2 Ozone Release During print operation, a small quantity of ozone is released. This amount is not large enough to harm anyone adversely. However, be sure the room where the machine is being used has adequate ventilation, especially if you are printing a high volume of materials, or if the machine is being used con- tinuously over a long period.

  • Page 29: Caution Labels And Indicators

    Safety Information Caution Labels and Indicators The caution labels and indicators are attached to the machine areas, as shown below, where you are advised to pay special attention to avoid any dangerous situations or serious injury. (Entrance of the reversal output unit) (Right side of the fixing unit) (Top surface of the fixing unit) CAUTION...
  • Page 30 Safety Information CAUTION The paste tank unit is very hot. To avoid getting burned DO NOT TOUCH. Reminder Do not remove caution labels. Should any caution label or caution indi- cator be illegible due to soilage, be sure to clean it. If any caution label is removed or cleaning does not render the label legible, please contact your service representative.

  • Page 31: Installation Space

    Safety Information Installation Space Allow sufficient space for facilitating machine operation, changing parts, and periodic inspection. Leave an adequate space behind the machine to let hot air out from the rear fan. Details The whole machine may weigh approx. 1,043 kg at maximum, depending on the combination of options.
  • Page 32 Safety Information Unit: mm Main body + PF-701 + LS-501 + LS-502 Main body + PF-701 + FD-501 + FS-503 Main body + PF-701 + LS-502(×2) + FS-503 1-16 bizhub PRO 1050P/1050eP...
  • Page 33 Safety Information Unit: mm Main body + PF-701 + FD-501 + SD-501 + FS-503 Main body + PF-701 + FD-501 + SD-501 Main body + PF-701 + SD-501 bizhub PRO 1050P/1050eP 1-17...
  • Page 34 Safety Information Unit: mm Main body + PF-701 + SD-501 (side view) Main body + PF-701 + FD-501 + SD-501 + PB-501 Main body + PF-701 + SD-501 + PB-501 1-18 bizhub PRO 1050P/1050eP...
  • Page 35 Safety Information Unit: mm Main body + PF-701 + FD-501 + SD-501 + PB-501 Main body + PF-701 + LS-501 + PB-501 Main body + PF-701 + PB-501 bizhub PRO 1050P/1050eP 1-19...
  • Page 36 Safety Information Reminder Finisher tray of Finisher FS-503 gradually goes down while printed mate- rials output. DO NOT allow any object to interfere with the operation of the tray on the left side of the finisher, as any interference may cause damage to the finisher.

  • Page 37: Preparation For Use

    Preparation for Use...

  • Page 39: Machine Configuration

    Preparation for Use Preparation for Use Machine Configuration 2.1.1 External Machine Items Part name Description Touch Panel displays interactive operation screens. Sub power switch turns machine power ON/OFF when pressed. Control panel controls copier operations and displays messages as re- quired.
  • Page 40 Preparation for Use Part name Description Tray 1 (universal tray) is user-adjustable and holds 1,500 sheets from A3 to A5. Tray 2 (universal tray) is user-adjustable and holds 1,500 sheets from A3 to A5. Front door opens to allow removal of mishandled paper. Toner unit door opens to allow toner supply.

  • Page 41: Internal Machine Items

    Preparation for Use 2.1.2 Internal Machine Items Part name Description Total counter indicates the total number of copies and prints made. Conveyance fixing unit passes the paper through the drum unit, and fuses the toner onto the copy paper, and is to be withdrawn for re- moval of mishandled paper.

  • Page 42: Control Panel Layout

    Preparation for Use 2.1.3 Control Panel Layout Part name Description Sub Power Switch turns machine power on/off when pressed. Keypad enters numeric values. Stop ceases the printing sequence Start activates printing. Start LED lights in green when machine operation is available, and turns red if any operation cannot be started.
  • Page 43 Preparation for Use Part name Description Power Save enables temporary use of the machine when the Power Save LED is lit, or activates power-saving mode for times when the copier is inactive. Power Save LED lights when any power-saving mode is activated, ma- chine power is off due to the timer function, or user pass- word is required for use.

  • Page 44: Standard/Optional Equipment

    Preparation for Use 2.1.4 Standard/Optional Equipment Finisher FS-503 Finisher FS-503 + Folding Unit FD-501 Saddle Stitcher SD-501 + Folding Unit FD-501 Main Body + Paper Feeder Unit PF-701 Finisher FS-503 + Saddle Stitcher SD-501 + Folding Unit FD-501 Large Capacity Stacker LS-502 + Folding Unit FD-501 Finisher FS-503 + Large Capacity Stacker LS-501...
  • Page 45 Preparation for Use Perfect Binder PB-501 + Folding Unit FD-501 Perfect Binder PB-501 + Saddle Stitcher SD-501 + Folding Unit FD-501 Saddle Stitcher SD-501 Main Body + Paper Feeder Unit PF-701 Finisher FS-503 + Saddle Stitcher SD-501 Perfect Binder PB-501 + Saddle Stitcher SD-501 Perfect Binder PB-501 bizhub PRO 1050P/1050eP...
  • Page 46 Preparation for Use Large Capacity Stacker LS-502 Finisher FS-503 + Large Capacity Stacker LS-501 Saddle Stitcher SD-501 + Large Capacity STacker LS-501 Main Body + Paper Feeder Unit PF-701 Perfect Binder PB-501 + Large Capacity Stacker LS-501 Large Capacity Stacker LS-502 + Large Capacity STacker LS-501 Finisher FS-503 + Large Capacity Stacker LS-501 (×2)

  • Page 47: Finisher Fs

    Preparation for Use 2.1.5 Finisher FS-503 Part name Description Finisher door opens to the internal Finisher to allow clearing mishan- dled paper and replenishing staples. Primary (Main) tray holds sets output in Non-sort mode, Collated mode (off- set), or Staple mode. Secondary (Sub) tray holds sets output in Non-sort mode.

  • Page 48: Folding Unit Fd-501

    Preparation for Use 2.1.6 Folding Unit FD-501 FD-501 FD-503 Part name Description Lower cover feed tray holds cover sheets. Lower cover feed tray hold cover sheets to fix the position. guide plates Upper cover feed tray holds cover sheets. Upper cover feed tray hold cover sheets to fix the position.
  • Page 49 Preparation for Use Part name Description Inlet lever opens leftward to remove mishandled paper. Post inserter convey- (behind the inlet lever) opens leftward to remove mishan- ance lever dled paper. Trash basket holds waste paper punched out. Upper/Lower convey- opens rightward to remove mishandled paper. ance lever Folding unit handle withdraws the unit to allow removal of mishandled paper.
  • Page 50 Preparation for Use Part name Description Upper/Middle/Lower can be turned clockwise to ease removal of mishandled knob paper. Left side lever (right/ opens leftward to remove mishandled paper. left) Upper lever opens upward to remove mishandled paper. Conveyance knob/2 can be turned clockwise to ease removal of mishandled cover paper.
  • Page 51 Preparation for Use 2.1.7 Large Capacity Stacker LS-501/LS-502 Part name Description Secondary (Sub) tray holds sets output in Non-sort mode. Top cover handle (left) opens to remove mishandled paper. Top cover handle opens to remove mishandled paper. (right) Paper removal indica- lights while the stacker goes down in order to allow takeout of printed sheets.
  • Page 52 Preparation for Use Part name Description Paper removal button is pressed to take out printed sheets from the stacker. Large capacity stacker opens to take out printed sheets from the stacker. door Outlet cover lever opens to remove mishandled paper. Secondary (Sub) tray opens to remove mishandled paper.

  • Page 53: Saddle Stitcher Sd-501

    Preparation for Use 2.1.8 Saddle Stitcher SD-501 bizhub PRO 1050P/1050eP 2-17...

  • Page 54: External View

    Preparation for Use External View Part name Description Secondary (Sub) tray holds non-sorted sets output from Saddle Stitcher. of Saddle Stitcher SD-501 Multi-folding mode opens the cover to remove mishandled paper when using outlet cover handle multi-folding mode. Multi-folding mode holds sets output in multi-folding mode.
  • Page 55 Preparation for Use Part name Description Outlet conveyance le- opens downward to remove mishandled paper. bizhub PRO 1050P/1050eP 2-19...

  • Page 56: Perfect Binder Pb-501

    Preparation for Use 2.1.9 Perfect Binder PB-501 2-20 bizhub PRO 1050P/1050eP...

  • Page 57: Internal View

    Preparation for Use Internal View Part name Description Glue hopper cover opens for supply of glue pellet. Secondary (Sub) tray holds sets output without being processed by the perfect binder. Front door of Perfect opens for manual binding operation or to remove mishan- Binder PB-501 dled paper and waste trimmings.
  • Page 58 Preparation for Use Part name Description Cover control releasing can be turned clockwise to remove cover sheet from the knob binding unit. Binding unit releasing can be turned downward to remove cover sheet from the knob binding unit in the top position. Cover fixing plate re- can be turned clockwise for the left knob and anticlock- leasing knob (right/left)

  • Page 59: Turning On/Off The Power Switch

    Preparation for Use Turning On/Off the Power Switch The machine has two power switches, namely, main power switch and sub power switch. 2.2.1 To Turn On the Power Turn ON the main power switch. The main power switch is located inside the machine.
  • Page 60 Preparation for Use A few seconds after the Wake-up Screen appears in the touch panel, the Machine Status Screen with four types of warm-up image will be displayed in succession for approx. 6.0 minutes. Details You can set reserve jobs while the machine is warming up. Touch the touch panel to change the Machine Status Screen with warm- up image to the screen with the job list, then check that the message “Ready to print reserve”...

  • Page 61: To Turn Off The Power

    Preparation for Use 2.2.2 To Turn Off the Power Turn OFF the sub power switch. The sub power switch is located on the right side of the control panel. The touch panel and all the LEDs on the control panel other than the Power LED will go out, and the Power LED will turn red from green.

  • Page 62: To Use Machine When Power Save Led Lights

    Preparation for Use To Use Machine When Power Save LED Lights If you find the Power Save LED lit on the control panel, the machine cannot be operated due to the Power Save or Weekly Timer function. Press [Power Save] on the control panel. If Power Save has been activated, the machine will become available for printing operation.

  • Page 63: Auto Low Power

    Preparation for Use 2.3.1 Auto Low Power This function conserves energy by lowering the power consumption to 413W or less in standby mode. Auto Low Power activates automatically after a specified period (initially 15 minutes) of machine inactivity with the Power Save LED lit, touch panel gone off, and all other LEDs except Start LED on the control panel turned off.

  • Page 64: Using Power Save Manually

    Preparation for Use 2.3.3 Using Power Save Manually Follow the procedure below to operate Power Save (Low Power or Shut-Off) function manually. Note The machine is initially set to activate the Low Power function manually. For details, refer to “01 Power Save Setting” on page 13-6. Press [Power Save] for one second or longer, then release it.
  • Page 65 Preparation for Use Details Be sure to press [Power Save] for one second or longer, otherwise the following message will be displayed and the Shut-Off (Low Power) mode will not be activated. Press POWER SAVER more than one second, then release it for shut off mode Press POWER SAVER continuously more than one second for low power mode Power Save will be activated.

  • Page 66: When Weekly Timer Is Activated

    Preparation for Use 2.3.4 When Weekly Timer Is Activated The Weekly Timer function turns a machine on and off at the time specified by the machine manager. Note For details of the Weekly Timer function. For details, refer to “03 Weekly Timer Setting”...
  • Page 67 Preparation for Use Details The machine power will be turned off automatically after 5 minutes from this state if a password is not entered. Input copy time 0 hour(s) 05 minute(s) If the above message is displayed, proceed to step 3. Enter the Timer Interrupt password, then press [Start].
  • Page 68 Preparation for Use Set the minute for the interrupt use, then press [Start]. Enter a 2-digit minute (ex. 07 for 7 minutes) using the control panel keypad. (00 ~ 59) Input copy time 3 hour(s) 07 minute(s) Press [Start]. Details Entering a number smaller than 5 will set the minute at 5.

  • Page 69: Making User Authentication

    Preparation for Use Making User Authentication This machine can prohibit storing data into the HDD or recalling stored data until the user name, user password, section name, and/or section password specified by the machine manager are verified. Print quantity limit for each section can also be set. When [STORE] or [RECALL] tab is touched, one of the following User Au- thentication Screen will be displayed according to the authentication setting.
  • Page 70 Preparation for Use Printing will be available by the following procedure. Enter the user name, user password, section name, and/or section password, as required. Touch the desired item key to display the keypad screen. Enter your user name (max. 64 characters), user password (max. 64 characters), section name (max.
  • Page 71 Preparation for Use When machine operation is completed, press [Access]. The initial state will be restored, with the User Authentication Screen displayed on the touch panel. bizhub PRO 1050P/1050eP 2-35...

  • Page 72: Displaying Screen For Operation Guide (Help Mode)

    Preparation for Use Displaying Screen for Operation Guide (Help Mode) The Help Screen provides you with the information about toner and paper supply, and control panel and touch panel key operation. Help Screen comprises the following menu items. 01 Print provides information on function and operation of the keys concerning the print mode.

  • Page 73: To Display Help Screen

    Preparation for Use 2.5.1 To Display Help Screen Pressing [Help] when Machine Status Screen is displayed: Top Page of the Help Screen This screen appears when [Top Menu] on the subordinate Help Screen is touched. bizhub PRO 1050P/1050eP 2-37...

  • Page 74: Adjusting Response Time Of Touch Keys (Accessibility)

    Preparation for Use Adjusting Response Time of Touch Keys (Accessibility) This machine can sets the desired interval between touching the screen key and machine response in advance. Pressing the Accessibility key on the control panel will select this interval, so that the machine will respond to the touch key operation only when the key is kept touched for a specified period of time.
  • Page 75 Preparation for Use To deactivated this function, press [Accessibility] for one second or longer. The Accessibility LED goes off, and normal response time will be re- stored in touch key operation. bizhub PRO 1050P/1050eP 2-39...
  • Page 76 Preparation for Use 2-40 bizhub PRO 1050P/1050eP...

  • Page 77: Paper Information

    Paper Information...
  • Page 79 Paper Information Paper Information Paper Information This machine is equipped with the following trays for loading paper. - Tray 1 and 2 (Main body trays) - Tray 3, 4, and 5 ( Paper Feeder Unit PF-701) Also, the following equipment is provided for conveying/delivering printed sheets.

  • Page 80: Paper Weight

    Paper Information 3.1.1 Paper Weight Paper Trays Weight Tray 1 and 2 (Main body trays) 40 ~ 244 g/m Tray 3 and 5 (PF-701 trays) 40 ~ 244 g/m Tray 4 (PF-701 tray) 40 ~ 300 g/m Equipment Weight 60 ~ 244 g/m Finisher •...

  • Page 81: Tray/ Exit Tray Capacity

    Paper Information 3.1.2 Tray/ Exit Tray Capacity Paper Trays Capacity Tray 1 and 2 (Main body trays) 1,500 sheets (80 g/m paper) Tray 3, 4 and 5 (PF-701 trays) 2,000 sheets (80 g/m paper) Equipment Capacity Unlimited Finisher Secondary (sub) Max.
  • Page 82 Paper Information Equipment Capacity 2 : 50 or 49 sheets +1 (200 g/m 2 Cover) Saddle stitcher Fold & Staple / • 50 ~ 81 g/m 2 : 30 or 29 sheets +1 (200 g/m 2 Cover) fine paper) • 82 ~ 91 g/m 2 : 20 or 19 sheets +1 (200 g/m 2 Cover) •...
  • Page 83 Paper Information Details Using Folding or Z-fold, the finished set can be delivered to any tray of Finisher primary (main) tray, secondary (sub) tray, and secondary (sub) tray on the left side of Folding unit. Using Letter fold-in, Letter fold-out, Double parallel, or Gate mode, the finished set will be delivered only to the secondary (sub) tray on the left side of the Folding unit.

  • Page 84: Paper Size

    Paper Information 3.1.3 Paper Size Paper Trays Available Sizes Tray 1 to 5 • STD size: A3, B4, F4, A4, A4R, B5, B5R, A5, 12"×18", 11"×17", 8.5"×14", 8.5"×11" Available to detect 5.5”×8.5” instead of A5, 8.5"×11"R instead of A4R, 8K instead of B4, 16K instead of B5, 16KR instead of B5R •...
  • Page 85 Paper Information Equipment Available Sizes Saddle stitcher Saddle stitcher A3, B4, A4R, B5R, F4*, 12"×18", 11"×17", 8.5"×14", tray 8.5"×11"R, 8K, 16KR, Wide size paper (Max. 324mm × 460mm) Multi-folding A4R, 8.5"×11"R mode tray Secondary (sub) A3, B4, A4, A4R, B5, B5R, A5, A5R, B6R, F4*, 12"×18", tray of Saddle 11"×17", 8.5"×14", 8.5"×11", 8.5"×11"R, 5.5"×8.5", stitcher,...

  • Page 86: To Store Paper

    Paper Information 3.1.4 To Store Paper - Store paper in a cool, dry area. Using damp paper may cause a paper misfeed. - Keep partially used packages tightly wrapped during storage. - Do not place paper packages vertically to store. - Paper curl due to the vertical storage may cause a paper misfeed.

  • Page 87: Supplies & Handling

    Supplies & Handling...

  • Page 89: Loading Paper

    Supplies & Handling Supplies & Handling Loading Paper A paper indicator is shown on each tray key of the Machine Status Screen to indi- cate the paper level of the tray. Six levels are provided: When paper in a tray becomes empty, the indicator blinks on the tray key.

  • Page 90: Loading Paper In Tray

    Supplies & Handling 4.1.1 Loading Paper in Tray Withdraw the tray to be supplied with paper. Details Be sure that the machine is powered ON before withdrawing the tray. Only one tray can be withdrawn at a time. Reminder Do not withdraw the tray forcibly; otherwise you may be injured. Open the paper feed roller.
  • Page 91 Supplies & Handling Place paper on the tray with any curl turning up, then move the side guide plates and front edge guide to the edge of the paper. Paper holding lever Tray 1 and 2 Limit lever Paper holding lever Tray 3, 4, and 5 Limit lever Load paper aligning it to the paper feed roller side of the tray.
  • Page 92 Supplies & Handling Push in the tray until it locks into place. The indicator on the Machine Status Screen will change. Reminder Do not bump the tray into the main body; otherwise machine trouble may be caused. bizhub PRO 1050P/1050eP...

  • Page 93: Loading Cover Paper In Cover Feeding Tray Of Perfect Binder Pb-501

    Supplies & Handling 4.1.2 Loading Cover Paper in Cover Feeding Tray of Perfect Binder PB-501 Withdraw the cover feeding tray. Open the paper feed roller. Load cover paper in the tray. Place cover paper faceup, with the top to be rear in the tray. When making the book bound on the right side, the front side in the tray will be the top.
  • Page 94 Supplies & Handling Reminder Do not load above the limit level, and carefully load the paper to be seat- ed under the paper holding lever at the air . Align the side guide plates and rear edge guide to cover paper. Press the release knob of the front side guide plate to move the side guide plates, and also move the rear edge guide to the edge of cov- er paper.

  • Page 95: Loading Tabbed Sheets In Tray

    Supplies & Handling 4.1.3 Loading Tabbed Sheets in Tray Tabbed sheets can be used if the tray paper size is specified as tabbed sheets in the Tray Setting. Follow the procedure below to supply the tray with tabbed sheets. Example: 9 Tabbed sheets loaded in postition for 3 finished sets. Loaded in Tray Loaded in Tray 1st TAB...
  • Page 96 Supplies & Handling Details The machine can be set to discharge the oddments of a set of tabbed sheets automatically if the tabbed original count is less than the number of tabbed sheets in a set. See the next page for detail. Move the side guide plates to the edge of the paper.
  • Page 97 Supplies & Handling Details Needless Tab Paper Exit This function sets the machine to discharge the oddments of a set of tabbed sheets automatically if the tabbed original count is less than the number of tabbed sheets in a set, so that the next print job can be started afresh with the 1st tabbed sheet.

  • Page 98: Adding Toner

    Supplies & Handling Adding Toner This machine is equipped with a toner storage for keeping a bottle stock of toner. When toner supply from the toner bottle becomes low, the message “Toner Bottle can be exchanged” will be displayed on the touch panel. When toner supply runs out from both toner bottle and toner storage, the message “Toner will be used up / Exchange Toner Bottle”...
  • Page 99 Supplies & Handling Open the toner unit door. Pull the toner unit lever forward to withdraw the bottle holder until it stops. Remove the empty toner bottle. Shake the new toner bottle several times to loosen toner. bizhub PRO 1050P/1050eP 4-13...
  • Page 100 Supplies & Handling Remove the cap from the new toner bottle, then put it to the used one. Used Set the new toner bottle into the bottel holder. Details Be sure to set the label of the toner bottle upward, then fit its bottom to the hollow part of the bottle holder;...

  • Page 101: Inserting A New Staple Cartridge Into Finisher Fs-503

    Supplies & Handling Inserting a New Staple Cartridge into Finisher FS-503 When the staple cartridge of the Finisher is empty, the Cartridge indicator lights in red in the option status area of the Machine Status Screen. Follow the procedure below to set the staple roll into the staple cartridge. Open the Finisher door.
  • Page 102 Supplies & Handling Remove the staple cartridge. Pull down the handle of the staple cartridge to draw it downward. Set the staple roll into the staple cartridge. Open the staple cartridge cover, then set the staple roll into the cartridge. Close the cover, then remove the lock tape pulling it in horizontal direction.
  • Page 103 Supplies & Handling Return the stapler unit to its original position. Close the Finisher door. bizhub PRO 1050P/1050eP 4-17...

  • Page 104: Inserting A New Staple Cartridge Into Saddle Stitcher

    Supplies & Handling Inserting a New Staple Cartridge into Saddle Stitcher SD-501 When the staple cartridge of the Saddle Stitcher SD-501 is empty, the Car- tridge indicator lights in red in the option status area of the Machine Status Screen. If printing job is in progress, a message will be displayed on the screen.
  • Page 105 Supplies & Handling Details The machine is mounted with two staple cartridges. Be sure to remove the empty one. Set the new cartridge. Reminder Check that the top side of the staple cartridge is up, otherwise it cannot be inserted. Close the left side door of the Saddle Stitcher.

  • Page 106: Adding Paste Pellet To Perfect Binder Pb-501

    Supplies & Handling Adding Paste Pellet to Perfect Binder PB-501 If the Perfect Binder PB-501 is out of paste pellets, the machine warmup cannot be completed with the following message displayed on the Machine Status Screen, and consequently the binding operation is unavailable. When the paste pellets run out during the binding operation, the machine stops the job immediately and the binding operation also becomes unavail- able.
  • Page 107 Supplies & Handling 7 CAUTION If you open the paste hopper cover during the binding operation, a pa- per jam may be caused due to the sudden halt of the machine. Never open the paste hopper cover while the binding operation is in process. Be sure to use the paste GC-501 exclusively provided for Perfect Bind- er PB-501.
  • Page 108 Supplies & Handling Supply the paste hopper with paste pellet. Reminder Do not add the paste pellet above the limit level indicated inside the paste hopper. Close the paste hopper cover. 4-22 bizhub PRO 1050P/1050eP...

  • Page 109: Empty Trash Basket Of Fd-501 Folding Unit

    Supplies & Handling Empty Trash Basket of FD-501 Folding Unit When the trash basket becomes full, the Punch Dust indicator lights in red in the option status area of the Machine Status Screen. Follow the procedure below to empty the trash basket. Open the Finisher door.
  • Page 110 Supplies & Handling Empty the trash basket. Return the trash basket to its original position. Close the Finisher door securely. 4-24 bizhub PRO 1050P/1050eP...

  • Page 111: Empty Dust Box Of Saddle Stitcher Sd-501

    Supplies & Handling Empty Dust Box of Saddle Stitcher SD-501 When the dust box of the Saddle Stitcher SD-501 becomes full, the Trim Dust indicator lights in red in the option status area of the Machine Status Screen. Follow the procedure below to empty the dust box. Withdraw the dust box.
  • Page 112 Supplies & Handling Open the top cover of the dust box. Take waste paper out of the dust box. Close the top cover of the dust box, then return it to its original position. Reminder Be sure to return the dust box to its original position, otherwise the trim- ming function cannot be performed.

  • Page 113: Empty Dust Box Of Perfect Binder Pb-501

    Supplies & Handling Empty Dust Box of Perfect Binder PB-501 When the dust box of the Perfect Binder PB-501 becomes full, the Trim Dust indicator lights in red in the option status area of the Machine Status Screen. If printing job is in progress, a message will be displayed on the Copy Screen. Follow the procedure below to empty the dust box.
  • Page 114 Supplies & Handling Withdraw the dust box. Take waste paper out of the dust box. Return the dust box to its original po- sition. Then close the front door of the per- fect binder. 4-28 bizhub PRO 1050P/1050eP...

  • Page 115: Removing Perfect-Bound Sets From Perfect Binder Pb-501

    Supplies & Handling Removing Perfect-Bound Sets from Perfect Binder PB-501 To take out the books stacked in the rear side of the perfect binder tray, press the feeding button to move them forward. Open the perfect binder tray cover. Details The perfect binder tray cover will not open while the machine operation is in process, and also the feeding button...

  • Page 116: Removing Finished Sets From Large Capacity Stacker

    Supplies & Handling 4.10 Removing Finished Sets from Large Capacity Stacker LS-501/502 The Large Capacity Stacker LS-501/502 can hold 5,000 output sheets (2,000 sheets for B5 and A5) at maximum. Follow the procedure below to take out paper from the stacker. Press the Paper removal button.
  • Page 117 Supplies & Handling Remove the sheets from the car- riage. The stacker unit can be removed from the carriage. Return the carriage to its original po- sition. Close the large capacity stacker door. Reminder When returning the stacker unit to its original position, fit the two projections of the carriage to the two holes of the stacker unit, otherwise the carriage...
  • Page 118 Supplies & Handling 4-32 bizhub PRO 1050P/1050eP...

  • Page 119: Printing Operation

    Printing Operation...

  • Page 121: Machine Status Screen

    Printing Operation Printing Operation Machine Status Screen The Machine Status Screen displays when machine operation becomes available after warm-up, or when any printing job has been completed. Part name Description JOB LIST tab is touched to display the Job List Screen. MACHINE tab is touched to display the Machine Status Screen, and blinks in red when machine trouble occurs.
  • Page 122 Printing Operation Part name Description Adjustment key is touched to make adjustments of the machine and option- al equipment Paper Set key is touched to make paper setting for each tray. Maintenance & supply lights in red when staple supply is required or when trash indicator basket is full.

  • Page 123: Features Of The Bizhub Pro 1050P/1050Ep

    Printing Operation Features of the bizhub PRO 1050P/1050eP Auto Low Power Automatically lowers the power after a specified period of machine inac- tivity. Auto Reset Automatically resets to the default settings after a specified period of ma- chine inactivity. Auto Shut-Off Automatically shuts off the power after a specified period of machine in- activity.
  • Page 124 Printing Operation Output for Finisher FS-503 with Folding Unit FD-501 Installed: Punch, Folding (Z-fold, Letter fold-in, Letter fold-out, Double parallel, Gate, Folding), Cover sheet feeding For details, refer to “Setting Output Methods” on page 6-3. Output for Machine with Saddle Stitcher SD-501 Installed: Fold &...

  • Page 125: To Stop Printing

    Printing Operation To Stop Printing Follow the procedure below to stop printing. Note This procedure is effective only for the job in progress. To stop the jobs on standby, operate on the Job List Screen. For details, refer to “Job Op- eration on Job List Screen”...
  • Page 126 Printing Operation Touch [Stop Job] to cancel the job, or touch [Continue] to complete the job. Reminder Touching [Stop Job] will delete all the data. bizhub PRO 1050P/1050eP...

  • Page 127: Overview Of Job List Screen

    Printing Operation Overview of Job List Screen The Job List Screen allows you to check/operate the following items. - Reserved job - Output History - Incomplete - Suspended (The letters on the key turn red if any suspended job remains.) - Spool Follow the procedure below to display the Job List Screen.

  • Page 128: Job Operation On Job List Screen

    Printing Operation Job Operation on Job List Screen 5.5.1 To Check/Control Reserved Jobs Use this function to display all the reserve jobs as a list. The list includes following information. - Job No.: consecutive number of print job - User Name: user who transmitted the job - Mode: Printer - Status: Printing or Reserved (current status of the job) - Sheets: max.
  • Page 129 Printing Operation Select the desired job, then select the job operation. To specify the next job to be printed: Touch to highlight the desired reserve job key, then touch [Print Next]. The highlighted reserve job will be moved just under the current print job.

  • Page 130: To Display Output History

    Printing Operation 5.5.2 To Display Output History Use this function to display output history as a list. The list includes following information. - Job No.: consecutive number of print job - User Name: user who transmitted the job - Mode: Printer - Sheets: max.

  • Page 131: To Check Incomplete Jobs

    Printing Operation 5.5.3 To Check Incomplete Jobs Use this function to display incomplete jobs as a list. The list includes following information. - Job No.: consecutive number of print job - User Name: user who transmitted the job - Cause: Memory Full, Cancel, etc.(cause for which the job was not com- pleted) Follow the procedure below to check the settings of incomplete jobs.

  • Page 132: To Check/Operate Suspended Jobs

    Printing Operation 5.5.4 To Check/Operate Suspended Jobs Use this function to display all suspended jobs as a list. The list includes following information. - Job No.: consecutive number of print job - User Name: user who transmitted the job - Mode: Printer - Status: Suspended or Printing (current status of the job) - Sheets: max.
  • Page 133 Printing Operation Select the desired job, then select the job operation. To output suspended job: Touch to highlight the desired job key, then touch [Release]. The selected job will be output according to the current printing order. Details To check the printing order, touch [Reserved Job] to display the reserved job list.

  • Page 134: To Check/Control Spool Jobs

    Printing Operation 5.5.5 To Check/Control Spool Jobs Use this function to display spool jobs as a list. The list includes following information. - Job No.: consecutive number of print job - Mode: Wait for RIP or Receiving (current status of the spool job) Follow the procedure below to change the output order or delete the spool jobs.
  • Page 135 Printing Operation To change the order of jobs: Touch to highlight the desired job key, then touch [Priority]. The highlighted job will be advanced by one in printing order unless the job preceding the selected one is already in progress. Details If printing order cannot be changed for the selected job, a message will be displayed for information.

  • Page 136: About Screens Of The [Store]/[Recall] Tabs

    Printing Operation About Screens of the [STORE]/[RECALL] Tabs Screens of the [STORE/RECALL] tabs include such screens on which to specify a storage location as the folder list screen (Personal Folder), the box list screen (Personal Folder/Public Folder), and the file list screen. There are also screens to create new folders (Personal Folder), new boxes (Personal Folder/Public Folder) screens to specify a storage location as a Box No., or the Direct Call input screen.
  • Page 137 Printing Operation About common keys on the list screens Here are the common keys on the folder list screen, the box list screen and the file list screen. This is displayed on a Folder or a Box to which a password is configured. [Clear All] Touching this key deselects what you had selected, and you are brought back to the first screen of the [STORE]/[RECALL] tab.

  • Page 138: Registering A Personal Folder

    Printing Operation 5.6.1 Registering a Personal Folder A Personal Folder is registered (created) for each user, where you manage data you want to STORE/RECALL. Register a Personal Folder in the follow- ing steps. Details At maximum, 1000 Personal Folders can be registered. Select the [STORE] tab.
  • Page 139 Printing Operation Select [Personal Folder]. Touch [New Register]. bizhub PRO 1050P/1050eP 5-21...
  • Page 140 Printing Operation Touch [Folder Name Input] to display the character input screen. Input any folder name. Details Input a folder name within 64 alphanumeric characters or symbols. Reminder The following words cannot be used as a folder name irrespective of the case.
  • Page 141 Printing Operation If you configure a password for a folder, touch [Password Input] to dis- play the character input screen. Input any password. Details Input a password within 64 alphameric characters or symbols. Reminder The input password is shown by asterisks (1). Be sure to keep a record of the password.
  • Page 142 Printing Operation Touch [OK]. The box list screen appears. If you register only a folder, touch [Cancel] to go to the step 9. If you register a box also, go to the step 4. For details, refer to “Creating a Box (Personal Folder/Public Folder)” on page 5-30. 5-24 bizhub PRO 1050P/1050eP...
  • Page 143 Printing Operation Make sure that the folder name you registered on the folder list is dis- played. If you want to register multiple Personal Folders, return to the step 4 and re- peat the procedures. bizhub PRO 1050P/1050eP 5-25...

  • Page 144: Deleting A Personal Folder

    Printing Operation 5.6.2 Deleting a Personal Folder To delete a registered personal folder, follow the steps below. Select the [RECALL] tab. Touch [Personal Folder]. 5-26 bizhub PRO 1050P/1050eP...
  • Page 145 Printing Operation Select the folder you want to delete. Touch [Folder Delete]. If a password is configured for the folder, the password input screen ap- pears. If a password is not configured for the folder, a screen appears and confirms you whether to delete the folder.
  • Page 146 Printing Operation Enter the password and touch [OK]. The confirmation screen appears and confirms you whether to delete the folder. Touch [Yes]. The folder is deleted and the folder list screen (Personal Folder) ap- pears. 5-28 bizhub PRO 1050P/1050eP...
  • Page 147 Printing Operation Confirm that the folder is deleted. Details When you want to delete those Personal Folders or Personal Boxes with unknown password, your administrator can delete such folders. Your administrator cannot have access to boxes in a Personal Folder with unknown password.

  • Page 148: Creating A Box (Personal Folder/Public Folder)

    Printing Operation 5.6.3 Creating a Box (Personal Folder/Public Folder) The print data are managed in boxes created in the folders of the internal HDD (Personal Folder/Public Folder). Create a box by the following steps. Details At maximum, 1000 Boxes can be registered. Select the [STORE] tab.
  • Page 149 Printing Operation Select a folder in which you create a box. When you select a Personal Folder Touch [Personal Folder], and select any folder from the list. Touch [OK]. If a password is configured for the folder, the Password input screen appears.
  • Page 150 Printing Operation Touch [New Box]. In case of Personal Folder In case of Public Folder 5-32 bizhub PRO 1050P/1050eP...
  • Page 151 Printing Operation Touch [Box Name Input] to display the character input screen. Enter any box name. If you do not register a box name, the box umber becomes the box name. Details Input a Box Name within 20 characters in alphameric characters and signs.
  • Page 152 Printing Operation Details Input a password within 8 alphameric characters and symbols. Eight asterisks (1) are displayed regardless of the number of characters you input. Be sure to keep a record of the password. When you change the box number, touch [Box No. Input] to display the character input screen.
  • Page 153 Printing Operation Touch [OK]. The file list screen appears. Make sure that the box name you registered on the box list is dis- played. In case of Personal Folder bizhub PRO 1050P/1050eP 5-35...
  • Page 154 Printing Operation In case of Public Folder Details If you have not registered a box name, the box number becomes the box name, and the box number will be displayed on the list. If you want to register multiple boxes, return to the step 4 and repeat the pro- cedures.

  • Page 155: Deleting A Box (Personal Folder/Public Folder/Secure Folder)

    Printing Operation 5.6.4 Deleting a Box (Personal Folder/Public Folder/Secure Folder) Delete a box in the following steps. Select the [RECALL] tab. Select a folder. When you select a Personal Folder Touch[Personal Folder] to display the list. Select the folder contain- ing the box you want to delete, and touch [OK].
  • Page 156 Printing Operation When you select a Public Folder Touch [Public Folder]. When you select a Secure Folder Touch [Secure Folder]. 5-38 bizhub PRO 1050P/1050eP...
  • Page 157 Printing Operation Select the box you want to delete. When you select a Personal Folder When you select a Public Folder bizhub PRO 1050P/1050eP 5-39...
  • Page 158 Printing Operation When you select a Secure Folder Touch [Box Delete]. When you select a Personal Folder 5-40 bizhub PRO 1050P/1050eP...
  • Page 159 Printing Operation When you select a Public Folder When you select a Secure Folder If a Password is configured for the box, the Password input screen appears. If a Password is not configured for the box, a screen appears and confirms you whether to delete the folder.
  • Page 160 Printing Operation Enter the password and touch [OK]. The confirmation screen appears and confirms you whether to delete the box. Touch [Yes]. The box is deleted, and the box list screen appears. 5-42 bizhub PRO 1050P/1050eP...
  • Page 161 Printing Operation Confirm that the box is deleted. When you select a Personal Folder When you select a Public Folder bizhub PRO 1050P/1050eP 5-43...
  • Page 162 Printing Operation When you select a Secure Folder Details As for Public Boxes and Secure Boxes, your administrator can delete such boxes even when password is unknown. 5-44 bizhub PRO 1050P/1050eP...

  • Page 163: Output From The Internal Hdd

    Printing Operation 5.6.5 Output from the Internal HDD Print data stored on the internal HDD with the [STORE] tab or secure print jobs transmitted from a computer can be output using the [RECALL] tab. Details For more information on output from secure folder, refer to the User’s Guide (Printer).
  • Page 164 Printing Operation Specify the folder in which the data you output are stored. When you select a Personal Folder Touch [Personal Folder] to display the list. Select any folder and touch [OK]. When you select a Public Folder Touch [Public Folder]. 5-46 bizhub PRO 1050P/1050eP...
  • Page 165 Printing Operation When you select Secure Folder Touch [Secure Folder]. Details A password may be configured for the Personal Folder. In that case, the password input screen appears. Enter the password. If you know the target file, touch [Direct Call] to specify the location di- rectly.
  • Page 166 Printing Operation When you select a Public Folder When you select a Secure Folder Details If a password is configured for the box, the Password input screen ap- pears. Enter the password. Touch [No. Search] and enter a box number to search a box by the box number.
  • Page 167 Printing Operation Select a file from the list on the left side, and touch the [>>>] key. When you select a Personal Folder/Public Folder The selected file is added to the list on the right side. Details When you select a file and touch [Thumbnail], a thumbnail of the selected file is displayed.
  • Page 168 Printing Operation Hereafter, the Auto Output is explained. For more information on Wait Output or Proof Output, refer to “The flow of operation of the Wait Out- put and Proof Output” on page 5-54. The print quantity confirmation screen appears. Input the print quantity using control panel keypad, then touch [OK].
  • Page 169 Printing Operation To continue recalling data, touch [Yes]. To finish recalling data, touch [No]. Touching [Yes] key displays the file list screen. Return to the step 4 and repeat the procedures. bizhub PRO 1050P/1050eP 5-51...

  • Page 170: About The Recall Tab's Output Setting Screen

    Printing Operation About the Recall Tab’s Output Setting Screen On the Recall Tab’s Output Setting screen, you can configure the settings for outputting stored print jobs. Details On how to open the setting screen, refer to “Output from the Internal HDD”...
  • Page 171 Printing Operation [Wait Output] After recalling data, the [MACHINE] tab’s screen appears. You can change the setting. For more information, refer to “The flow of operation of the Wait Output and Proof Output” on page 5-54. [Proof Output] When a number of sheets are printed, the [MACHINE] tab’s screen appears after printing one sheet.

  • Page 172: The Flow Of Operation Of The Wait Output And Proof Output

    Printing Operation The flow of operation of the Wait Output and Proof Output In case of Wait Output In case of Proof Output The confirmation screen asks you One sheet is output whether to continue to recall data Confirm the output paper [MACHIN]E tab blinks Select the [MACHINE] tab Exit the operation...

  • Page 173: About The Secure Folder

    Printing Operation About the Secure Folder Overview of the Secure Folder You can perform secure printing of the printing features using the secure folder. Secure printing is to not start printing a print job until the configured User ID and password are entered from the control panel keypad of the machine. A print job for secure printing is stored in the secure folder.

  • Page 174: Creating A Box (Secure Folder)

    Printing Operation 5.8.1 Creating a Box (Secure Folder) After being transmitted from the print controller, a print job configured as se- cure output is stored in a secure box. Details The box name and password input by the following procedure is used in the secure printing of printer feature.
  • Page 175 Printing Operation Touch [New Box]. Touch [Box Name] to display the character input screen. Enter any box name. Details If you do not register a box name, a box number becomes the box name. You cannot use the secure box name already registered. Input a box name within 20 alphanumeric characters or symbols.
  • Page 176 Printing Operation Touch [Password] key to display the character input screen. Input any password. Details A secure box requires a password. You cannot create a box without con- figuring a password. Input a password within 8 alphanumeric characters and symbols. Eight asterisks (1) are displayed regardless of the number of characters you input.
  • Page 177 Printing Operation Make sure that the box name you registered on the box list is dis- played. If you want to create multiple boxes, return to the step 3 and repeat the procedures. bizhub PRO 1050P/1050eP 5-59...
  • Page 178 Printing Operation 5-60 bizhub PRO 1050P/1050eP...

  • Page 179: Setting Output Methods

    Setting Output Methods...

  • Page 181: Sorting / Stapling Printed Sheets (Finisher Fs-503)

    Setting Output Methods Setting Output Methods Sorting / Stapling Printed Sheets (Finisher FS-503) The Finisher FS-503 has a primary (main) tray and a secondary (sub) tray, each of which has the following output modes. Output to the Primary (Main) Tray Non-sort: Non-sort mode simply means that the offset-stacker finisher modes are not selected.
  • Page 182 Setting Output Methods Specifications for Non-sort / Collated / Uncollated Output to the Prima- ry (Main) Tray - Paper size: A3, B4, F4, A4, A4R, B5, B5R, A5, A5R, 12"×18", 11"×17", 8.5"×14", 8.5"×11", 8.5"×11"R, 5.5"×8.5", 5.5"×8.5"R, standard index paper, wide size paper (maximum 324mm ×460mm) - Paper weight: 40 - 244 g/ - The primary (main) tray's specifications are described separately.
  • Page 183 Setting Output Methods Output to the Secondary (Sub) Tray Collated: Collated mode outputs multiple sheets of the original set. No offset out- put is available. Uncollated Uncollated mode groups together multiple sheets of each original. No offset output is available. Combined with the output modes above, you can also choose to output face up or face down, and output front to back or back to front.

  • Page 184: Loading / Sorting Large Numbers Of Sheets (Ls-501/Ls-502)

    Setting Output Methods Loading / Sorting Large Numbers of Sheets (LS-501/ LS-502) The Large Capacity Stacker LS-501/LS-502 has a stacker (on the carriage) and a secondary (sub) tray, each of which has the following output modes. Output to the Stacker Non-sort: Non-sort mode simply means that the offset-stacker finisher modes are not selected.
  • Page 185 Setting Output Methods Specifications for Loading / Sorting Large Numbers of Sheets Stacker - Paper size: A3, B4, F4, A4, A4R, B5, A5, 12"×18", 11"×17", 8.5"×14", 8.5"×11", 8.5"×11"R, wide size paper (maximum 324 460 mm) × - Paper weight: 50 - 244 g/ - Number of sheets to be stacked: - 5,000 sheets (A3, B4, F4, A4, A4R, 12"×18", 11"×17", 8.5"×14", 8.5"×11", 8.5"×11"R, wide size paper (maximum 324...

  • Page 186: Punching File Holes / Folding Printed Sheets (Fd-501)

    Setting Output Methods Punching File Holes / Folding Printed Sheets (FD-501) There are three elements for output settings: - Intermediary processing - Output mode - Output tray position The Folding Unit FD-501 does the intermediary processing, while Finisher FS-503/Saddle Stitcher SD-501/Perfect Binder PB-501 set an output mode and change output tray position.
  • Page 187 Setting Output Methods Specifications for Punching Printed Sheets - Punch holes: 2 / 4 - Punch hole diameter: 2-hole 6.5 mm / 4-hole 8.0 mm - Punch hole pitch: 80 mm - Hole position adjustment range: ±4 mm (error 0.2mm) - Paper size: - 2-hole: A3, B4, F4, A4, A4R, B5, B5R, A5, A5R, 12"×18", 11"×17", 8.5"×14", 8.5"×11", 8.5"×11"R, 5.5"×8.5", 8K, 16K...
  • Page 188 Setting Output Methods Specifications for Folding Printed Sheets - Folding types: Z-Fold, Letter Fold-in, Letter Fold-out, Double Parallel, Gate, Folding - Paper size: A3, B4, A4R, 12"×18", 11"×17", 8.5"×14", 8.5"×11"R, 8K - Paper weight: - Z-Fold / Letter Fold-in / Letter Fold-out / Folding: 50 - 130 g/ - Double Parallel / Gate: 50 - 91 g/ - Sheets placed on the post inserter can also be folded.

  • Page 189: Making Folded Booklet (Sd-501)

    Setting Output Methods Making Folded Booklet (SD-501) Machine with the Saddle Stitcher SD-501 installed provides Fold & Staple mode in combination with Booklet feature to make two-sided signature booklet, folded and stapled at two positions (saddle stitched) in the centre. Use Trimming mode to trim the edge that opens the booklet, if desired.
  • Page 190 Setting Output Methods Details When using Saddle Stitcher SD-501 for output, be sure to withdraw the Saddle stitcher tray. Open the tray stand when fully withdrawn. The folded and stapled (and trimmed) sets will be delivered into the Sad- dle stitcher tray. If the tray is not fully withdrawn, the machine will detect that the tray is filled up, even with less number of finished sets than that specified in specifications.

  • Page 191: Folding Printed Set (Sd-501)

    Setting Output Methods Folding Printed Set (SD-501) Machine with the Saddle Stitcher SD-501 installed provides Multi Centre mode to double-fold up to 5 sheets of printed set, or Multi Letter mode to fold it inside in three. Using Multi Letter, the print side can be specified on the screen. Specifications for Multi Centre / Multi Letter - Paper weight: Multi Centre 50 ~ 244 g/ , Multi Letter 50 ~ 91 g/...

  • Page 192: Output With Cover Sheet (Post Inserter)

    Setting Output Methods Output with Cover Sheet (Post Inserter) This function uses the post inserter on Folding Unit FD-501 to attach a cover. - Using Sheet Insertion function, cover sheets loaded in the top/bottom tray of the post inserter can be attached as a front cover, back cover, or insertion sheet to output copies, in order to create a stapled book with a cover and chapter title pages.
  • Page 193 Setting Output Methods Covers and insertion sheets Copied set with Copied set with covers attached in covers and insertion staple mode sheets attached Cover sheet Body set with cover attached in perfect binding mode bizhub PRO 1050P/1050eP 6-15...
  • Page 194 Setting Output Methods To prevent small cover sheet from skewing The small cover sheet may be skew, when loading it in the upper/lower tray of the post inserter. Three paper rollers are attached to the upper/lower tray respectively. To lock the roller both sides, prevent paper from skewing. Push the both roller lock levers to inside to lock them.

  • Page 195: Using Folder/Finisher Functions Manually

    Setting Output Methods Using Folder/Finisher Functions Manually If the optional Folding Unit FD-501 and the Finisher FS-503/Saddle Stiticher SD-501 are installed, you can load paper in the lower tray of the post inserter and manually punch, fold, and/or staple copies. Specifications for Using Folder/Finisher Functions Manually - When using folder/finisher/saddle stitcher functions manually, paper should be placed only in the upper tray of the post inserter.
  • Page 196 Setting Output Methods Multi-Feed Detection Function 1 Stapling 2 Holes Punch Z-Fold Letter Fold-in Folding Letter Double Function 2 Stapling 4 Holes Punch Gate Fold out Parallel Fold & Staple Multi-Feed Punch selection Start/Stop button Detection button button Staple Selection Fold Selection button button...
  • Page 197 Setting Output Methods Select a mode. Staple Selection Fold Selection button button Punch selection button When selecting 1 or 2 stapling / fold/staple, press the Staple selec- tion button to turn on the desired mode lamp. When selecting 2- or 4-hole punching, press the Punch selection button to turn on the desired mode lamp.
  • Page 198 Setting Output Methods Press the [Start/Stop] button. Start/Stop button If multi-feeding is detected and the machine stops even if single sheet is fed, press the Multi-Feed Detection button to turn on the lamp below. Details To interrupt the operation, press the Multi-Feed Detection button Start/Stop button again.

  • Page 199: Using Perfect Binder Pb-501

    Setting Output Methods Using Perfect Binder PB-501 The machine with the optional Perfect Binder PB-501 installed automatically attaches a printed set with a cover sheet to make a perfect-bound book, ap- plying a dab of glue in the centerline of the cover sheet to fix the spine. In the Perfect Binding mode, both simplex and duplex printing are available for the body set, and also the cover sheet can be blank, simplex-printed or duplex-printed, and even trimmed to match with the thickness of the body...
  • Page 200 Setting Output Methods Specifications for Using Perfect Binder PB-501 - Warm-up/Low Power/Shut-Off The perfect binder requires longer warm-up time than that required for the main body, while the Low Power/Shut-Off mode activates at the same time on main body and perfect binder. We recommend you to specify the time to activate the Low Power/Shut- Off mode in view of the frequency to use the perfect binder.
  • Page 201 Setting Output Methods - Use Cover Trimming function to trim the cover by the amount automati- cally estimated from the following formula, in the range from 3 mm to 40 mm in 0.1 mm increments. (Cover width) – (Body width × 2) – (Spine width) - For specifications of the secondary (sub) tray, see “Paper Weight”...

  • Page 202: Using Two Machines In Tandem

    PRO 1050P printer. Also, the combination of the two copiers can be either the two bizhub PRO 1050e copiers, two bizhub PRO 1050eP printers, or bizhub PRO 1050e copier and bizhub PRO 1050eP printer. - If the combination of bizhub PRO 1050e/1050eP and bizhub PRO 1050/ 1050P is desired, contact your service representative.
  • Page 203 Setting Output Methods The tandem mode cannot be selected while the tandem machine is in the off state, due to Auto shut-off. Press [Power Save] to release it. Selected tandem mode will be released automatically when the tandem machine activates Auto shut-off. Press [Power Save] to release it, then select the tandem mode again to restart the procedure.
  • Page 204 Setting Output Methods Troubleshooting When a paper jam, SC-code (E-code, F-code) trouble or unloaded paper occurs on either the master or tandem machine: Remove the mishandled paper, take the appropriate troubleshooting meas- ures to correct the problem, or add paper. When the trouble is cleared, the machine will restart printing for the remain- ing print quantity.

  • Page 205: Machine Status Screen Setting

    Machine Status Screen Setting...

  • Page 207: Machine Status Screen Setting Outlines

    Machine Status Screen Setting Machine Status Screen Setting Machine Status Screen Setting Outlines The [Paper Set], [Adjustment], and [Controller] keys are located at the bottom of the Machine Status Screen, to display each setting screen. Paper Set The Paper Set popup screen is displayed. Specify each tray size, register/delete type/weight setting, and also set air assist function on/off from this screen.
  • Page 208 Machine Status Screen Setting Adjustment The Adjustment mode menu screen is displayed. Adjust the settings of Image Control and Output options. For details, refer to “Machine Adjustment Outlines” on page 9-3. After completing the Adjustment mode settings, touch [Return] to exit the Adjustment mode.

  • Page 209: Paper Setting

    Paper Setting...

  • Page 211: Paper Setting Outlines

    Paper Setting Paper Setting Paper Setting Outlines This machine provides the optimum print result according to each character- istics of print paper by specifying paper size, paper type/weight, and air as- sist function for each tray (Tray Setting). The paper type/weight can be programmed in advance, and then applied to each tray as required (Register Type/Weight).
  • Page 212 Paper Setting 4. Hole-Punch Select either condition. With Punch Hole or No Punch Hole 5. Both Sides Adjustment Specify the Vertical zoom, Horizontal zoom, Up/Down shift amount, and Right/Left shift amount for both front and back pages. Vertical zoom: 0.5% to -0.5% (in 0.05% increments) Horizontal zoom: 10% to -10% (in 0.1% increments) Up/Down shift amount: 10 to -10mm (in 0.1mm increments) Right/Left shift amount: 10 to -10mm (in 0.1mm increments)
  • Page 213 Paper Setting Coated B Specify [Coated B] when overlay printing on the offset printed coated paper. If a trouble occurs in feeding the coated paper when [Coated A] is specified, select [Coated B]. Details When using the overlay printed paper, you are required to specify specific settings besides [Coated B] to the tray to which this type of coated paper is load.
  • Page 214 Paper Setting Specify [OHP] to a tray to which transparent films are loaded. Weight is classified into eight types as shown in the following table. Paper type and weight Coated A Coated B Fine Normal Book/ Embossed News 40 ~ 49g/m²...
  • Page 215 Paper Setting Pattern Description Copying speed becomes slow. copying speed is 63 sheets per minute when print- ing A4 in the simplex print mode. Paper Weight Conversion Chart Inch Paper type, Basic size Bond Cover Index Bristol Book 17×22 20×26 25.5×30.5 22.5×28.5 24×36...
  • Page 216 Paper Setting Inch Paper type, Basic size Bond Cover Index Bristol Book 17×22 20×26 25.5×30.5 22.5×28.5 24×36 25×38 432×559 508×660 648×775 572×724 610×914 635×965 g/m² 200.0 53.3 74.1 110.8 91.3 123.1 135.3 210.0 55.9 77.8 116.3 95.9 129.2 142.1 220.0 58.6 81.5 121.8...

  • Page 217: Recommended Setting Of Paper Type/Weight

    Paper Setting Recommended Setting of Paper Type/Weight It is recommended that paper type/weight should be registered for each pa- per to be used, so that the setting change can be made according to the en- vironment (temperature, humidity, paper condition, etc.) on the basis of registered settings for each tray.

  • Page 218: Register Paper Type/Weight

    Paper Setting Register Paper Type/Weight Follow the procedure below to register paper type/weight according to the paper type to be used. Procedure Touch [Paper Set] - [Register Type/Weight] 8-10 bizhub PRO 1050P/1050eP...
  • Page 219 Paper Setting Touch the key to be registered. The Input Condition Screen will be dis- played. bizhub PRO 1050P/1050eP 8-11...
  • Page 220 Paper Setting Touch [Type] to display the Type popup menu, then select the desired paper type. Details For details, refer to “Paper Setting Outlines” on page 8-3. Touch [OK] to complete the setting. 8-12 bizhub PRO 1050P/1050eP...
  • Page 221 Paper Setting Touch [Name] on the Input Condition Screen, then enter the name of the paper to be used. Details The same name as the paper type specified is displayed on the screen. To alter it, enter the new paper type name. For details on entering texts in the field, see the appendix.
  • Page 222 Paper Setting Details Refer to “Recommended Setting of Paper Type/Weight” on page 8-9 for details of the relation between specified paper type and weight. Touch [OK] to complete the setting. Touch [Coloured Paper] on the Input Condition Screen, then select the colour of the paper to be used.
  • Page 223 Paper Setting Touch [Both Sides Adj.] on the Input Condition Screen, then enter the adjustment value as follows. Touch [Front] or [Back] on the Front and Back Page Adjustment Screen to select the printed side. Select the adjustment item (vertical zoom, horizontal zoom, vertical shift, and horizontal shift.) Touch [+ 5 -]to specify the value to be positive or negative.

  • Page 224: Delete Paper Type/Weight

    Paper Setting Delete Paper Type/Weight Follow the procedure below to delete the paper type/weight previously reg- istered. Touch [Paper Set] - [Delete Type/Weight]. 8-16 bizhub PRO 1050P/1050eP...
  • Page 225 Paper Setting Use [Next] or [Previous] to scroll to the desired paper type/weight from the list, then touch the key to highlight it. Touch [OK]. The popup menu will appear to confirm that the selected key is to be deleted. Touch [Yes] to delete it, or touch [No] to cancel.

  • Page 226: Set Paper Size, Conditions, Air Assist Function For A Tray

    Paper Setting Set Paper Size, Conditions, Air Assist Function for a Tray Specify the paper sizes, programmed paper type/weight, air assist function for each tray. 8-18 bizhub PRO 1050P/1050eP...
  • Page 227 Paper Setting Procedure Touch [Paper Set] - [Tray Setting]. Touch the tray key (Tray 1 to 5) to be specified. Touch [Size Setting]. The Size Setting Screen will be displayed. Follow the procedure for each setting. bizhub PRO 1050P/1050eP 8-19...
  • Page 228 Paper Setting Setting Standard Size 1. Touch [Standard Size] to highlight it. 2. If selected tray will be loaded with one of the following sizes, touch [Search Size Set] to display the Search Size Set Screen, then touch the desired size key. 5.5×8.5, 8.5×11R, 8×13, 8.12×13.2, 8.25×13, 8.5×13 Details If 5.5×8.5 is selected on the Search Size Set Screen, the machine will au-...
  • Page 229 Paper Setting Setting Custom Size 1. Touch [Custom Size] to highlight it. 2. Touch the vertical/horizontal size key, then use the touch panel keypad or arrow keys (,) and (+) to enter the desired size. From the minimum size of 100 140 mm to the maximum size of 324 460 mm can be set.
  • Page 230 Paper Setting Setting Wide Size Paper 1. Touch [Wide Size Paper] to highlight it. 2. Touch the desired wide size key to highlight it. 3. Touch [Lead Edge], [Rear Edge], or [Centre] to specify the desired image position. 4. Touch [Input Size] to display the Size Input Screen. 5.
  • Page 231 Paper Setting Details When setting wide size, be sure to specify the precise dimensions of pa- per to be used. The dimensions of the wide size selected in step 2 are not correctly set in the initial setting. 7. Touch [Select Size] to return to the Select Size Screen. 8.
  • Page 232 Paper Setting Setting Tab Paper 1. Touch [Tab Paper] to highlight it. 2. Touch the desired tabbed paper size key to highlight it. 3. If setting the custom tabbed paper size, touch [Custom Size] to display the Size Setting Screen. 8-24 bizhub PRO 1050P/1050eP...
  • Page 233 Paper Setting 4. Touch the vertical/horizontal/index size key, then use the touch panel keypad or arrow keys (+) and (,) to enter the desired size. 5. Touch [Number of Tabs] to display the Number of Tabs Screen, then use the touch panel keypad or arrow keys (+) and (,) to enter the number of tabs.
  • Page 234 Paper Setting Touch [Type/Weight] on the Tray Setting Screen. Use [Next] or [Previous] to scroll to the desired paper type/weight from the list, then touch the key to highlight it. 8-26 bizhub PRO 1050P/1050eP...
  • Page 235 Paper Setting Touch [OK] to complete the setting. The Tray Setting Screen will be re- stored. Touch [Air Assist] on the Tray Setting Screen. Touch [Auto,] [On], or [Off] to highlight it. Touch [OK] to complete the setting. The Tray Setting Screen will be re- stored.

  • Page 236: Change Paper Type/Weight Specified For A Tray

    Paper Setting Change Paper Type/Weight Specified for a Tray The paper size and air assist function can be changed with the same proce- dure as setting. To change paper type/weight already designated for a tray, follow the proce- dure below. Details Front and Back Page Adjustment is required to execute every time the paper type is changed or as daily maintenance, because a shrinkage ratio...
  • Page 237 Paper Setting Procedure Touch [Paper Set] - [Tray Setting]. Touch [Change] to display the Change Setting Screen. bizhub PRO 1050P/1050eP 8-29...
  • Page 238 Paper Setting Touch the key of the setting item to be changed. 8-30 bizhub PRO 1050P/1050eP...
  • Page 239 Paper Setting bizhub PRO 1050P/1050eP 8-31...
  • Page 240 Paper Setting To change it, follow the same procedure as registering the paper con- ditions. For details, refer to “Register Paper Type/Weight” on page 8-10. To output a chart for the Front and Back Page Adjustment, proceed to the next step. To output a chart for the Front and Back Page Adjustment, touch [Both Sides Adj.] on the Change Setting Screen.
  • Page 241 Paper Setting Touch [OK] to complete the setting. The Tray Setting Screen will be re- stored. To newly register the modified setting, touch [Register]. To simply change the setting, proceed to step 10. Touch the desired registration key on the Register Screen. The Input Name Screen will be displayed.
  • Page 242 Paper Setting Touch [OK] to complete the setting. The Tray Setting Screen will be re- stored. Touch [Close] to return to the Paper Set Screen. Touch [Close]. The Machine Status Screen will be restored. 8-34 bizhub PRO 1050P/1050eP...

  • Page 243: Adjustment

    Adjustment...

  • Page 245: Machine Adjustment Outlines

    Adjustment Adjustment Machine Adjustment Outlines The following adjustments for image control are included in the Machine Ad- justment functions. 01 Magnification Adjustment Provide controls for image magnification. 02 Timing Adjustment Provide controls for image timing. 03 Centring Adjustment Provide the centring control to the direction of paper feed. bizhub PRO 1050P/1050eP...

  • Page 246: Magnification Adjustment

    Adjustment 01 Magnification Adjustment 01 Printer Drum Clock Adjustment <SIDE1> In the printer control, perform this adjustment to control the magnification for Side 1 to the direction of paper feed. Note This adjustment is a baseline for both sides adjustment enabled in Tray Setting and Register Type/Weight.
  • Page 247 Adjustment Procedure Touch [Adjustment] - [01 Machine Adjustment] - [01 Magnification Ad- justment]. Touch [01 Printer Drum Clock Adjustment <SIDE1>] to display the Printer Drum Clock Adjustment <SIDE1> Screen. Touch the [PRINT] tab to display the Print Screen. Load A3 paper into the tray, then press [Start] to output the sample pat- tern (No.
  • Page 248 Adjustment Use the touch panel keypad to enter an appropriate value, then touch [Set]. Available range: -10 (short) to +10 (long), 1 step = 0.05%. Repeat steps 3 to 7 until the desired result is obtained. Touch [Return] to restore the Magnification Adjustment Menu Screen. bizhub PRO 1050P/1050eP...

  • Page 249: Printer Drum Clock Adjustment

    Adjustment 02 Printer Drum Clock Adjustment <SIDE2> In the printer control, perform this adjustment to control the magnification for Side 2 to the direction of paper feed. Details This adjustment is a baseline for both sides adjustment enabled in Tray Setting and Register Type/Weight.
  • Page 250 Adjustment Procedure Touch [Adjustment] - [01 Machine Adjustment] - [01 Magnification Ad- justment]. Touch [02 Printer Drum Clock Adjustment <SIDE2>] to display the Printer Drum Clock Adjustment <SIDE2> Screen. Select the required paper size using [Next] or [Back]. With [Next] select- ed each time, the display will switch as follows: Tray1 –...

  • Page 251: Printer Horizontal Adjustment

    Adjustment 03 Printer Horizontal Adjustment <SIDE1> In the printer control, perform this adjustment to control the magnification for Side 1 perpendicular to the direction of paper feed. bizhub PRO 1050P/1050eP...
  • Page 252 Adjustment Procedure Touch [Adjustment] - [01 Machine Adjustment] - [01 Magnification Ad- justment]. Touch [03 Printer Horizontal Adjustment <SIDE1>] to display the Print- er Horizontal Adjustment <SIDE1> Screen. Touch the [PRINT] tab to display the Print Screen. Select A3 paper, then press [Start] to output the sample pattern (No. 16).

  • Page 253: Printer Horizontal Adjustment

    Adjustment 04 Printer Horizontal Adjustment <SIDE2> In the printer control, perform this adjustment to control the magnification for Side 2 perpendicular to the direction of paper feed. bizhub PRO 1050P/1050eP 9-11...
  • Page 254 Adjustment Procedure Touch [Adjustment] - [01 Machine Adjustment] - [01 Magnification Ad- justment]. Touch [04 Printer Horizontal Adjustment <SIDE2>] to display the Print- er Horizontal Adjustment <SIDE2> Screen. Select the required paper size using [Next] or [Back]. With [Next] select- ed each time, the display will switch as follows: Tray1 –...

  • Page 255: Timing Adjustment

    Adjustment 02 Timing Adjustment 01 Printer Restart Timing Adjustment <SIDE1> Perform this adjustment to control the restart timing for Side 1. Reminder Perform this adjustment after completing Printer Drum Clock Adjustment <SIDE1>. bizhub PRO 1050P/1050eP 9-13...
  • Page 256 Adjustment Procedure Touch [Adjustment] - [01 Machine Adjustment] - [02 Timing Adjust- ment]. Touch [01 Printer Restart Timing Adjustment <SIDE1>] to display the Printer Restart Timing Adjustment <SIDE1> Screen. Select the required tray using [Next] or [Back]. With [Next] selected each time, the display will switch as follows: All –...
  • Page 257 Adjustment If the desired result cannot be obtained, touch the [ADJUSTMENT] tab to return to the Adjustment Screen. Use the touch panel keypad to enter an appropriate value, then touch [Set]. Available range: -30 (short) to +30 (long), 1 step = 0.1 mm. Repeat steps 3 to 8 until the desired result is obtained.
  • Page 258 Adjustment 02 Printer Restart Timing Adjustment <SIDE2> Perform this adjustment to control the restart timing for Side 2. Reminder Perform this adjustment after completing Printer Drum Clock Adjustment <SIDE2>. 9-16 bizhub PRO 1050P/1050eP...
  • Page 259 Adjustment Procedure Touch [Adjustment] - [01 Machine Adjustment] - [02 Timing Adjust- ment]. Touch [02 Printer Restart Timing Adjustment <SIDE2>] to display the Printer Restart Timing Adjustment <SIDE2> Screen. Select the required tray using [Next] or [Back]. With [Next] selected each time, the display will switch as follows: All –...
  • Page 260 Adjustment 03 Scanner Restart Timing Adjustment Perform this adjustment to control the restart timing in scanning the original with the original glass. 9-18 bizhub PRO 1050P/1050eP...
  • Page 261 Adjustment Procedure Touch [Adjustment] - [01 Machine Adjustment] - [02 Timing Adjust- ment]. Touch [03 Scanner Restart Timing Adjustment] to display the Scanner Restart Timing Adjustment Screen. Touch the [Print] tab to display the Print Screen. Select A3 paper, place the original of which a misalignment can be eas- ily monitored on the original glass, then press [Start].
  • Page 262 Adjustment 04 ADF Restart Timing Adjustment Perform this adjustment to control the restart timing in scanning the original with ADF. 9-20 bizhub PRO 1050P/1050eP...
  • Page 263 Adjustment Procedure Touch [Adjustment] - [01 Machine Adjustment] - [02 Timing Adjust- ment]. Touch [04 ADF Restart Timing Adjustment] to display the ADF Restart Timing Adjustment Screen. Select the desired paper side using [Next] or [Back]. Each time [Next] is selected, the display will switch as follows: SIDE 1 - SIDE 2 Note "SIDE 1"...

  • Page 264: Centring Adjustment

    Adjustment 03 Centring Adjustment 01 Printer Centring Adjustment Perform this adjustment to control image centring to the direction of paper feed. 9-22 bizhub PRO 1050P/1050eP...
  • Page 265 Adjustment Procedure Touch [Adjustment] - [01 Machine Adjustment] - [03 Centring Adjust- ment]. Touch [01 Printer Centring Adjustment] to display the Printer Centring Adjustment Screen. Select A3 paper, then press [Start] to output the sample pattern (No. 16). Fold the output sheet at the centre to the direction of paper feed and measure the distance between the lines on both sides.

  • Page 266: Finisher Adjustment Outlines

    Adjustment Finisher Adjustment Outlines Use this function to make fine adjustments on Finisher options. Details The target adjustment items vary depending upon the configuration of in- stalled options. 01 Stapler Position Adjustment Adjust the dislocation of sheets delivered to the tray and centre position of staples processed by the Staple Finisher FS-503.

  • Page 267: Stapler Position Adjustment

    Adjustment 01 Stapler Position Adjustment 01 Stapling Centre Position Adjustment Perform this adjustment for the centre position of copied/printed sheets and of staples processed by the Staple Finisher FS-503. The paper width adjustment is supposed to be completed before this adjust- ment.
  • Page 268 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [01 Stapler Position Adj.]. Touch [01 Stapling Centre Position Adjustment] to display the Stapling Centre Position Adjustment Screen. Touch the [PRINT] tab to display the Print Screen. Press [Start]. A sample copy will be output. Use the touch panel keypad to enter the desired adjustment value, then touch [Set].
  • Page 269 Adjustment 02 Paper Width Adjustment Perform this adjustment if stapled sheets are not aligned neatly processed when Straight/Staple mode is selected on the Staple Finisher FS-503. bizhub PRO 1050P/1050eP 9-27...
  • Page 270 Adjustment Procedure Touch[Adjustment] - [02 Finisher Adjustment ]- [01 Stapler Position Adj.]. Touch [02 Paper Width Adjustment] to display the Paper Width Adjust- ment Screen. Touch [Straight Mode] or [Staple Mode] to select the adjustment mode. Touch the [PRINT] tab to display the Print Screen. Load the desired size of paper to be adjusted on a tray.
  • Page 271 Adjustment Check misalignment (a), in which misalignment occurs if the paper width setting is larger than the actual width, or paper curving (b), in which a sample set is curved if the paper width setting is smaller than the actual width has occurred. Straight mode Staple mode If the desired result cannot be obtained, touch the [ADJUSTMENT] tab.
  • Page 272 Adjustment Remove the output paper, then close the finisher door. If desired adjustment result cannot be obtained, touch the [ADJUST- MENT] tab, then repeat the adjustment steps from 3 to 12 until the de- sired result is obtained. Touch [Return] to restore the Stapler Position Adjustment Mode Menu Screen.

  • Page 273: Multi Folder (Punch) Adjustment

    Adjustment 9.10 02 Multi Folder (Punch) Adjustment 01 Paper Width Adjustment Perform this adjustment for the specific paper size if punch holes processed by the Folding Unit FD-501 dislocate largely. bizhub PRO 1050P/1050eP 9-31...
  • Page 274 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [02 Multi Folder (Punch) Adj.]. Touch [01 Paper Width Adjustment] to display the Paper Width Adjust- ment Screen. Touch the [PRINT] tab to display the Print Screen. Load the desired size of paper to be adjusted on a tray, specify the set number to 10, then press [Start].
  • Page 275 Adjustment 02 Hole-Punch Vertical Position Adjustment Perform this adjustment for the position of punch holes to the direction of pa- per feed. bizhub PRO 1050P/1050eP 9-33...
  • Page 276 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [02 Multi Folder (Punch) Adj.]. Touch [02 Hole-Punch Vertical Position Adjustment] to display the Hole-Punch Vertical Position Adjustment Screen. Touch the [PRINT] tab to display the Print Screen. Load the desired size of paper to be adjusted on a tray, specify [Punch], then press [Start].
  • Page 277 Adjustment If adjustment in any other hole type or paper size is required, repeat steps from 3 to 10. Touch [Return] to restore the Multi Folder (Hole-Punch) Adjustment Mode Menu Screen. bizhub PRO 1050P/1050eP 9-35...

  • Page 278: Multi Folder (Fold) Adjustment

    Adjustment 9.11 03 Multi Folder (Fold) Adjustment 01 Folding Position Adjustment Perform this adjustment for the folding position processed by the Folding Unit FD-501. 9-36 bizhub PRO 1050P/1050eP...
  • Page 279 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [03 Multi Folder (Fold) Adj.]. Touch [01 Folding Position Adjustment] to display the Folding Position Adjustment Screen. Touch the [PRINT] tab to display the Print Screen. Load the desired size of paper to be adjusted on a tray, specify [Fold- ing], then press [Start].
  • Page 280 Adjustment 02 Letter Fold-in Position Adjustment Perform this adjustment for the folding positions in Letter Fold-in mode proc- essed by the Folding Unit FD-501. Reminder When adjusting both Single Fold and Double Fold, be sure to start with the Double Fold adjustment. The baseline of Single Fold is calculated from the edge of the sheet, while that of Double Fold is calculated from the position of the first fold line, therefore a distance (b) in step 5 will be altered by changing the position...
  • Page 281 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [03 Multi Folder (Fold) Adj.]. Touch [02 Letter Fold-in Position Adjustment] to display the Letter Fold-in Position Adjustment Screen. Touch the [PRINT] tab to display the Print Screen. Load the desired size of paper to be adjusted on a tray, specify [Letter Fold-in], then press [Start].
  • Page 282 Adjustment Touch [Double Fold]. Use the touch panel keypad to enter the desired adjustment value, then touch [Set]. Available range: -50 to +50, 1 step = 0.1 mm Note The distance (a) in step 5 will increase when the "+" value is entered, and decrease when the "-"...
  • Page 283 Adjustment 03 Letter Fold-out Position Adjustment Perform this adjustment for the folding positions in Letter Fold-out mode processed by the Folding Unit FD-501. Details The baseline of Single Fold is calculated from the edge of the sheet, while that of Double Fold is calculated from the position of the first fold line, therefore a distance (b) in step 5 will be altered by changing the position of either Single Fold or Double Fold.
  • Page 284 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [03 Multi Folder (Fold) Adj.]. Touch [03 Letter Fold-out Pos. Adjustment] to display the Letter Fold- out Position Adjustment Screen. Touch the [PRINT] tab to display the Print Screen. Load the desired size of paper to be adjusted on a tray, specify [Letter Fold-out], then press [Start].
  • Page 285 Adjustment Touch [Single Fold]. Use the touch panel keypad to enter the desired adjustment value, then touch [Set]. Available range: -50 to +50, 1 step = 0.1 mm Note The distance (a) in step 5 will increase when the "+" value is entered, and decrease when the "-"...
  • Page 286 Adjustment 04 Double Parallel Position Adjustment Perform this adjustment for the folding positions in Double Parallel folding mode processed by the Folding Unit FD-501. Reminder When adjusting both Single Fold and Double Fold, be sure to start with the Single Fold adjustment. The baseline of Single Fold is calculated from the edge of the sheet, while that of Double Fold is calculated from the position of the first fold line, therefore a distance (b) in step 5 will be altered by changing the position...
  • Page 287 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [03 Multi Folder (Fold) Adj.]. Touch [04 Double Parallel Position Adjustment] to display the Double Parallel Position Adjustment Screen. Touch the [PRINT] tab to display the Print Screen. Load the desired size of paper to be adjusted on a tray, specify [Double Parallel], then press [Start].
  • Page 288 Adjustment Touch [Single Fold]. Use the touch panel keypad to enter the desired adjustment value, then touch [Set]. Available range: -50 to +50, 1 step = 0.1 mm Note The distance (a) in step 5 will decrease when the "+" value is entered, and increase when the "-"...
  • Page 289 Adjustment 05 Z-Fold Position Adjustment Perform this adjustment for the folding positions in Z-Fold mode processed by the Folding Unit FD-501. Reminder When adjusting both Single Fold and Double Fold, be sure to start with the Single Fold adjustment. The baseline of Single Fold is calculated from the edge of the sheet, while that of Double Fold is calculated from the position of the first fold line, therefore a distance (b) in step 5 will be altered by changing the position of either Single Fold or Double Fold.
  • Page 290 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [03 Multi Folder (Fold) Adj.]. Touch [05 Z-Fold Position Adjustment] to display the Z-Fold Position Adjustment Screen. Touch the [PRINT] tab to display the Print Screen. Load the desired size of paper to be adjusted on a tray, specify [Z- Fold], then press [Start].
  • Page 291 Adjustment Touch [Single Fold]. Use the touch panel keypad to enter the desired adjustment value, then touch [Set]. Available range: -50 to +50, 1 step = 0.1 mm Note The distance (a) in step 5 will increase when the "+" value is entered, and decrease when the "-"...
  • Page 292 Adjustment 06 Gate Position Adjustment Perform this adjustment for the folding positions in Gate folding mode proc- essed by the Folding Unit FD-501. Reminder When adjusting Single Fold, Double Fold and Triple Fold at a time, be sure to start with the Single Fold adjustment. The baseline of Single Fold is calculated from the edge of the sheet, while that of Double Fold is calculated from the position of the first fold line, and that of Triple Fold is calculated from the position of the second fold line,...
  • Page 293 Adjustment Procedure Touch [Adjustment ]- [02 Finisher Adjustment] - [03 Multi Folder (Fold) Adj.]. Touch [06 Gate Position Adjustment] to display the Gate Position Ad- justment Screen. Touch the [PRINT] tab to display the Print Screen. Load the desired size of paper to be adjusted on a tray, specify [Gate], then press [Start].
  • Page 294 Adjustment Touch [Single Fold]. Use the touch panel keypad to enter the desired adjustment value, then touch [Set]. Available range: -50 to +50, 1 step = 0.1 mm Note The distance (a) in step 5 will decrease when the "+" value is entered, and increase when the "-"...

  • Page 295: Stacker Adjustment

    Adjustment 9.12 04 Stacker Adjustment 01 Paper Width Adjustment Perform this adjustment when output sheets are not aligned in a perpendic- ular position to the direction of paper feed processed by the Large Capacity Stacker LS-501/502. bizhub PRO 1050P/1050eP 9-53...
  • Page 296 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [04 Stacker Adj.]. Touch [01 Paper Width Adjustment] to display the Paper Width Adjust- ment Screen. Touch the [PRINT] tab to display the Print Setting Screen. Specify A3 then press [Start]. A sample pattern (No. 16) will be output. If output sheets are misaligned, touch the [ADJUSTMENT] tab.
  • Page 297 Adjustment 02 Paper Length Adjustment Perform this adjustment when output sheets are not aligned to the direction of paper feed processed by the Large Capacity Stacker LS-501/502. bizhub PRO 1050P/1050eP 9-55...
  • Page 298 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [04 Stacker Adj.]. Touch [02 Paper Length Adjustment] to display the Paper Length Ad- justment Screen. Touch the [PRINT] tab to display the Print Screen. Specify A3 then press [Start]. A sample pattern (No. 16) will be output. If output sheets are misaligned, touch the [ADJUSTMENT] tab.

  • Page 299: Saddle Stitcher Adjustment

    Adjustment 9.13 05 Saddle Stitcher Adjustment 01 Stapling Centre Adjustment Perform this adjustment for the centre (folding) position of copied/printed sheets and of staples processed by the Saddle Stitcher SD-501. The paper width adjustment (06) and folding position adjustment (04) are supposed to be completed before this adjustment.
  • Page 300 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [05 Saddle Stitcher Adj.]. Touch [01 Stapling Centre Adjustment] to display the Stapling Centre Position Adjustment Screen. Touch the [COPY] tab to display the Copy Screen. Select the Fold&Staple mode, then press [Start]. A sample copy will be output.
  • Page 301 Adjustment Use the touch panel keypad to enter the desired adjustment value, then touch [Set]. Available range: -20 (forward) to +20 (backward), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 7 until the desired result is ob- tained.
  • Page 302 Adjustment 02 Stapling Paper Width Adjustment Perform this adjustment if stapled sheets are not aligned neatly processed by the Saddle Stitcher SD-501. 9-60 bizhub PRO 1050P/1050eP...
  • Page 303 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [05 Saddle Stitcher Adj.]. Touch [02 Stapling Paper Width Adjustment] to display the Staple Pa- per Width Adjustment Screen. Touch the [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, select Fold&Staple and then press [Start].
  • Page 304 Adjustment Details The following limitation is put on the paper width setting according to the actual paper width. Actual paper width Minimum value Maximum value ~ 222 mm 91 mm Actual width minus 91 mm 222 mm ~ 290 mm Not limited Not limited 290 mm ~...
  • Page 305 Adjustment 03 Staple Pitch Adjustment Perform this adjustment for the staple pitch processed by Saddle Stitcher SD-501. bizhub PRO 1050P/1050eP 9-63...
  • Page 306 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [05 Saddle Stitcher Adj.]. Touch [03 Staple Pitch Adjustment] to display the Staple Pitch Adjust- ment Screen. Touch the [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, specify Fold&Staple, then press [Start].
  • Page 307 Adjustment 04 Folding Position Adjustment Perform this adjustment for the double-folding position processed by the Saddle Stitcher SD-501. bizhub PRO 1050P/1050eP 9-65...
  • Page 308 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [05 Saddle Stitcher Adj.]. Touch [04 Folding Position Adjustment] to display the Folding Position Adjustment Screen. Touch the [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, specify Multi Centre, then press [Start].
  • Page 309 Adjustment Touch [Return] to restore the Saddle Stitcher Adjustment Mode Menu Screen. bizhub PRO 1050P/1050eP 9-67...
  • Page 310 Adjustment 05 Three-Fold Position Adjustment Perform this adjustment for the three-folding positions processed by the Saddle Stitcher SD-501. Reminder When adjusting both Single Fold and Double Fold, be sure to start with the Double Fold adjustment. The baseline of Single Fold is calculated from the edge of the sheet, while that of Double Fold is calculated from the position of the first fold line, therefore a distance (b) in step 5 will be altered by changing the position of either Single Fold or Double Fold.
  • Page 311 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [05 Saddle Stitcher Adj.]. Touch [05 Three-Fold Position Adjustment] to display the Three-Fold- ing Position Adjustment Screen. Touch the [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, specify Multi Letter, then press [Start].
  • Page 312 Adjustment Touch[Next] or [Back] to select the paper size to be adjusted. Touching [Next] continuously will change the paper size as follows: All Size - A4R - 8.5×11R Touch [Double Fold]. Use the touch panel keypad to enter the desired adjustment value, then touch [Set].
  • Page 313 Adjustment 06 Fold Paper Width Adjustment Perform this adjustment if folding position processed by the Saddle Stitcher SD-501 dislocates in the folded set. bizhub PRO 1050P/1050eP 9-71...
  • Page 314 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [05 Saddle Stitcher Adj.]. Touch [06 Fold Paper Width Adjustment] to display the Fold Paper Width Adjustment Screen. Touch the [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, specify the number of sheets to 5, then press [Start].
  • Page 315 Adjustment 07 Trimming Adjustment Perform this adjustment to increase/decrease the trimming width. bizhub PRO 1050P/1050eP 9-73...
  • Page 316 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [05 Saddle Stitcher Adj.]. Touch [07 Trimming Adjustment] to display the Trimming Adjustment Screen. Touch the [COPY] tab to display the Copy Screen. Load the desired size of paper to be adjusted on a tray, specify Fold&Staple, then press [Start].
  • Page 317 Adjustment Details Enter the value so that the cover should be cut more than 2.0 mm. If “All Size” is selected as paper size, the entered adjustment value will be applied to all sizes. If specific paper size is selected, adjustment value will be the sum of the entered value and the value previously specified for “All Size”.

  • Page 318: Perfect Binder Adjustment

    Adjustment 9.14 06 Perfect Binder Adjustment 01 Cover Trimming Adjustment Perform this adjustment to increase/decrease the trimming width of the right cover page determined in Perfect Binding mode. Reminder Be sure to perform 02 Cover Lead Edge Adjustment before this adjust- ment.
  • Page 319 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [01 Cover Trimming Adjustment] to display the Cover Trimming Adjustment Screen. Touch [Next] or [Back] to select the tray (Main Tray or PB Tray) to feed the cover.
  • Page 320 Adjustment Use the touch panel keypad to enter the desired adjustment value, then touch [Set]. Available range: -128 (short) to +127 (long), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is ob- tained.
  • Page 321 Adjustment 02 Cover Lead Edge Adjustment Perform this adjustment for the position of left cover page determined in Per- fect Binding mode. bizhub PRO 1050P/1050eP 9-79...
  • Page 322 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [02 Cover Lead Edge Adjustment] to display the Cover Lead Edge Adjustment Screen. Touch [Main Tray] or [PB Tray] to select the tray to feed the cover. Touch [Next] or [Back] to select the paper size of the body set to be at- tached with the cover.
  • Page 323 Adjustment Touch [Return] to restore the Perfect Binder Adjustment Mode Menu Screen. Details If “All Size” is selected as paper size, the entered adjustment value will be applied to all sizes. If specific paper size is selected, adjustment value will be the sum of the entered value and the value previously specified for “All Size”.
  • Page 324 Adjustment 03 Spine Corner Forming Position Adjustment Perform this adjustment to regulate the position when forming the spine cor- ner of the cover. 9-82 bizhub PRO 1050P/1050eP...
  • Page 325 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [03 Spine Corner Forming Position Adjustment] to display the Spine Corner Forming Position Adjustment Screen. Touch the [COPY] tab to display the Copy Screen. Select the PB tray or desired main body tray, then press [Start]. A sample pattern of perfect-bound book will be output.
  • Page 326 Adjustment 04 Pasting Start Position Adjustment Perform this adjustment for the position to start pasting on the body set. 9-84 bizhub PRO 1050P/1050eP...
  • Page 327 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [04 Pasting Start Position Adjustment] to display the Pasting Start Position Adjustment Screen. Touch [Go Ahead] or [Go Back] to select the direction to start pasting. Touch [Next] or [Back] to select the paper size of the body set.
  • Page 328 Adjustment Touch [Return] to restore the Perfect Binder Adjustment Mode Menu Screen. Reminder If “All Size” is selected as paper size, the entered adjustment value will be applied to all sizes. If specific paper size is selected, adjustment value will be the sum of the entered value and the value previously specified for “All Size”.
  • Page 329 Adjustment 05 Pasting Finish Position Adjustment Perform this adjustment for the position to finish pasting on the body set. bizhub PRO 1050P/1050eP 9-87...
  • Page 330 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [05 Pasting Finish Position Adjustment] to display the Pasting Finish Position Adjustment Screen. Touch [Go Ahead] or [Go Back] to select the direction to finish pasting. Touch [Next] or [Back] to select the paper size of the body set.
  • Page 331 Adjustment Touch [Return] to restore the Perfect Binder Adjustment Mode Menu Screen. Details If “All Size” is selected as paper size, the entered adjustment value will be applied to all sizes. If specific paper size is selected, adjustment value will be the sum of the entered value and the value previously specified for “All Size”.
  • Page 332 Adjustment 06 Paste Formation Finish Position Adjustment Perform this adjustment for the position to finish equalizing the paste applied on the body set. 9-90 bizhub PRO 1050P/1050eP...
  • Page 333 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [06 Paste Formation Finish Position Adjustment] to display the Paste Formation Finish Position Adjustment Screen. Touch [Next] or [Back] to select the paper size of the body set. Touching [Next] continuously will change the paper size as follows.
  • Page 334 Adjustment 07 Temperature Adjustment Perform this adjustment to control the condition of paste to be dried by set- ting the temperature on the following sensors inside the melt tank. - Melt Tank -Top: Melt tank temperature sensor/ Up (TH2) - Melt Tank -Mid: Melt tank temperature sensor/ Md (TH3) - Melt Tank -Low: Melt tank temperature sensor/ Lw (TH4) - Pasting Roller: Pasting roller temperature sensor (TH1) Reminder...
  • Page 335 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [07 Temperature Adjustment] to display the [Temperature Ad- justment Screen]. Touch the [COPY] tab to display the Copy Screen. Select the PB tray or desired main body tray, then press [Start]. A sample pattern of perfect-bound book will be output.
  • Page 336 Adjustment Repeat the adjustment steps from 3 to 8 until the desired result is ob- tained. Touch [Return] to restore the Perfect Binder Adjustment Mode Menu Screen. 9-94 bizhub PRO 1050P/1050eP...
  • Page 337 Adjustment 08 Sub Compile CD Width Adjustment Perform this adjustment for the width in horizontal scanning direction of the body set. Details Use this adjustment if the horizontal scanning direction is unequal on all pages of the body set. If unequalness appears mainly on the latter half of body pages, use 09 Clamp CD Width Adjustment instead.
  • Page 338 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [08 Sub Compile CD Width Adjustment] to display the Sub Com- pile CD Width Adjustment Screen. Touch [Next] or [Back] to select the paper size of the body set. Touching [Next] continuously will change the paper size as follows.
  • Page 339 Adjustment Repeat the adjustment steps from 3 to 8 until the desired result is ob- tained. Touch [Return] to restore the Perfect Binder Adjustment Mode Menu Screen. Details If “All Size” is selected as paper size, the entered adjustment value will be applied to all sizes.
  • Page 340 Adjustment 09 Clamp CD Width Adjustment Perform this adjustment for the width in horizontal scanning direction of the body set. Details Use this adjustment if the horizontal scanning direction is unequal on the latter half of body pages. If unequalness appears on all pages, use 08 Sub Compile CD Width Adjustment instead.
  • Page 341 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [09 Clamp CD Width Adjustment] to display the Clamp CD Width Adjustment Screen. Touch [Next] or [Back] to select the paper size of the body set. Touching [Next] continuously will change the paper size as follows.
  • Page 342 Adjustment Repeat the adjustment steps from 3 to 8 until the desired result is ob- tained. Touch [Return] to restore the Perfect Binder Adjustment Mode Menu Screen. Details If “All Size” is selected as paper size, the entered adjustment value will be applied to all sizes.
  • Page 343 Adjustment 10 Cover Up/Down CD Width Adjustment Perform this adjustment for the horizontal scanning position of the body set and cover. bizhub PRO 1050P/1050eP 9-101...
  • Page 344 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [10 Cover Up/Down CD Width Adjustment] to display the Cover Up/Down CD Width Adjustment Screen. Touch [Next] or [Back] to select the tray (Main Tray or PB Tray) to feed the cover.
  • Page 345 Adjustment 11 Clamp FD Position Adjustment Perform this adjustment for the width in vertical scanning direction of the body set. bizhub PRO 1050P/1050eP 9-103...
  • Page 346 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Perfect Binder Ad- justment]. Touch [11 Clamp FD Position Adjustment] to display the Clamp FD Po- sition Adjustment Screen. Touch [Next] or [Back] to select the paper size of the body set. Touching [Next] continuously will change the paper size as follows.

  • Page 347: Trimmer Count Adjustment

    Adjustment 9.15 07 Trimmer Count Adjustment Very often used, the trimmer receiver of the Saddle Stitcher SD-501 may be worn out sooner than expected, with the result that the trimming mode may not function properly. Perform this adjustment to select the count of the trimmer receiver from 300, 500, and 700 times, so that the machine could slightly change the position of trimmer receiver after the set count has passed in order to improve its functionability.
  • Page 348 Adjustment Procedure Touch [Adjustment] - [02 Finisher Adjustment] - [06 Trimmer Count Ad- justment] to display the Trimming Receiver Count Screen. Touch the display count key to highlight it. Touch [OK] to complete the setting and return to the Finisher Adjust- ment Screen.

  • Page 349: Controller Setting

    Controller Setting...

  • Page 351: Function Overview

    Controller Setting Controller Setting 10.1 Function Overview Setting change concerning the printer controller is available from the Con- troller Setting Menu Screen. Touch [Controller] on the Machine Status Screen. The Controller Setting Menu Screen will be displayed. The menu comprises the following settings. 01 Report Type Use this function to print out the report type selected from the screen.

  • Page 352: Printer Setting

    Controller Setting 02 Printer Setting Various printer settings are available from this screen. It may not operate properly depending upon the combination of settings selected. Menu Items Description Setting Options (default is italic) Specify the default output setting 1-6 ( for each number.
  • Page 353 Controller Setting Menu Items Description Setting Options (default is italic) 14 Paper Size Select the paper size to be initially A3, B4, A4, B5, A5, 8×13, used. 8.25×13, 8.125×13, 12×18, When specifing tabs, select the 11×17, 8.5×14, 8.5×13, 8.5×11, number of tabs as well. 5.5×8.5, A3W, B4W, A4W, B5W, 12×18W, 11×17W, 8.5×14W, 8.5×11W, 5.5×8.5W, 8K, 16K,...

  • Page 354: Interface Setting

    Controller Setting Menu Items Description Setting Options (default is italic) 07 CR/LF Mapping Select the line feed code. , CR, LF, CRLF 03 PS Setting(Option) 01 Print to PS Error Select to print the error report OFF, when an error occurs while raster- izing PostScript data.

  • Page 355: Report Type

    Controller Setting 10.2 01 Report Type Use this function to print out the report type selected from the screen. Procedure Touch [Controller] - [01 Report Type] Touch the desired report type key to select it. Touch [Execute]. The Controller Setting Menu Screen will be restored, and the Data LED on the control panel blinks to indicate that the printing operation is in progress.
  • Page 356 Controller Setting If further changes are required, touch the desired key. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. 10-8 bizhub PRO 1050P/1050eP...

  • Page 357: Printer Setting

    Controller Setting 10.3 02 Printer Setting Use this function to register the desired output form. Six types can be spec- ified at maximum. Specify the setting number (1 to 6) first, then specify the following four printer settings for that number. 01 Basic Setting specifies basic settings for printer.
  • Page 358 Controller Setting Use the touch screen keypad to enter the setting number for your setting. Available range is from 1 to 6. Touch [Set] to complete the setting. If wrong number is entered, touch [Reset] to reenter the correct number. Perform the Basic Setting.
  • Page 359 Controller Setting Touch [01 Basic Setting]. The Basic Setting Menu Screen will be dis- played. Make the desired setting. Touch [Next] or [Forward] to scroll to the de- sired item. The following settings are used unless otherwise specified by the print- er driver.
  • Page 360 Controller Setting 20 Booklet: Select to use the Booklet function. 21 Adhesive Binding: Select to use the Adhesive binding mode. 22 Print Position: Select the initial print position. 23 Pile Permission Select to permit piling up the output sheets. Touch [Return] to complete the setting and restore the Printer Setting Screen.
  • Page 361 Controller Setting Make the desired setting. 01 Font Source: Select the medium of font source. 02 Font Number: Specify the font number available from the font source. 03 Symbol Set: Specify the symbol set. 04 Form lines: Specify the number of lines per page. 05 Font point size: Specify the font size by point.
  • Page 362 Controller Setting Touch [03 PS Setting]. The PS Setting Screen will be displayed. Make the desired setting. 01 Print PS Error: Select to print the error report when an error occurs while rasteriz- ing PostScript data. 02 PDF -> PS Conversion error control: Select ON to stop printing error pages resulted from the memory overflow.
  • Page 363 Controller Setting Make the desired setting. 01 Auto Paper Select: Select to use APS function. 02 Image Position: Select the image position to be printed on a page. Touch [OK] to complete the setting. The TIFF Setting Menu Screen will be restored.

  • Page 364: Select Printer Setting

    Controller Setting 10.4 03 Select Printer Setting Select the default port number, and specify the output format for each port. Procedure Touch [Controller] - [03 Select Printer Setting]. Touch the key to be specified, then use the touch screen keypad to en- ter the desired number.
  • Page 365 Controller Setting If further changes are required, touch the desired key. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. bizhub PRO 1050P/1050eP 10-17...

  • Page 366: Spool

    Controller Setting 10.5 04 Spool Select to enable, disable, or automatically perform the spool function. Procedure Touch [Controller] - [04 Spool]. Touch the desired key to select it. Touch [OK] to complete the setting. The Controller Setting Menu Screen will be restored. If further changes are required, touch the desired key.

  • Page 367: Interface Setting

    Controller Setting 10.6 05 Interface Setting Set the time for Parallel Timeout and Network Timeout. Procedure Touch [Controller] - [05 Interface Setting]. Touch [Parallel Timeout] or [Network Timeout]. Use the touch screen keypad to enter the time, then touch [Set]. The available range is from 10 to 300.
  • Page 368 Controller Setting If further changes are required, touch the desired key. Touch the [MACHINE] tab to complete the setting and restore the Ma- chine Status Screen. 10-20 bizhub PRO 1050P/1050eP...

  • Page 369: Utility Screen Setting

    Utility Screen Setting...

  • Page 371: Utility Screen Setting Outlines

    Utility Screen Setting Utility Screen Setting 11.1 Utility Screen Setting Outlines Press [Utility/Counter] on the control panel to display the Utility Menu Screen. The Utility Screen includes two types of setting items: one in which a user can set and the other in which a machine manager is required to enter a password.
  • Page 372 Utility Screen Setting Details The machine manager setting can be established by the user in the initial setting. It is recommended to assign the machine manager who will be the sole person to control the machine manager setting. Please contact your service representative to set up your password.
  • Page 373 Utility Screen Setting List of the function settings 01 System Setting Setting options (italic: default) English 01 Language Setting Select the language used in the LCD. 02 Buzzer Setting , Big/Small 01 Buzzer On/Off, Volume Setting Set the buzzer sound (the touch key sound) as touch- ing the screen.
  • Page 374 Utility Screen Setting 02 Function Setting Setting options (italic: default) Auto Image Shift (Tab Print) Select whether or not to print the standard-sized orig- inal having tab part image printed on the right edge properly onto tabbed copy paper by shifting the scanned image 12.5 mm to the right side.
  • Page 375 Utility Screen Setting 04 Machine Manager Setting 0000 (4 digits) 05 Set Password for Timer Interrupt The password is required to enter when using the ma- chine by interrupting the Weekly Timer mode. Use this function to set the password. 04 Management List Print Mode Memory List Output the list of programmed contents of Mode...
  • Page 376 Utility Screen Setting 04 Machine Manager Setting Section No./Section name/Pass- 02 Volume Track Set the volume track setting. Change, Add or Delete word/Limit is available. 03 User Authentication Set User No./User Name/Password/Be- Register, Change, Add or Delete the user authentica- long Section/Useable Function tion when the User Authentication is set in "01>01 Au- (Copy, Scanner, Store/Recall, Print-...
  • Page 377 Utility Screen Setting 04 Machine Manager Setting 12 PSWC (For details, refer to “12 PSWC” on page 13-98.) Set to use PSWC. 13 Network Setting Clear (For details, refer to “13 Network Setting Clear” on page 13-100.) Restore the network settings to the factory default setting.
  • Page 378 Utility Screen Setting 11-10 bizhub PRO 1050P/1050eP...

  • Page 379: User Setting

    User Setting...

  • Page 381: System Setting

    User Setting User Setting 12.1 01 System Setting 12.1.1 01 Language Setting Select the language used in the touch panel. The initial setting is American English. Procedure Touch [01 System Setting] - [01 Language Setting]. Select the desired English mode. Touch [OK] to complete the setting and return to the Utility Menu Screen.

  • Page 382: Buzzer Setting

    User Setting 12.1.2 02 Buzzer Setting 01 Buzzer ON/OFF, Volume Setting Set the buzzer sound (the touch key sound) as touching the screen, and also select the buzzer volume. 12-4 bizhub PRO 1050P/1050eP...
  • Page 383 User Setting Procedure Touch [01 System Setting] - [02 Buzzer Setting]. Touch [01 Buzzer On/Off, Volume Setting]. Touch [On] to highlight it. Adjust the Buzzer volume, as desired. Touch [Small] or [Big] to regulate the buzzer volume of the touch keys.Touch [Off] to highlight it.
  • Page 384 User Setting 02 Buzzer for Job Stop Setting Select the duration of the buzzer sound when the machine stops 12-6 bizhub PRO 1050P/1050eP...
  • Page 385 User Setting Procedure Touch [01 System Setting] - [02 Buzzer Setting]. Touch [02 Buzzer for Job Stop Setting]. Select the desired time to highlight it. Touch [OK] to complete the setting and return to the Buzzer Setting Screen. Touch [Return] to restore the Utility Menu Screen. bizhub PRO 1050P/1050eP 12-7...

  • Page 386: 1Shot Indication Time

    User Setting 12.1.3 03 1SHOT Indication Time Select the SHOT indication time to be displayed in the message indication area of the touch panel. Procedure Touch [01 System Setting] - [03 1 SHOT Message Indication Time]. Touch [3 seconds] or [5 seconds] to highlight it. Touch [OK] to complete the setting and return to the Utility Menu Screen.

  • Page 387: Default Screen Setting

    User Setting 12.1.4 04 Default Screen Setting Select the initial screen to be displayed when the power switch is turned on. Procedure Touch [01 System Setting] - [04 Default Screen Setting]. Select the desired initial screen to highlight it. Touch [OK] to complete the setting and return to the Utility Menu Screen.

  • Page 388: Auto Reset Setting

    User Setting 12.1.5 05 Auto Reset Setting Set the reset interval starting from the completion of a printing job until the machine returns to the initial screen, without selecting any key on the touch panel or the control panel. Procedure Touch [01 System Setting] - [05 Auto Reset Setting].

  • Page 389: Key Response Time

    User Setting 12.1.6 06 Key Response Time Select the response time between touching the key and the machine re- sponses to it. Procedure Touch [01 System Setting] - [06 Key Response Time]. Select the desired time to highlight it. Touch [OK] to complete the setting and return to the Utility Menu Screen.

  • Page 390: Change User Password

    User Setting 12.1.7 07 Change User Password Change a user password which the user has registered for user authentica- tion. Details The changed password is reflected to the user authentication setting de- scription. 12-12 bizhub PRO 1050P/1050eP...
  • Page 391 User Setting Procedure Touch [01 System Setting] - [07 Change User Password]. Enter the user name and the password then touch [OK]. Enter a new user password in [New Password]. Reenter the new user password in [Check Input]. Touch [OK] to complete the setting and return to the Utility Menu Screen.

  • Page 392: Function Setting

    User Setting 12.2 02 Function Setting 12.2.1 01 Feed Tray Setting 01 Feed Tray Auto Selection Select the tray size setting to be detected when ATS functions. You may also select the priority of the detection for each tray. 12-14 bizhub PRO 1050P/1050eP...
  • Page 393 User Setting Procedure Touch [02 Function Setting] - [01 Feed Tray Setting]. Touch [01 Feed Tray Auto Selection]. Touch to highlight the desired tray key under [ATS/APS Switch]. The selected tray is automatically detected when ATS functions. The trays not selected will not be detected even when ATS functions. The selected tray will be displayed under [Tray Priority] as the tray key.

  • Page 394: Ats Permit

    User Setting 12.2.2 02 ATS Permit Set ATS On or Off. 12-16 bizhub PRO 1050P/1050eP...
  • Page 395 User Setting Procedure Touch [02 Function Setting] - [01 Feed Tray Setting]. Touch [02 ATS Permit]. Select [On] when ATS is used, and [Off] when ATS is not used. Touch [OK] to complete the setting and return to the Feed Tray Setting Menu Screen.

  • Page 396: Each Function Setting

    User Setting 12.2.3 02 Each Function Setting Use this function to make the following four settings. - Select to enter a decimal point for image shift. - Select the interval time that printing via PC is prohibited after touching a touch key on the touch panel.
  • Page 397 User Setting Procedure Touch [02 Function Setting] - [02 Each Function Setting]. Touch [Decimal On] or [Decimal Off] to specify image shift in decimal point or not. Select the desired interval time key of the right side of [Printer Prohibit Timer] to set the timer. Touch [On] or [Off] for each of Needless Tab Paper Exit and Auto Image Shift (Tab Print) to specify whether or not to use those func- tions.

  • Page 398: Tandem Setting

    User Setting 12.2.4 03 Tandem Setting The following settings are provided for the tandem output mode, which is specified on the master machine and used to distribute plural number of print quantity among two machines (master and tandem). 01 Tandem Machine One Time Data Read: On/Off Select [Off] so that both master and tandem machines start printing at the same time, while the master machine continues scanning the image data.
  • Page 399 User Setting bizhub PRO 1050P/1050eP 12-21...
  • Page 400 User Setting Procedure Touch [02 Function Setting] - [05 Tandem Setting]. Touch the item key (from 01 to 04) and make a selection for each. Touch [01 Tandem Machine One Time Data Read], select [On] or [Off], then touch [OK]. Touch [02 Tandem Machine Wait/Proof], select [Permit] or [Prohib- it], then touch [OK].

  • Page 401: Touch Screen Adjustment

    User Setting 12.2.5 03 Touch Screen Adjustment Use this function to check the touch screen and realign the position of the touch sensor that may have shifted. Details The Touch Screen Adjustment Screen can be displayed on the Utility Menu Screen by pressing [3] of the control panel keypad. Service can set the machine to forbid users to access this function from the menu and to display the Touch Screen Adjustment Screen only when pressing [3] with the Utility Menu Screen displayed.
  • Page 402 User Setting If the coordinates fall out of the range of the standard value in step 3, or the buzzer tone does not sound in step 4, repeat the adjustment pro- cedure from steps 2 to 4 or contact your service representative. Press [1] of the control panel keypad to return to the screen before pressing Utility/Counter...

  • Page 403: Machine Manager Setting

    Machine Manager Setting...

  • Page 405: Machine Manager Setting Outlines

    Machine Manager Setting Machine Manager Setting 13.1 Machine Manager Setting Outlines This section describes the items which the machine manager can set on the Utility/Counter Screen, and the procedure of setting these items. In the initial condition, the machine manager setting can be specified without entering the machine manager password.
  • Page 406 Machine Manager Setting How to access the Machine Manager Setting Menu Press [Utility/Counter] on the control panel to display the Utility Menu Screen. Touch [04 Machine Manager Setting]. 13-4 bizhub PRO 1050P/1050eP...
  • Page 407 Machine Manager Setting The Machine Manager Setting Menu is displayed. When the Password Input Screen is displayed, enter the eight-digit ma- chine manager password, then touch [OK] Set each function items. Touch [Return] to restore the Utility Menu Screen. bizhub PRO 1050P/1050eP 13-5...

  • Page 408: System Setting

    Machine Manager Setting 13.2 01 System Setting 13.2.1 01 Power Save Setting Specify Auto Low Power or Auto Shut Off when setting the Power Save mode manually, and select the interval of time that must elapse before Auto Low Power and Auto Shut Off. Procedure Touch [01 System Setting] - [01 Power Save Setting].
  • Page 409 Machine Manager Setting Select the interval of time that must elapse before turning to Auto Low Power automatically. Touch the arrow keys (,) and (+) in each area to select a specific waiting period before activating Auto Low Power. The initial setting is 15 minutes. Note The period of time selected for Auto Low Power cannot exceed the Auto Shut Off setting.

  • Page 410: Time And Date Setting

    Machine Manager Setting 13.2.2 02 Time and Date Setting Set the current date and time, the summer time, and also the time difference. The default setting for the summer time is off. Procedure Touch [01 System Setting] - [02 Time and Date Setting]. Adjust the present time.
  • Page 411 Machine Manager Setting Set the summer time. The summer time is initially deactivated. To activate the summer time (Daylight Savings Time) function, touch [Summer Time] to highlight it. The Present time will gain one hour. The Difference in time setting is provided in order to give the time dif- ference information at the same time when an e-mail is received.

  • Page 412: Weekly Timer Setting

    Machine Manager Setting 13.2.3 03 Weekly Timer Setting This function can be accessed only by the machine manager. The Weekly Timer is a machine management function that shuts down power to the machine on a daily or hourly basis, and can be programmed specifi- cally for lunch breaks, weekends and holidays, or any time the copier is not required.
  • Page 413 Machine Manager Setting 01 Weekly Timer On/Off Setting Enable and disable the Weekly Timer function. bizhub PRO 1050P/1050eP 13-11...
  • Page 414 Machine Manager Setting Procedure Touch [01 System Setting] - [03 Weekly Timer Setting] - [01 Weekly Timer On/Off Setting]. Touch [Weekly timer On] to activate Weekly Timer, or touch [Weekly timer Off] to deactivate Weekly Timer. The default setting is [Weekly Timer Off].
  • Page 415 Machine Manager Setting 02 Timer Setting Use this function to set the On/Off times in hours and minutes for each day of the week or set the collective time for the entire week, i.e., the same On/ Off time for a certain day of the week. bizhub PRO 1050P/1050eP 13-13...
  • Page 416 Machine Manager Setting Procedure Touch [01 System Setting] -[ 03 Weekly Timer Setting] - [02 Timer Set- ting]. When the Timer Setting Screen is displayed, the On-time of Monday is always highlighted. Enter a two-digit On-hour (ex. 8 a.m. is 08) and a two-digit On-minute (ex.
  • Page 417 Machine Manager Setting When this screen is displayed, the On and Off times are always set at 00:00~00:00. Touch to highlight the day(s) of the week to be set. More than one can be selected at a time. Enter the On-time and Off-time using the touch panel keypad, and then touch [Set] after each entry.
  • Page 418 Machine Manager Setting 03 Timer Action On/Off Setting Use this function to set the timer On/Off for a given day of a given month. Set the On-Off condition for specific days individually or collectively for all Mon- days through Sundays of the given month. Note The default setting is collective: On for Mondays through Saturdays, and Off for Sundays.
  • Page 419 Machine Manager Setting Procedure Touch [01 System Setting] - [03 Weekly Timer Setting] - [03 Timer Ac- tion On/Off Setting]. Use the arrow keys (,) and (+) to scroll to the desired month. Touch the key for the desired day to activate the timer on the calendar dis- played on the center of the screen.
  • Page 420 Machine Manager Setting 04 Lunch Hour Off Setting The Weekly Timer function turns the machine On and Off once a day. Use the Lunch Hour Off Setting to shut down the power during the lunch break and then turn it on again according to the Weekly Timer function setting. Only one off-time interval can be programmed.
  • Page 421 Machine Manager Setting Procedure Touch [01 System Setting] - [03 Weekly Timer Setting] - [04 Lunch Hour Off Setting]. Touch [Function Valid] to activate the Lunch hour off function. Set Off- time and Restart time using the touch panel keypad, and then touch [Set] after each entry.
  • Page 422 Machine Manager Setting 05 Set Password for Timer Interrupt Use this password setting mode to establish a four-digit password required for using the Timer Interrupt function. The default password of 0000 allows the timer function to be interrupted without entering the password. 13-20 bizhub PRO 1050P/1050eP...
  • Page 423 Machine Manager Setting Procedure Touch [01 System Setting] - [03 Weekly Timer Setting] - [05 Set Pass- word for Timer Interrupt]. Use the touch panel keypad to enter a four-digit password. Note When the password setting is 0000, Timer Interrupt can be used simply by turning the machine off, then on.

  • Page 424: Management List Print

    Machine Manager Setting 13.2.4 04 Management List Print Use this function to print out the list selected from the following items. User management list Home position settings selected by user Use management list Information controlled by user authentication or division authentication 13-22 bizhub PRO 1050P/1050eP...
  • Page 425 Machine Manager Setting Font pattern list Font patterns used in the machine bizhub PRO 1050P/1050eP 13-23...
  • Page 426 Machine Manager Setting Audit log report Audited log 13-24 bizhub PRO 1050P/1050eP...
  • Page 427 Machine Manager Setting Procedure Touch [01 System Setting] - [04 Management List Print]. Touch any key to print the list. Touch the [PRINT] tab to start printing the selected list. To suspend printing, press [Stop]. Touch the [UTILITY] tab to return to the Management List Print Screen.

  • Page 428: Perfect Binding Setting

    Machine Manager Setting 13.2.5 05 Perfect Binding Setting 01 Useful Paper Weight Select Use this function to specify the paper weight available for each of body and cover when using Perfect Binder. 13-26 bizhub PRO 1050P/1050eP...
  • Page 429 Machine Manager Setting Procedure Touch [01 System Setting] - [05 Perfect Binding Setting] - [01 Useful Paper Weight Select]. Touch the desired paper weight key for each of P.B. Body and Cover to highlight it. Note If one of the paper weight selected here is not specified for the tray to be used in the perfect binding mode, the binding operation will become un- available with an “unsuitable”...
  • Page 430 Machine Manager Setting 02 Paper Count Limit for Perfect Binding Use this function to specify the minimum and maximum paper count to be bound each for paper weight. 13-28 bizhub PRO 1050P/1050eP...
  • Page 431 Machine Manager Setting Procedure Touch [01 System Setting] - [05 Perfect Binding Setting] - [02 Paper Count Limit for Perfect Binding]. Touch the desired minimum and maximum count limit keys for each paper weight to highlight it. Touch [OK] to complete the setting and return to the Perfect Binding Setting Menu Screen.
  • Page 432 Machine Manager Setting 03 Stop Setting for P. B. Cover Unfit Length Use this function to stop/continue the current job when the cover width is not suitable for the body paper size and thickness. 13-30 bizhub PRO 1050P/1050eP...
  • Page 433 Machine Manager Setting Procedure Touch [01 System Setting] - [05 Perfect Binding Setting] - [03 Stop Set- ting for P. B. Cover Unfit Length]. Touch [Temporary Stop] or [Not Temporary Stop] to highlight it. Touch [OK] to complete the setting and return to the Perfect Binding Setting Menu Screen.

  • Page 434: Manager/Machine Register

    Machine Manager Setting 13.3 02 Manager/Machine Register 13.3.1 01 Machine Manager Register Use this function to register the machine manager name and the extension number which are displayed on the left side of the Utility Menu Screen. 13-32 bizhub PRO 1050P/1050eP...
  • Page 435 Machine Manager Setting Procedure Touch [02 Manager/Machine Register] - [01 Machine Manager Regis- ter]. Touch [Name Input] to display the Machine Manager Name Input Screen. Use the touch panel keypad to register the machine manager name. The eight characters including a hyphen (-) can be entered. Touch [OK] to complete the setting to return to the previous screen.

  • Page 436: Use Auth./Volume Track

    Machine Manager Setting 13.4 03 Use Auth./Volume Track 13.4.1 01 Authentication Method Use this function to select any function of User Authentication and Volume Track. Authentication settings can be altered according to the user authen- tication and volume track settings. 01 Authentication Setting Establish the authentication settings by combining the following six ele- ments.
  • Page 437 Machine Manager Setting bizhub PRO 1050P/1050eP 13-35...
  • Page 438 Machine Manager Setting Procedure Touch [03 User Auth./Volume Track] - [01 Authentication Method] - [01 Authentication Setting]. Select [On] or [Off] on the right side of [User Authentication], [Section Authentication], [Section Name Input], and [User/Section Auth. Con- nect]. Select [At Auto Reset] or [At JOB Complete] on the right side of [Pass- word Input Timing].
  • Page 439 Machine Manager Setting 02 Section Management Setting Use this function to set Printer jobs managed by the section, and select the machine condition in which the machine stops due to reaching the print limit. Details If [Printer] is set to Off when Section Authentication is set to On on the Authentication Method Setting Screen, the section password is not re- quired to enter for authentication.
  • Page 440 Machine Manager Setting Procedure Touch [03 User Auth./Volume Track] - [01 Authentication Method] - [02 Section Management Setting]. Select [On] or [Off] on the right side of [Printer]. Select [Immediately], [After Print], or [Warning Only] on the right side of [Limit Reached Stop Setting].

  • Page 441: Volume Track

    Machine Manager Setting 13.4.2 02 Volume Track Use this function to assign a number to each section, and set a section name, password and limit value to each number. The registered section management setting is listed on the screen. Select the section management setting from the list and change, reset or delete the setting.
  • Page 442 Machine Manager Setting 13-40 bizhub PRO 1050P/1050eP...
  • Page 443 Machine Manager Setting bizhub PRO 1050P/1050eP 13-41...
  • Page 444 Machine Manager Setting Procedure Touch [03 User Auth./Volume Track] - [02 Volume Track]. Follow the instructions below for adding, changing and deleting the section setting, and also resetting the print count. To change section settings: Touch [Next] or [Previous] to display the section name to be changed and touch to highlight it.
  • Page 445 Machine Manager Setting Touch [Password] to display the input screen. Enter the password and touch [OK]. You may enter eight digits for the password. For the details on entering texts in the input screen, see the appendix. Touch [Limit] to display the input screen. Enter the print limit value and touch [OK].

  • Page 446: User Authentication Set

    Machine Manager Setting 13.4.3 03 User Authentication Set Use this function to assign a number to each user, and set a user name, password and limit value to each number. The registered user setting is listed on the screen. Select the user setting from the list and change, reset or delete the setting.
  • Page 447 Machine Manager Setting bizhub PRO 1050P/1050eP 13-45...
  • Page 448 Machine Manager Setting 13-46 bizhub PRO 1050P/1050eP...
  • Page 449 Machine Manager Setting Procedure Touch [03 User Auth./Volume Track] - [03 User Authentication Set]. Follow the instructions below for adding, changing and deleting the user setting, and also resetting the print count. To change user settings: Touch [Next] or [Previous] to display the user name to be changed and touch to highlight it.
  • Page 450 Machine Manager Setting Details When [User/Section Auth. Connect] is set to On on the Authentication Method Setting Screen, [Belong Section] can be specified. Touch any key on the right side of [Usable Function] to select the job necessary to authenticate a newly registered user. Touch [OK] to complete the setting.
  • Page 451 Machine Manager Setting To reset all count: Touch [All Count Reset] to display the Reset Confirmation popup screen. Touch any key to reset. Touch [Cancel] when not resetting. Touch [OK] to complete the setting and return to the Authentication Method Setting Menu Screen. Touch [Return] to restore the Machine Manager Setting Menu Screen.

  • Page 452: Non Register/Output Set

    Machine Manager Setting 13.4.4 04 Non register/Output Set Use this function to limit the output setting of an unregistered user or section. When this function is set to On, only the initial output setting can be set to any job under a condition of which user authentication and/or section au- thentication is set to Off.

  • Page 453: Network Setting

    Machine Manager Setting 13.5 04 Network Setting 13.5.1 01 Machine NIC Setting Control the NIC settings such as the IP address and line speed of the ma- chine. bizhub PRO 1050P/1050eP 13-51...
  • Page 454 Machine Manager Setting Procedure Touch [04 Network Setting] - [01 Machine NIC Setting]. Specify the following items. Enter numeric values using the touch panel keypad. After entering a value, touch [Set]. The next item becomes highlighted for setting. Con- tinue in this manner. IP Address Enter the IP address of the machine.

  • Page 455: Controller Nic Setting

    Machine Manager Setting 13.5.2 02 Controller NIC Setting Specify the controller settings. Various default settings or network settings can be customized as required. List of the Network Settings Specify the settings for connecting a network printer, and the settings for TCP/IP, RAW port numbers, IP Filter (permission/denial), and ping.
  • Page 456 Machine Manager Setting Specific setting and Description Setting options (italic: default) TCP/IP Filter denial settings * Specify to use the denial settings or not, and the range in which to deny connections. 0.0.0.0 - 0.0.0.0 (0 - 255) Network Test Ping Address Max.
  • Page 457 Machine Manager Setting Specify the settings for connecting network printer, and the NetWare set- tings. For details, refer to “02 NetWare” on page 13-69. Specific setting and Description Setting options (italic: default) 02 NetWare NetWare NetWare is selected, Novell NetWare (IPX/SPX) is en- Use/ Not Use abled as the print server protocol.
  • Page 458 Machine Manager Setting Specific setting and Description Setting options (italic: default) 02 NetWare NetWare Nprinter / Rprinter, NetWare Status Setting (continued) Select between 0 and 255. Printer Number Specify the printer number. File Server Name Specify file server names. Max. 10 servers can be displayed. Queue Name Specify queue names.
  • Page 459 Machine Manager Setting Specify the settings for connecting network printer and the IPP settings. For details, refert to “03 IPP” on page 13-73. Specific setting and Description Setting options (italic: default) 03 IPP Specify to use IPP or not. /Not Use IPP Print Job Accept Specify to accept IPP print jobs.
  • Page 460 Machine Manager Setting Specify to use a machine as an FTP server. For details, refer to “04 FTP” on page 13-76. Specific setting and Description Setting options (italic: default) 04 FTP Server Specify to use the machine as an FTP server. /Not Use Specify the SNMP settings.
  • Page 461 Machine Manager Setting Specify the settings for connecting network printer and the AppleTalk set- tings. For details, refer to “07 AppleTalk” on page 13-82. Specific setting and Description Setting options (italic: default) 07 AppleTalk AppleTalk Selecting enables AppleTalk as the print server Use/ Not Use protocol.
  • Page 462 Machine Manager Setting Specific setting and Description Setting options (italic: default) Authentication Setting SMTP Authentication * Specify to use the SMTP authentication. Specify as required in your own environment. POP before SMTP Specify the duration used for POP before SMTP. 0 - 60 seconds ( SMTP Auth.
  • Page 463 Machine Manager Setting Specify the Alert Mail settings. For details, refer to “09 Alert Mail” on page 13-89. Specific setting and Description Setting options (italic: default) 09 Alert Mail E-Mail Transmission Specify to use e-mail transmission for alert notification. Max. 250 characters combining Inform E-Mail Trans.
  • Page 464 Machine Manager Setting Specific setting and Description Setting options (italic: default) Max. 15 characters combining Password Specify a password. symbols and alphanumerics can be used. Realm Max. 255 characters combining Specify a realm (domain name). If the SMTP server symbols and alphanumerics can with which to communicate requires a realm, this be used.
  • Page 465 Machine Manager Setting Specify the settings for third party applications. For details, refer to “11 AP I/ F” on page 13-96. Specific setting and Description Setting options (italic: default) 11 AP I/F AP I/F Specify to use AP I/F. /Not Use AP I/F over SSL If SSL is used for PSWC communication, this setting is Use/...
  • Page 466 Machine Manager Setting Specify the SNMP Trap settings. For details, refer to “14 SNMP Trap” on page 13-102. Specific setting and Description Setting options (italic: default) 14 SNMP Trap SNMP Trap Transmission Specify to transmit SNMP Trap or not. Authentication Failure Trans Specify to transmit by SNMP in the case that any au- thentication failure in Read Community Name or Write Community Name of SNMP occurs.
  • Page 467 Machine Manager Setting 01 TCP/IP Specify the settings for connecting a network printer, and the settings for TCP/IP, RAW port numbers, IP Filter (permission/denial), and ping. bizhub PRO 1050P/1050eP 13-65...
  • Page 468 Machine Manager Setting 13-66 bizhub PRO 1050P/1050eP...
  • Page 469 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [01 TCP/IP]. For each item, select or enter a required value. Use [Previous] or [Next] as required. TCP/IP Select [Enable] or [Disable]. DHCP Select [Enable] or [Disable]. IP Address Touch [IP Address] to display an address input screen.
  • Page 470 Machine Manager Setting Network Speed Select an appropriate key. TCP/IP RAW port settings Touch an appropriate RAW port number to display a touch panel keypad input screen. After entering in the field, touch [OK]. To specify to use individual ports or not, select [Use] or [Not Use] to the right of each RAW port key.
  • Page 471 Machine Manager Setting 02 NetWare Specify the settings for connecting network printer, and the NetWare set- tings. Where Novell NetWare is not used, make sure that [Not Use] is selected. bizhub PRO 1050P/1050eP 13-69...
  • Page 472 Machine Manager Setting 13-70 bizhub PRO 1050P/1050eP...
  • Page 473 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [02 NetWare]. For each item, select or enter a required value. Use [Previous] or [Next] as required. NetWare Setting NetWare Select [Use]. Frame Type Select a frame type. Operation Mode Select an appropriate operation mode.
  • Page 474 Machine Manager Setting File Server Name Maximum 10 file server names can be entered. Queue Name Maximum 10 queue names can be entered. Touch [OK] to complete the settings and return to the Controller NIC Setting Menu Screen. Touch [Return] to specify other settings, or touch [Exit] to finish setting. After you have changed the settings, turn off the sub power, then turn off and on the main power.
  • Page 475 Machine Manager Setting 03 IPP Specify the settings for connecting network printer and the IPP settings bizhub PRO 1050P/1050eP 13-73...
  • Page 476 Machine Manager Setting 13-74 bizhub PRO 1050P/1050eP...
  • Page 477 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [03 IPP]. For each item, select or enter a required value. Use [Previous] or [Next] as required. IPP Setting Specify to use IPP or not. IPP Print Job Accept Specify to accept IPP print jobs or not.
  • Page 478 Machine Manager Setting 04 FTP Specify to use a machine as an FTP server. 13-76 bizhub PRO 1050P/1050eP...
  • Page 479 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [04 FTP]. Select to use an FTP server. Touch [OK] to complete the settings and return to the Controller NIC Setting Menu Screen. Touch [Return] to specify other settings, or touch [Exit] to finish setting. After you have changed the settings, turn off the sub power, then turn off and on the main power.
  • Page 480 Machine Manager Setting 05 SNMP Specify the SNMP settings. 13-78 bizhub PRO 1050P/1050eP...
  • Page 481 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [05 SNMP]. For each item, select or enter a required value. SNMP Select to use SNMP. Read Community Name Touch [Read Community Name] to display an input screen. After entering in the field, touch [OK].
  • Page 482 Machine Manager Setting 06 SMB Specify the SMB printing setting. 13-80 bizhub PRO 1050P/1050eP...
  • Page 483 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [06 SMB]. For each item, select or enter a required value. Print Select [Use] or [Not Use]. Net BIOS Name Specify if required. Touch [Net BIOS Name] to display an input screen.
  • Page 484 Machine Manager Setting 07 AppleTalk Specify the settings for connecting network printer and the ApplieTalk set- tings. 13-82 bizhub PRO 1050P/1050eP...
  • Page 485 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [07 Apple- Talk]. For each item, select or enter a required value. AppleTalk Selecting [Use] enables AppleTalk as the print server protocol. Printer Name Touch [Printer Name] to display an input screen. After entering in the field, touch [OK].
  • Page 486 Machine Manager Setting 08 E-Mail Specify the settings for an e-mail send/receive, division for transmitted data and authentication. 13-84 bizhub PRO 1050P/1050eP...
  • Page 487 Machine Manager Setting bizhub PRO 1050P/1050eP 13-85...
  • Page 488 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [08 E-Mail]. Touch [01 E-Mail Send Setting] on the E-Mail Setting Menu Screen to display the E-Mail Send Setting Screen. Specify the following items, using [Previous] or [Next] as required. Touch [OK] to complete the set- tings and return to the E-Mail Setting Menu Screen.
  • Page 489 Machine Manager Setting POP before SMTP Touch [POP before SMTP] to display an input screen. After entering in the field, touch [OK]. SMTP Auth. User Name Touch [SMTP Auth. User Name] to display an input screen. After entering in the field, touch [OK]. Password Touch [Password] to display an input screen.
  • Page 490 Machine Manager Setting Details When you turn off and on the main power, you need to wait at least 10 seconds to turn on after turning off. If you do not allow a sufficient interval in between, the machine may not run correctly. 13-88 bizhub PRO 1050P/1050eP...
  • Page 491 Machine Manager Setting 09 Alert Mail Specify the settings for e-mail error notification. bizhub PRO 1050P/1050eP 13-89...
  • Page 492 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [09 Alert Mail]. Specify to use e-mail notification, and a destination address to which to notify. Select [On] or [Off] to the right of [E-Mail Transmission] to specify to use e-mail notification.
  • Page 493 Machine Manager Setting 10 CSRC CS Remote Care includes service tools, which you do not necessarily have to set. Contact your service representative for details. bizhub PRO 1050P/1050eP 13-91...
  • Page 494 Machine Manager Setting 13-92 bizhub PRO 1050P/1050eP...
  • Page 495 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [10 CSRC]. Touch [01 CSRC Send Setting] on the CSRC Setting Menu Screen to display the CSRC Send Setting Screen. Specify the following items, using [Previous] or [Next] as required. Touch [OK] to complete the settings and return to the CSRC Setting Menu Screen.
  • Page 496 Machine Manager Setting Connection Time Out Time Touch [Connection Time Out Time] to display an input screen. After entering in the field, touch [OK].The range to be used is between 30 and 300 seconds. Machine Manager From Address Touch [Machine Manager From Address] to display an input screen.
  • Page 497 Machine Manager Setting Connection Time Out Time Touch [Connection Time Out Time] to display an input screen. After entering in the field, touch [OK]. The range to be used is between 30 and 300 seconds. Auto Check Select [On] or [Off]. If [On] is selected, the interval must be specified.
  • Page 498 Machine Manager Setting 11 AP I/F Specify the settings for Imaging Solution API I/F. 13-96 bizhub PRO 1050P/1050eP...
  • Page 499 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [11 AP I/F]. For each item, select or enter a required value. AP I/F Select [Use] or [Not Use]. AP I/F over SSL Select [Use] or [Not Use]. AP I/F Authentication Select [On] or [Off].
  • Page 500 Machine Manager Setting 12 PSWC Specify to use PageScope Web Connection (PSWC). 13-98 bizhub PRO 1050P/1050eP...
  • Page 501 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [12 PSWC]. Touch [Use] or [Not Use] to specify whether you want to use PSWC or not. Touch [OK] to complete the settings and return to the Controller NIC Setting Menu Screen.
  • Page 502 Machine Manager Setting 13 Network Setting Clear Recover the initial network settings specified at the time of shipment. 13-100 bizhub PRO 1050P/1050eP...
  • Page 503 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [13 Network Setting Clear]. Touch [Initialize Execute] to recover the initial setting specified at the time of shipment. Touch [OK] to complete the settings and return to the Controller NIC Setting Menu Screen.
  • Page 504 Machine Manager Setting 14 SNMP Trap Specify the SNMP Trap settings. Details Before setting the SNMP Trap, specify to use SNMP in [04 Network Set- ting] - [02 Controller NIC Setting] - [05 SNMP]. 13-102 bizhub PRO 1050P/1050eP...
  • Page 505 Machine Manager Setting bizhub PRO 1050P/1050eP 13-103...
  • Page 506 Machine Manager Setting Procedure Touch [04 Network Setting] - [02 Controller NIC Setting] - [14 SNMP Trap]. Specify to use the SNMP Trap transmission and authentication failure transmission functions SNMP Trap Transmission Select [On] or [Off] to transmit SNMP Trap or not. Authentication Failure Trans Select [On] or [Off] to transmit by SNMP in the case that any au- thentication failure in Read Community Name or Write Community...
  • Page 507 Machine Manager Setting Specify the transmission address. Trans Address 1 - 5 Setting Touch the desired key from 1 to 5 of transmission address setting on the SNMP Trap Setting Screen to display the SNMP Trap Trans Ad- dress Setting Screen. Specify the following items, using [Previous] or [Next] as required.
  • Page 508 Machine Manager Setting Report Items Select the desired report items. More than one item can be select- Touch [Clear All] if none of them are required. Note The authentication failure transmission will be performed even if all report items are cleared. Touch [OK] to complete the settings and return to the Controller NIC Setting Menu Screen.

  • Page 509: Printer Setting

    Machine Manager Setting 13.6 05 Printer Setting 13.6.1 01 JOB Offset Operating Set the machine to offset the copies/printouts of different jobs. Procedure Touch [05 Printer Setting] - [01 JOB Offset Operating]. Touch [On] or [Off] to highlight it. Touch [OK] to complete the setting and return to the Machine Manager Setting Menu Screen.

  • Page 510: Continuation Print (Print)

    Machine Manager Setting 13.6.2 02 Continuation Print (Print) Set the machine to output multiple reserved print jobs in succession. Procedure Touch [05 Printer Setting] - [02 Continuation Print (Print)]. Touch [On] or [Off] to highlight it. Touch [OK] to complete the setting and return to the Machine Manager Setting Menu Screen.

  • Page 511: Page No. Position (Booklet)

    Machine Manager Setting 13.6.3 03 Page No. Position (Booklet) Set the machine to position the page numbers automatically on the outside edges of the print when using Booklet with Page Numbering in Stamp. Procedure Touch [05 Printer Setting] - [03 Page No. Position (Booklet)]. Touch [On (Outside Page Print)] or [Off] to highlight it.

  • Page 512: Fixing Prerotation Set

    Machine Manager Setting 13.6.4 04 Fixing Prerotation Set The fixing heat adjustment may be necessary as altering the paper type and the weight. The machine rotates the fixing roller before printing starts in order to print at the appropriate temperature for the specific paper type and the weight.
  • Page 513 Machine Manager Setting Note If pressing [Start] after altering the paper type and weight when [Rotation On] is selected, the message “Machine is warming up.” Is displayed. Please wait until printing is enabled. bizhub PRO 1050P/1050eP 13-111...

  • Page 514: System Connection

    Machine Manager Setting 13.7 06 System Connection 13.7.1 01 User Call Use this function to call your service representative for maintenance. Your service representative is monitoring the machine status as needed basis. The monitored information will be useful for maintenance. Procedure Touch [06 System Connection] - [01 User Call].

  • Page 515: Security Setting

    Machine Manager Setting 13.8 07 Security Setting 13.8.1 01 Machine Manager Password Set the new machine manager password. bizhub PRO 1050P/1050eP 13-113...
  • Page 516 Machine Manager Setting Procedure Touch [07 Security Setting] - [01 Machine Manager Password]. Touch [Input Manager Password] to display the Input Manager Pass- word Screen. Enter the new password. Touch [OK]. Touch [OK] to complete the setting and return to the Machine Manager Setting Menu Screen.

  • Page 517: Hdd Management Setting

    Machine Manager Setting 13.8.2 02 HDD Management Setting 01 Folder Box List/Delete The user can create a folder or a box when saving images in a personal, pub- lic or secure folder. The machine manager can refer to the name, password, number or creation time of the folder created by the user, and delete the fold- er or box if necessary.
  • Page 518 Machine Manager Setting 13-116 bizhub PRO 1050P/1050eP...
  • Page 519 Machine Manager Setting bizhub PRO 1050P/1050eP 13-117...
  • Page 520 Machine Manager Setting Procedure Touch [07 Security Setting] - [02 HDD Management Setting] - [01 Fold- er Box List/Delete]. Refer the detailed information of the folder and the box. Touch [Personal Folder], [Public Folder], or [Secure Folder] to refer to the details of the desired folder or box. Touch the desired folder to highlight it.
  • Page 521 Machine Manager Setting 02 HDD Data Auto Delete Period Setting Specify the period of time (12 hours to 30 days) to keep data so that it will be deleted automatically when specified period has passed. The initial setting is Not Delete. bizhub PRO 1050P/1050eP 13-119...
  • Page 522 Machine Manager Setting Procedure Touch [07 Security Setting] - [02 HDD Management Setting] - [02 HDD Data Auto Delete Period Setting]. Touch the desired period to highlight it. Touch [Not Delete] to highlight it when not setting the automatically de- leting period.
  • Page 523 Machine Manager Setting 03 Change HDD Lock Password Change the HDD lock password. Note The HDD Lock Password cannot be changed unless the Security Strengthen mode is set to On. bizhub PRO 1050P/1050eP 13-121...
  • Page 524 Machine Manager Setting Procedure Touch [07 Security Setting] - [02 HDD Management Setting] - [03 Change HDD Lock Password]. Touch [Current Password] to display the Password Input Screen. Enter the current password and touch [OK]. Touch [New Password] to display the Password Input Screen. Enter the new password and touch [OK].

  • Page 525: Security Strengthen Mode

    Machine Manager Setting 13.8.3 03 Security Strengthen mode Set the Security Strengthen mode On/Off. Note In order to set the Security Strengthen mode to On, it is required by your service representative to set a CE password and a machine manager password to your machine.
  • Page 526 Machine Manager Setting Procedure Touch [07 Security Setting] - [03 Security Strengthen mode]. Touch [On] when activating this mode, or touch [Off] when deactivating this mode. Touch [OK] at the lower right side of the screen to display the Confir- mation popup screen.

  • Page 527: Browser Control Setting

    Browser Control Setting...

  • Page 529: Web Utilities Outlines

    Browser Control Setting Browser Control Setting 14.1 Web Utilities Outlines When the machine is connected with a PC over a network, the web browser activated on the PC provides the following functions. Account Track Setting Make the account track settings concerning the administrator setting us- ing the web browser on a PC.
  • Page 530 Browser Control Setting Procedure Turn on the power to the PC connected with the machine over a net- work. Activate the web browser, then select [Open] from the File menu. Enter the URL (http:// [IP address or host name of the machine]), then click on [OK].

  • Page 531: Setting Account Track Data

    Browser Control Setting 14.2 Setting Account Track Data Make the account track settings concerning the administrator setting using the web browser on a PC. Details A duplicate password or name will be rejected with an error message. However, duplicating a password is possible using the administrator set- ting.

  • Page 532: Adding Account Track

    Browser Control Setting 14.2.1 Adding Account Track Add a new account track data (password, name, and limit value). Procedure Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialog box will be displayed. Enter "admin" in the User Name text box, and an 8-digit administrator in the password text box, then click on [OK].
  • Page 533 Browser Control Setting Click on [Volume Track setting]. The Volume Track Setting menu will be displayed. Click on [Volume Track data add]. The Volume Track Data Add window will be displayed. Enter a new account track data. Section Name (Account Name) : 8 characters max. Password: 8 digits max.
  • Page 534 Browser Control Setting Click on [ Apply The registered content will be displayed in the window. The new account track data will be transmitted to the machine imme- diately so that is valid for the user operations. Click on [Back] to return to the Volume Track Setting menu or any menu item to jump to the desired window.

  • Page 535: Editing Account Track Data

    Browser Control Setting 14.2.2 Editing Account Track Data Change or delete the account track data (password, section name, or limit value, or reset the counters). Procedure Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialog box will be displayed. Enter "admin"...
  • Page 536 Browser Control Setting Click on [Volume Track setting]. The Volume Track Setting menu will be displayed. Click on [Volume Track data list]. The Volume Track List will be displayed. 14-10 bizhub PRO 1050P/1050eP...
  • Page 537 Browser Control Setting Change the Section Name (Account Name), Password, and Limit Val- Click on the number of the data to be edited. The Volume Track Add Data window will be displayed. Change the section name (account name), password, or limit value, as desired.
  • Page 538 Browser Control Setting Reset Counter. Click on the check box(es) to select the account track data of the counter to be cleared. If all the counters are to be cleared, click on [SelectAll]. Click on the radio button (a white circle) heading the "Copy/Printer Count reset."...
  • Page 539 Browser Control Setting Click on [Back] to return to the Account Track Data List or any menu item to jump to the desired window. Delete Counter. Click on the check box(es) to select the account track data to be deleted. If all the data are to be cleared, click on [SelectAll]. Click on the radio button (a white circle) heading the "Delete (Ex- cept for Another user count)".
  • Page 540 Browser Control Setting Click on [Apply] to immediately delete the data. The message "Setting was deleted" will be displayed. Click on [Back] to return to the Volume Track Data List or any menu item to jump to the desired window. 14-14 bizhub PRO 1050P/1050eP...
  • Page 541 Browser Control Setting Save Counter. Click on [Save this table as a file]. Click on [Save]. bizhub PRO 1050P/1050eP 14-15...
  • Page 542 Browser Control Setting In the dialog box, designate the folder for saving the data, then click on [Save]. 14-16 bizhub PRO 1050P/1050eP...
  • Page 543 Browser Control Setting Details The account track data will be stored in CSV format. The data cannot be saved while the machine is in operation. In this case, try this procedure again after the machine starts idling. Click on [Back] in the browser window to return to the Account Track Data List for starting over.

  • Page 544: Transmitting Machine Setting File

    Browser Control Setting 14.3 Transmitting Machine Setting File Follow the procedure below to transmit the following setting file from the ma- chine to a PC (export) using the web browser, edit the setting data on the PC, then return the file to the machine (import). Account track data (max.
  • Page 545 Browser Control Setting Procedure Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialog box will be displayed. Enter "admin" in the User Name text box, and an 8-digit administrator password in the password text box, then click on [OK]. The Machine Manager Setting menu will be displayed.
  • Page 546 Browser Control Setting Click on [Setting data Import/Export]. The Setting Data Import/Export window will be displayed. Export the machine setting file. Select the desired file type from the pull-down menu, then click on [Export..] 14-20 bizhub PRO 1050P/1050eP...
  • Page 547 Browser Control Setting The File Download dialog box will be displayed. Click on [OK]. In the dialog box, designate the folder for saving the machine set- ting file, then click on [Save]. A dialog box will be displayed when the saving operation is completed. Click on [Close].
  • Page 548 Browser Control Setting Edit the machine setting file. The machine setting file transmitted to a PC is a TAB separated text file which can be edited using an application software such as Text Editor or Table Editor. A new setting file can also be created according to the specifications for each file type.
  • Page 549 Browser Control Setting Details The file cannot be accessed when the machine is operating. If an error message is displayed, try again to save the file after the current machine operation is completed. If the registration cannot be completed successfully, error messages will be displayed as follows.
  • Page 550 Browser Control Setting To Edit the Machine Setting File - Save the file as a text. - Begin the file with a specified tag. (ex. #EKC_TAB) - A line should be 300 bytes or less. - The file size should be 100,000 bytes or less. - The line that begins with "#"...
  • Page 551 Browser Control Setting - REFERENCE should be 250 bytes or less. - Mark DAILY USE with "1" or DAILY NOT USE with "0" in each column. HDD data setting file: - Begin the file name with #IP_HDD. - A line should include NAME, NUMBER, REFERENCE, or DAILY, separat- ed by a tab.

  • Page 552: Box Edit

    Browser Control Setting 14.4 Box Edit Use the web browser to change the name of the box or file created in the HDD, or to display the thumbnail of the top page of the file. Prerequisites This function is available only when the following conditions are satisfied on the machine.
  • Page 553 Browser Control Setting Click on [Box edit]. The Box Edit window will be displayed. Click on the desired user name. Selected user name will be marked with an asterisk (*) at its head. The user name marked with “L” is locked and cannot be selected. Details The number in parentheses on the right side of the title “User Name”...
  • Page 554 Browser Control Setting Click on the desired box name. Selected box name will be marked with an asterisk (*) at its head. The box name marked with “L” is locked and cannot be selected. To change the box name, proceed to the next step. To change the file name or check the thumbnail, proceed to step 8.
  • Page 555 Browser Control Setting Click on the desired file name to display the thumbnail. Selected file name will be marked with an asterisk (*), and the thumbnail of the top page of selected file will be displayed in the File Name area. To change the file name, proceed to the next step.
  • Page 556 Browser Control Setting Change the file name. Clicking on the desired file name (as in step 8), a text box will appear at the top of the File Name area. Enter the new name within 30 alphanumeric characters. Click on [Change] on the right side of the text box. The new name will be registered and enabled immediately.

  • Page 557: Pagescope Web Connection Outlines

    PageScope Web Connection Outlines PageScope Web Connection is a device control utility program provided by the HTTP server built into the image controller of the KONICA MINOLTA bizhub PRO 1050P/1050eP. This utility can be used with a Web browser to display the status of the bizhub PRO 1050P/1050eP printer and network, and to change default and network settings.

  • Page 558: Web Browser Settings

    Browser Control Setting 14.5.1 Web Browser Settings JavaScript JavaScript must be active. For setting JavaScript, see the following proce- dure. Internet Explorer Select [Internet Options] under [Tools]. Select the [Security] tab and then click [Custom Level]. Scroll down to the item that reads [Active Scripting]. Select the option marked [Enable].

  • Page 559: Access

    Browser Control Setting 14.6 Access PageScope Web Connection can be accessed directly from a Web browser. Procedures Start the Web browser. In the Address bar, enter the IP address of the image controller as shown below. Then press the [Enter] key. http://IP address of the image controller/ (Example) When the IP address of the image controller is 192.168.0.10:...

  • Page 560: Screen Configuration

    If user authentication is set, the user name and password entry screen will appear. KONICA MINOLTA PageScope Web Connection Logo Click the KONICA MINOLTA logo to jump to the Konica Minolta web site. http://konicaminolta.jp Click the PageScope Web Connection logo to jump to the About Screen, providing the version information and the copyright description.
  • Page 561 Browser Control Setting Administrator Mode Logs into Administrator Mode. (For details on the login procedure for Ad- ministrator Mode, refer to “Logging in Using Administrator Mode” on page 14-36.) Language Sets the display language for the browser. [Auto] indicates the same lan- guage as the operating system being used and the other options indicate the same language as displayed on the control panel.

  • Page 562: Logging In Using Administrator Mode

    Browser Control Setting 14.7.1 Logging in Using Administrator Mode By logging into PageScope Web Connection in Administrator Mode, you can configure or confirm the image controller system. Procedures Click the [Admin Mode] button in the upper left corner of the screen. Enter the password for Administrator Mode and click the [Login] but- ton.
  • Page 563 Browser Control Setting In order to ensure the security against data used in Administrator Mode, set SSL. SSL can be set on the [Network] tab of Administrator Mode. For details on the SSL setting, refer to “SSL/TLS” on page 14-64. bizhub PRO 1050P/1050eP 14-37...

  • Page 564: Administrator Mode

    Browser Control Setting 14.8 Administrator Mode By logging into PageScope Web Connection in Administrator Mode, you can configure or confirm the image controller system. For the details on the login procedure for Administrator Mode, refer to “Log- ging in Using Administrator Mode” on page 14-36. 14.9 System Tab On the [System] tab, information concerning the system configuration of the...

  • Page 565: Device Information

    Browser Control Setting 14.9.2 Device Information This screen appears when you click [Device Information] on the [System] tab. The screen is used to enter the device name, device place, and the adminis- trator name. Device Name: Enter the name of the device. Maximum 255 alphanumeric characters can be used.

  • Page 566: Rom Version

    Browser Control Setting 14.9.3 ROM Version This screen appears when you click [ROM Version] on the [System] tab. It shows the ROM version of the copier, the firmware version of the controller, and other information. 14-40 bizhub PRO 1050P/1050eP...

  • Page 567: Online Assistance

    Online Help URL: Enter the online manual URL. Maximum 127 alphanumeric characters can be used. There are two choices: – Accessing the manual on the Internet posted on the Konica Minolta web- site: Enter: http://pagescope.com/download/webconnection/onlinehelp/ pro1050/help.html. bizhub PRO 1050P/1050eP 14-41...
  • Page 568 Browser Control Setting – Accessing the manual over the LAN: Enter: http://(IP address for the PC)/pscw_help/****.pswc_help.html. The administrator must have the online manual to make it available over the LAN server. Use a PC on which Microsoft IIS or another Web server is running. The Web server must be set to have the folder "...

  • Page 569: Import/Export

    Browser Control Setting 14.9.5 Import/Export This screen appears when you click [Import/Export] on the [System] tab. You can use the screen to import a setting file from a PC to the device, and to export a setting file from the device to a PC. Details See appendix for exportable data.

  • Page 570: Maintenance

    Browser Control Setting 14.9.6 Maintenance This screen appears when you click [Maintenance] on the [System] tab. You can use the screen to operate maintenance of the machine. You can initialize the network settings (reset to factory default settings) or restart the network only to enable new parameters.
  • Page 571 Browser Control Setting Reset This screen appears when you click [Reset] under the [Maintenance] menu. Restart on the controller to enable new parameters. In this case, the control- ler will be initialized, however the main body will not. Details If you want to initialize the main body after resetting the network, wait un- til the controller restarts (about 2 minutes) and turn the main switch OFF.

  • Page 572: E-Mail Alert

    Browser Control Setting 14.9.7 E-Mail Alert This screen appears when you click [E-Mail Alert] on the [System] tab. You can use the screen to set sending notices to the selected e-mail addresses when an alert occurs to your system. The alert items that are checked their check boxes will be sent as alert by e-mail.

  • Page 573: Print Tab

    Browser Control Setting 14.10 Print Tab The [Print] tab is used to configure the image controller. 14.10.1Interface This screen appears when you click [Interface] on the [Print] tab. The screen is used to set information concerning the interface timeout. Parallel Timeout: Set parallel port timeout (10-300 seconds).
  • Page 574 Browser Control Setting Port Settings This screen appears when you click [Port Settings] on the [Print] tab. You can use the screen to see the list of port settings. - RAW port number List the RAW port numbers 1 to 6 that are set in [TCP/IP] on the [Network] tab.

  • Page 575: Default Settings

    Browser Control Setting 14.10.2Default Settings General Settings This screen appears when you click [General Settings] under the [Default Settings] menu. The screen is used to set default values for printer settings, that are not associated with PDL. If there is no command from the driver, this setting will be applied.
  • Page 576 Browser Control Setting PCL Settings This screen appears when you click [PCL Settings] under the [Default Set- tings] menu. The screen is used to set PCL. These settings also appear if you select Controller Settings on the touch pan- el's Device Status screen - 02 Printer Settings - 03 PCL Settings. [Apply] button: Click the button to apply the new settings.
  • Page 577 Browser Control Setting PS Settings (Option) This screen appears when you click [PS Settings] under the [Default Settings] menu. The screen is used to set PS. These settings also appear if you select Controller Settings on the touch pan- el's Device Status screen - 02 Printer Settings - 03 PS Settings. Print To PS Error: Select whether or not to print the error report when an error occurs while rasterizing PostScript data.
  • Page 578 Browser Control Setting TIFF Settings This screen appears when you click [TIFF Settings] under the [Default Set- tings] menu. The screen is used to set default values for TIFF settings. These settings also appear if you select Controller Settings on the touch panel's Device Status screen - 02 Printer Settings - 04 TIFF Settings.

  • Page 579: Network Tab

    Browser Control Setting 14.11 Network Tab The [Network] tab shows settings concerning the printer controller network. 14.11.1TCP/IP TCP/IP This screen appears when you click [TCP/IP] on the [Network] tab. The screen is used to set a summary of the image controller interface (TCP/IP settings).
  • Page 580 Browser Control Setting IP Filtering This screen appears when you click [IP Filtering] under the [TCP/IP] menu. The screen is used to specify the host address and restrict access permis- sion. You can also use the screen to enable or disable access permission, access refusal, and their ranges of TCP/IP filtering.

  • Page 581: Netware

    Browser Control Setting 14.11.2NetWare NetWare This screen appears when you click [NetWare] on the [Network] tab. The screen is used to enter and confirm various settings concerning NetWare. When NetWare is set to disable, you still need to set parameters. Make sure to enter parameters correctly.
  • Page 582 Browser Control Setting [Apply] button: Click the button to apply the new settings. [Clear] button: Click the button to clear the settings that were selected. NetWare Status This screen appears when you click [NetWare Status] under the [NetWare] menu on the [Network] tab. This screen is used to confirm NetWare status. 14-56 bizhub PRO 1050P/1050eP...

  • Page 583: Ipp

    Browser Control Setting 14.11.3IPP This screen appears when you click [IPP] on the [Network] tab. This screen is used to enter and confirm settings concerning IPP. When IPP Print is set to disable, you still need to set parameters. Make sure to enter parameters correctly.

  • Page 584: Ftp

    Browser Control Setting 14.11.4FTP FTP Server This screen appears when you click [FTP] on the [Network] tab. The screen is used to enter and confirm various settings concerning the FTP server. FTP Server: Select enable or disable. [Apply] button: Click the button to apply the new settings. [Clear] button: Click the button to clear the settings that were entered.

  • Page 585: Snmp

    Browser Control Setting 14.11.5SNMP This screen appears when you click [SNMP] on the [Network] tab. The screen is used to enter and confirm settings concerning SNMP. SNMP: Select enable or disable. [Apply] button: Click the button to apply the new settings. [Clear] button: Click the button to clear the settings that were entered.

  • Page 586: Smb

    Browser Control Setting 14.11.6SMB Print This screen appears when you click [SMB]. The screen is used to enter and confirm settings concerning SMB printing. When SMB Print is set to disable, you still need to set parameters. Make sure to enter parameters correctly. Enter for individual items.

  • Page 587: Apple Talk

    Browser Control Setting 14.11.7Apple Talk This screen appears when you click [Apple Talk] on the [Network] tab. The screen is used to enter and confirm settings concerning Apple Talk. When Apple Talk is set to disable, you still need to set parameters. Make sure to enter parameters correctly.

  • Page 588: E-Mail

    Browser Control Setting 14.11.8E-Mail E-Mail Receive (POP) Configuration This screen appears when you click [E-Mail] on the [Network] tab, then click [E-Mail Receive] under the [E-Mail] menu. The screen is used to enter and confirm settings concerning receiving e-mail. When E-Mail Receive is set to disable, you still need to set parameters. Make sure to enter parameters correctly.
  • Page 589 Browser Control Setting E-Mail Send (SMTP) Configuration This screen appears when you click [E-Mail] on the [Network] tab, then click [E-Mail Send] under the [E-Mail] menu. The screen is used to enter and confirm settings concerning sending e-mail. When E-Mail Send is set to disable, you still need to set parameters. Make sure to enter parameters correctly.

  • Page 590: Ssl/Tls

    Browser Control Setting 14.11.9SSL/TLS This screen appears when you click [SSL/TLS] on the [Network] tab. The screen is used to enter and confirm settings concerning SSL/TLS. You can configure them separately depending whether or not certificates are in- stalled. Creating a self-signed certificate 14-64 bizhub PRO 1050P/1050eP...
  • Page 591 Browser Control Setting Click [Setting]. The SSL/TLS Setting screen appears. Check [Create a Self-Signed Certificate] and click [Next]. The Self-Signed Certificate Setting screen appears. Note Only [Create a Self-Signed Certificate], [Request a Certificate], and [In- stall a Certificate] can be selected. If you click [Cancel], it will take you back to the SSL/TLS Setting screen.
  • Page 592 Browser Control Setting Requesting a certificate to install 14-66 bizhub PRO 1050P/1050eP...
  • Page 593 Browser Control Setting bizhub PRO 1050P/1050eP 14-67...
  • Page 594 Browser Control Setting Click [Setting]. The SSL/TLS Setting screen appears. Check [Request a Certificate] and click [Next]. The Request a Certificate screen appears. Note Only [Create a Self-Signed Certificate], [Request a Certificate], and [In- stall a Certificate] can be selected. If you click [Cancel], it will take you back to the SSL/TLS Setting screen.
  • Page 595 Browser Control Setting Click [OK]. It will take you back to the SSL/TLS Information screen. bizhub PRO 1050P/1050eP 14-69...
  • Page 596 Browser Control Setting Requesting a certificate to switch information 14-70 bizhub PRO 1050P/1050eP...
  • Page 597 Browser Control Setting bizhub PRO 1050P/1050eP 14-71...
  • Page 598 Browser Control Setting Click [Setting]. The SSL/TLS Setting screen appears. Note Initially [Request a Certificate] is checked. Remove an already installed certificate first before requesting a new one. For details, refer to “Removing a certificate” on page 14-77. Click [Next]. Enter necessary information, and click [Next].
  • Page 599 Browser Control Setting Changing mode settings Changing encryption strength setting bizhub PRO 1050P/1050eP 14-73...
  • Page 600 Browser Control Setting Click [Settings]. The SSL/TLS Setting screen appears. Check [Set a Encryption Strength], and click [Next]. The Encryption Strength Setting screen appears. Select a discretionary value. Click [Create]. The completion screen appears. Click [OK]. It will take you back to the SSL/TLS Information screen. 14-74 bizhub PRO 1050P/1050eP...
  • Page 601 Browser Control Setting Changing mode using SSL/TLS bizhub PRO 1050P/1050eP 14-75...
  • Page 602 Browser Control Setting Click [Settings]. The SSL/TLS Setting screen appears. Check [Mode using SSL/TLS], and click [Next]. The Mode using SSL/TLS screen appears. Select a discretionary mode, and click [Create]. The completion screen appears. Click [OK]. It will take you back to the SSL/TLS Information screen. 14-76 bizhub PRO 1050P/1050eP...
  • Page 603 Browser Control Setting Removing a certificate bizhub PRO 1050P/1050eP 14-77...
  • Page 604 Browser Control Setting Click [Settings]. The SSL/TLS Setting screen appears. Check [Remove a Certificate], and click [Next]. The Remove a Certificate screen appears. Click [Remove]. The removal confirmation screen appears. Click [OK]. It will take you back to the SSL/TLS Information screen. 14-78 bizhub PRO 1050P/1050eP...

  • Page 605: Authentication

    Browser Control Setting 14.11.10Authentication Auto Logout This screen appears when you click [Authentication] on the [Network] tab. The screen is used to enter and confirm settings concerning logout time. - Enter for individual items. Admin Logout Time, User Logout Time. [Apply] button: Click the button to apply the new settings.
  • Page 606 Browser Control Setting AP I/F This screen appears when you click [API I/F] on the [Network] tab. The screen is used to enter and confirm settings concerning the API I/F. - Enter for individual items. Port Number, Use SSL/TLS, Port Number (SSL/TLS). [Apply] button: Click the button to apply the new settings.

  • Page 607: Security

    Security...
  • Page 609 (Ex: 10-0000) Please keep this in mind when checking the software version. ACKNOWLEDGEMENTS: KONICA MINOLTA, KONICA MINOLTA Logo, and The essentials of imaging are registered trademarks or trademarks of KONICA MINOLTA HOLDINGS, INC. PageScope and bizhub PRO are trademarks of KONICA MINOLTA BUSI- NESS TECHNOLOGIES, Inc.

  • Page 610: Security Functions

    Security 15.1 Security Functions The bizhub PRO 1050P/1050eP device has two security modes. Normal mode Use this mode if the machine is used by a single person and there is a low possibility of illicit access and operations. This is the default mode when shipped from the factory.

  • Page 611: Environments In Which Security Strengthen Mode Is Recommended

    Security 15.1.1 Environments in which Security Strengthen mode is rec- ommended - The device is connected to an local network, the Internet through a fire- wall, or the external telephone line for maintenance. - The device is monitored by a telephone line or a network. 15.1.2 Creating a secure environment For security, we recommend that supervisors and a machine manager use Security Strengthen mode and establish an environment as follows.

  • Page 612: Security Strengthen Mode

    Security 15.2 Security Strengthen Mode 15.2.1 Description of Security Strengthen mode The following items will have enhanced security. Protect and delete used data in memory and on the HDD - There are two kinds of image data that will be saved in memory and on the HDD: AHA compressed data and uncompressed data (TIFF and PDF formats).
  • Page 613 Security Manager authentication - A service representative will set up an authentication data for a machine manager. - The machine manager must input a password to gain authorized access. Only one authentication string can be registered per machine. Machine Manager Setting mode - If the Machine Manager Setting mode has been entered by successful Manager authentication, the setting change of various machine functions will be available on the machine.

  • Page 614: Data Protected By Security Strengthen Mode

    Security 15.2.2 Data protected by Security Strengthen mode Data protected by Security Strengthen mode (for users) is as follows. - Data saved in the Personal Folder (with a password) The following data administered by the machine manager will also receive enhanced protection.

  • Page 615: Protect And Delete Data After Use

    Security 15.3 Protect and Delete Data After Use Data from each mode (copy / scan / printer) will be temporarily saved in memory or on the HDD, and it will be deleted unless it is moved to a Box. Data is compressed using a special method, so it cannot be decompressed externally.

  • Page 616: User Authentication In Security Strengthen Mode

    Security 15.4 User Authentication in Security Strengthen Mode In Security Strengthen mode, setting up password conditions will be tougher to improve security. The machine manager should set up a user name and password required for user authentication, as this is a machine manager op- eration.

  • Page 617: To Register A New User

    Security 15.4.1 To register a new user Follow the procedure below to setup a user name and password to be re- quired for user authentication in Security Strengthen mode. Procedure Press [Utility/Counter] on the control panel to display the Utility Screen. Touch [04 Machine Manager Setting].
  • Page 618 Security The Machine Manager Setting Menu Screen will be displayed. Details Passwords are case sensitive. If a wrong password or fewer than 8 alphanumerical characters are en- tered and the OK key is touched, the warning message "Password does not match" will appear, and no key will work for five seconds. Enter the right password after five seconds.
  • Page 619 Security The User Authentication Setting Screen will be displayed. Touch [Add] to display the User Registration Screen. Touch [User No.], [User Name], [Password], or [Belong Section] to dis- play each subsequent screen, then make the desired setting. bizhub PRO 1050P/1050eP 15-13...
  • Page 620 Security To enter the User No.: Touch [User No.] on the User Registration Screen. Use the screen keypad on the popup menu to enter the desired user number. Touch [OK] to return to the User Registration Screen. To enter the User Name: Touch [User Name] on the User Registration Screen.
  • Page 621 Security To enter the Password: Touch [Password] on the User Registration Screen. Enter the desired password from the screen keypad. Touch [OK] to return to the User Registration Screen. To enter the Section: Touch [Belong Section] on the User Registration Screen. Touch the desired section key to highlight it.

  • Page 622: To Change A User Data

    Security 15.4.2 To change a user data Follow the procedure below to change a user name and password once reg- istered. Procedure Press [Utility/Counter] on the control panel to display the Utility Screen. Touch [04 Machine Manager Setting]. The Input Password Screen will be displayed. Enter the password.
  • Page 623 Security The Machine Manager Setting Menu Screen will be displayed. Details Passwords are case sensitive. If a wrong password or fewer than 8 alphanumerical characters are en- tered and the OK key is touched, the warning message "Password does not match" will appear, and no key will work for five seconds. Enter the right password after five seconds.
  • Page 624 Security The User Authentication Setting Screen will be displayed. Touch the user name to be changed, then touch [Change]. The Change Registered User Screen will be displayed. Touch [User Name], [Password], or [Belong Section] to display each subsequent screen, then make the desired setting change. 15-18 bizhub PRO 1050P/1050eP...
  • Page 625 Security To change the User Name: Touch [User Name] on the User Registration Screen. Enter the desired user name from the screen keypad. Touch [OK] to return to the Change Registered User Screen. To change the Password: (Touch [Password] on the User Registration Screen. Enter the desired password from the screen keypad.
  • Page 626 Security To change the Section: Touch [Belong Section] on the User Registration Screen. Touch the desired section key to highlight it. Touch [OK] to return to the Change Registered User Screen. Touch [OK]. When settings are completed, touch [OK] on the Change Registered User Screen.

  • Page 627: To Delete A User

    Security 15.4.3 To delete a user Follow the procedure below to delete a user name, password, and also Per- sonal Folder. Procedure Press [Utility/Counter] on the control panel to display the Utility Screen. Touch [04 Machine Manager Setting]. The Input Password Screen will be displayed. Enter the password.
  • Page 628 Security The Machine Manager Setting Menu Screen will be displayed. Details Passwords are case sensitive. If a wrong password or fewer than 8 alphanumerical characters are en- tered and the OK key is touched, the warning message "Password does not match" will appear, and no key will work for five seconds. Enter the right password after five seconds.
  • Page 629 Security The User Authentication Setting Screen will be displayed. Touch the user name to be deleted. The selected key will be highlighted. Touch [Delete]. The popup menu will be displayed to confirm that the selected user will be deleted. Touch [Yes] to delete the selected user name, password, and also the Personal Folder that belongs to the deleted user.

  • Page 630: To Change Password By User

    Security 15.4.4 To change password by user General users can change the password that has already been set for user authentication. We recommend that a user himself/herself changes the password assigned by the machine manager for security. Procedure Press [Utility/Counter] on the control panel to display the Utility Screen. Touch [01 System Setting].
  • Page 631 Security Touch [07 Change User Password]. The User Authentication Screen will be displayed. Touch [User Name], then enter your user name. The entered name will be displayed on the screen. Touch [Password], then enter your current password. The entered password will appear as asterisks (********) on the screen. Details Passwords are case sensitive.
  • Page 632 Security When user authentication is completed successfully, the Change User Password Screen will be displayed. Touch [New Password], then enter your new password. Touch [OK]. Reminder Do not use your name, birthday, employee number, etc. for a password that others can easily figure out. Enter the new password again for confirmation.

  • Page 633: Hdd Store Function In Security Strengthen Mode

    Security 15.5 HDD Store Function in Security Strengthen Mode A Box built on the HDD is used to store the scanned data. To prevent the data from being accessed or tampered with, we recommend using the Box with a password specified. Never fail to use the Security Strengthen mode when storing any secret doc- ument.

  • Page 634: Machine Manager Security Functions

    Security 15.6 Machine Manager Security Functions The machine manager turns Security Strengthen mode ON/OFF. To do so, an 8-digit CE authentication password and Machine Manager password must be set for the machine. Ask your authorized service repre- sentative to set up a Machine Manager password. To change this password, the machine manager himself should operate the procedure described in the User’s Guide - Main Body.
  • Page 635 Security Enter the password. Use the touch screen keypad to enter the 8-digit Machine Manager pass- word, then touch [OK]. The Machine Manager Setting Menu Screen will be displayed. Details Passwords are case sensitive. If a wrong password or fewer than 8 alphanumerical characters are en- tered and the OK key is touched, the warning message "Password does not match"...
  • Page 636 Security Touch [07 Security Setting]. Touch [03 Security Strengthen Mode]. 15-30 bizhub PRO 1050P/1050eP...
  • Page 637 Security Turn Security Strengthen mode ON or OFF. If you want to turn Security Strengthen mode ON, touch [On] to high- light it. If you want to turn it OFF, touch [Off] to highlight it. Touch [OK]. The Restart Confirmation popup screen will appear. Touch [Yes].

  • Page 638: Hdd Lock Password

    Security 15.6.2 HDD lock password While the Security Strengthen mode is turned ON, a lock password (8 to 32 alphanumerical characters, case sensitive) can be set up on the HDD to pro- tect the data stored on it. If the HDD itself is externally accessed, the data readout will not be available until the correct lock password is entered.
  • Page 639 Security Enter the password. Use the touch screen keypad to enter the 8-digit Machine Manager password, then touch [OK]. The Machine Manager Setting Menu Screen will be displayed. Details Passwords are case sensitive. If a wrong password or fewer than 8 alphanumerical characters are en- tered and the OK key is touched, the warning message "Password does not match"...
  • Page 640 Security Touch [07 Security Setting]. Touch [02 HDD Management Setting]. The HDD Management Setting Menu Screen will be displayed. 15-34 bizhub PRO 1050P/1050eP...
  • Page 641 Security Touch [03 Change HDD Lock Password] The Change HDD Lock Password Screen will be displayed. Touch [Current Password] to enter the password currently used, then touch [OK]. (The first password: 9-digit alphanumeric serial number of the main body) Details The main body serial number will be displayed at the upper left part of the Utility Screen and printed at the upper right corner of the audit log.
  • Page 642 Security Reminder Do not use your name, birthday, employee number, etc. for a password that others can easily figure out. Details If authentication fails, the information will be saved in the audit log. The current password cannot be used again as a new password. Touch [OK] to return to the previous screen.

  • Page 643: Print Audit Log

    Security 15.6.3 Print audit log An audit log will be automatically created when the data saved in the ma- chine have been accessed. All the audit log data can be output as follows. Procedure Press [Utility/Counter] on the control panel to display the Utility Screen. Touch [04 Machine Manager Setting].
  • Page 644 Security The Machine Manager Setting Menu Screen will be displayed. Details Passwords are case sensitive. If a wrong password or fewer than 8 alphanumerical characters are en- tered and the OK key is touched, the warning message "Password does not match" will appear, and no key will work for five seconds. Enter the right password after five seconds.
  • Page 645 Security Touch [04 Management List Print]. The Management List Print Screen will be displayed. Touch [Audit Log Report], then touch the [PRINT] tab. Press [Start]. Details To stop printing, press [Stop] on the control panel, then touch Cancel on the confirmation popup screen. bizhub PRO 1050P/1050eP 15-39...

  • Page 646: Analyze Audit Log

    Security 15.6.4 Analyze audit log Audit logs need to be analyzed by the machine manager regularly (once per month) or when unauthorized access and tampering of data saved in the ma- chine in Security Strengthen mode is noticed. The machine is supposed to store up 750 logs per month. If more than 750 logs are assumed to be stored in a month, carry out the analysis in a shorter period before the unanalyzed logs reach that number.
  • Page 647 Security result: Result of an operation. For password authentication, success or failure will be indicated as OK and NG. For operations without password authentication, all log entries will be in- dicated as OK. bizhub PRO 1050P/1050eP 15-41...

  • Page 648: Table Of Items Saved In Audit Log

    Security Table of items saved in audit log Operation Stored action Result CE authentication CE ID OK/NG Manager authentication Machine Manag- OK/NG er ID Set/change Security Machine Manag- Strengthen mode er ID Print audit log Machine Manag- er ID Change/register CE pass- CE ID word Change/register Machine...
  • Page 649 Security The purpose of analyzing the audit log is to understand the following and im- plement countermeasures: - Whether or not data was accessed or tampered with - Subject of attack - Details of attack - Results of attack For specific analysis methods, see the next page. bizhub PRO 1050P/1050eP 15-43...
  • Page 650 Security Specify unauthorized actions: password authentication If logs have NG as the result of password authentication (action: 01, 02, 11, 16), items protected by passwords may have been attacked. - Failed password authentication (NG) log entries specify who made the operation, and show if unauthorized actions were made when password authentication failed.
  • Page 651 Security Actions to take if unauthorized operations are found - If it's found that a password has been leaked after analyzing the audit log, change the password immediately. - It's possible that a password may have been tampered with and legiti- mate users cannot access a box.
  • Page 652 Security 15-46 bizhub PRO 1050P/1050eP...

  • Page 653: Troubleshooting

    Troubleshooting...

  • Page 655: If "Please Call Service" Message Is Displayed

    Troubleshooting Troubleshooting 16.1 If “Please Call Service” Message Is Displayed A “Please call service” message indicates a machine condition that requires the attention of your service representative. The Call for Service Screen usually displays the telephone and facsimile numbers of your service representative. 7 CAUTION When the Call for Service Screen is displayed, be sure to contact your service representative immediately by following the procedure below.
  • Page 656 Troubleshooting After calling for service using the Utility setting, be sure to turn OFF the power immediately, then unplug the machine as described here. Turn OFF the sub power switch and main power switch. Unplug the machine. Contact your service representative and report the condition and report code number.

  • Page 657: Clearing Mishandled Paper

    Troubleshooting 16.2 Clearing Mishandled Paper When a paper misfeed occurs, the machine stops printing and the Jam Po- sition Screen displays to indicate misfeed area(s). The [Start] LED turns red on the control panel, and printing operation cannot be continued until all the misfeed locations are cleared. Part name Description Message area...
  • Page 658 Troubleshooting Touch [Illustration] on the screen. The screen illustrating the method for the disposal action will be dis- played. Details Touch [Next] to go to the next page of a series of illustrations, if provided. Touch [Jam Position] to return to the Jam Position Screen. If paper misfeed occurs in the Perfect Binder PB-501, the Illustration key is not displayed.

  • Page 659: If Machine Tab Blinks In Orange

    Troubleshooting 16.3 If MACHINE Tab Blinks in Orange If any trouble occurs in the machine, one of the following messages will be displayed in the message area and the [MACHINE] tab will blink in orange. - Paper Misfeed: “Mishandled paper” - Tray Empty: “Please load ## paper”...

  • Page 660: Tray Empty

    Troubleshooting 16.3.2 Tray Empty If the popup screen shown below is displayed after touching [Detail Check], the selected tray has become empty. Follow the procedure below to change the tray selection for the current job, or supply the empty tray with paper. To change the tray selection Touch the desired tray key.
  • Page 661 Troubleshooting To supply the empty tray with paper Load paper in the empty tray. For details, refer to “Loading Paper” on page 4-3. Touch [Close] to restore the Machine Status Screen. Press [Start]. Printing operation will resume using the tray supplied with paper. bizhub PRO 1050P/1050eP 16-9...

  • Page 662: Inconformity In Paper Presetting

    Troubleshooting 16.3.3 Inconformity in Paper Presetting The machine automatically stops when paper in the selected tray should be replaced according to the paper presetting specified in reserve setting, and displays either of the following popup screens. Follow the procedure for each to continue the machine operation. Using Custom size/Wide size/Tabbed standard size paper of different size or in different condition Replace paper in the tray with that specified in the paper presetting, then...
  • Page 663 Troubleshooting Using Standard size paper of different size Replace paper in the tray with that specified in the paper presetting. Touch [Change], then press [Start] to start the printing operation. Details If wrong size is loaded in the tray, the above popup screen will be dis- played.

  • Page 664: If "Memory Full" Message Is Displayed (Memory Overflow)

    Troubleshooting 16.4 If “Memory Full” Message Is Displayed (Memory Overflow) In certain modes, this machine uses memory to make operations convenient and smooth flowing. Occasional memory overflow may occur if the installed memory is inade- quate for the print conditions selected, and the machine will stop its opera- tion with the following popup screen displayed.

  • Page 665: If Power Off/On Screen Is Displayed

    Troubleshooting 16.5 If Power OFF/ON Screen Is Displayed When any trouble affects the electrical signal of the machine, “Please switch Off/On” will be displayed in the message area. Follow the procedure below to turn the machine power off then on. Turn OFF the sub power switch.

  • Page 666: Troubleshooting Tips

    Troubleshooting 16.6 Troubleshooting Tips Machine does not operate when power switch is on - Check to be sure power plug is firmly inserted in electrical socket. - Check to be sure main power switch is ON. - Check to see if Weekly Timer function is activated. For details, refer to “When Weekly Timer Is Activated”...
  • Page 667 Troubleshooting Finisher/Folding unit does not operate - Check for a paper misfeed and remove it, as required. - Properly close finisher door/Folding unit door. Add toner message is displayed - New toner supply is needed. Follow instructions for adding toner. Call for pm is displayed in message area - Contact your service representative for Preventive Maintenance.
  • Page 668 Troubleshooting 16-16 bizhub PRO 1050P/1050eP...

  • Page 669: Maintenance

    Maintenance...

  • Page 671: Precautions For Paste Pellets And The Perfect Binder

    Maintenance Maintenance 17.1 Precautions for Paste Pellets and the Perfect Binder To ensure safety and product reliability, observe the precautions for using paste pellets and the Perfect Binder. Read “Safety Information” on page 1-3 as well. 7 CAUTION Precautions for Paste Pellets Paste pellets are not edible;...

  • Page 672: Checking Print Count

    Maintenance 17.2 Checking Print Count The Utility Menu Screen allows you to view the current indication of the fol- lowing items as a list. - Total count - Feed paper count - Output paper count - Printer total count - Copier total count (for tandem) - PM count, cycle, counter start date - Developer count, cycle, counter start date - Drum count, cycle, counter start date...
  • Page 673 Maintenance The Utility Menu Screen will be displayed. Details The Utility Menu Screen can be displayed even when the job operation is in progress. The counter information will be displayed on the left side of the screen. Touching [Exit] will return to the previous screen. Touch [Detail].
  • Page 674 Maintenance Details The Developer count and Drum count can be selected to indicate either the cycle count or runtime count. Contact your service representative, if desired. Print the counter list, if desired. Touch [PRINT] tab at the upper left corner of the screen, then press [Start].

  • Page 675: If "Trim Receiver Exchange" Message Is Displayed

    Maintenance 17.3 If “Trim Receiver Exchange” Message Is Displayed This machine trims the printed sets using a cutting blade and its receiver, which may require replacement in a long period of use. When replacement is due, a “Trim Receiver exchange” message appears un- der the Trim Dust indicator in the option status area of the Machine Status Screen.

  • Page 676: Cleaning Conveyance Belt Of Saddle Stitcher Tray

    Maintenance 17.4 Cleaning Conveyance Belt of Saddle Stitcher Tray The conveyance belt of saddle stitcher tray should be kept clean, otherwise soil marks may be printed. Follow the procedure below to clean the convey- ance belt. In order to maintain optimum print quality, we recommend to clean it every time before using the saddle stitcher tray.
  • Page 677 Maintenance Clean the surface of the two convey- ance belts with a soft cloth damp- ened slightly with alcohol (cleaner). Move the conveyance belt to clean the whole length. Raise the two belts lightly, then pull them both frontward at the same time in order to show the hidden parts.
  • Page 678 Maintenance Return the tray stand to its original position, then return the saddle stitcher tray. Reminder Never return the saddle stitcher tray to its original position with the tray stand opened. 17-10 bizhub PRO 1050P/1050eP...

  • Page 679: Preventive Maintenance

    Maintenance 17.5 Preventive Maintenance After a set number of prints (750,000 prints) have been made on your ma- chine, Preventive Maintenance (PM) will be required for maintaining optimal performance. When preventive maintenance is due, a message and the PM icon will prompt you to contact your service representative for maintenance.
  • Page 680 Maintenance 17-12 bizhub PRO 1050P/1050eP...

  • Page 681: Machine Specifications

    Machine Specifications...

  • Page 683: Main Body Specifications

    Machine Specifications Machine Specifications These specifications are subject to change without notice. 18.1 Main Body Specifications 18.1.1 Main Body Specifications Name bizhub PRO 1050P/1050eP Type Console type Transfer method Indirect electrostatic method Light-sensitive unit Developing method Dry, 2-component magnetic brush developing Fixing method Heat roller Density adjustment...

  • Page 684: Paper Feeder Unit Pf-701

    Machine Specifications Specifications First print time Approx. 9.0 seconds (A4) Power AC 230V / 15A; 50Hz (This equipment selects the correct volt- age automatically.) Power consumption 3.00 KW max. (with option) Sound power level 80 dB max. (with option) Weight Approx.
  • Page 685 Machine Specifications 18.2 Option Specifications 18.2.1 Paper Feeder Unit PF-701 Specifications Function: Paper feed into main body (3 trays) Paper sizes A3, B4, A4, B5, B5R, F4, 12”×18”, 11"×17", 8.5"×14", 8.5"×11", and those wide sizes (max. 324 mm × 460 mm) Types of paper •...
  • Page 686 Machine Specifications 18.2.3 In-Bin Stapler Finisher FS-503 Specifications Type Offset catch tray Functions Staple, Straight delivery, Shift delivery, Output to secondary tray Paper sizes • Staple: A3, B4, A4, A4R, B5, A5, F4, 12"×18", 11"×17", 8.5"×14", 8.5"×11", 8.5"×11"R, 5.5"×8.5", 8K, 16K and those wide sizes (max.
  • Page 687 Machine Specifications 18.2.4 Folding Unit FD-501 Specifications Functions Punch, Folding, Post inserting (PI), Straight delivery, Output to secondary tray Number of punch holes 2 or 4 ± ± Hole diameter 6.5 mm 0.5 mm (2 holes) / 8.0 mm 0.5 mm (4 holes) ±...
  • Page 688 Machine Specifications 18.2.5 Saddle Stitcher SD-501 Specifications Functions Multi-folding (Multi Centre, Multi Letter), Fold&Staple, Trim- ming, Straight delivery Processing capability 105 sheets per minute at maximum Types of paper • 50 to 244 g/m paper (Multi Centre, Fold&Staple, Trim- ming) •...

  • Page 689: Perfect Binder Pb-501

    Machine Specifications 18.2.6 Perfect Binder PB-501 Specifications Functions Hot-melt type binding, Trimming, Manual binding, Straight de- livery to secondary (sub) tray Processing capability 105 sheets per minute at maximum Number of sheets (1 set) 10 to 300 sheets, or within 30 mm thick Paper sizes •...
  • Page 690 Machine Specifications 18-10 bizhub PRO 1050P/1050eP...

  • Page 691: Appendix

    Appendix...

  • Page 693: How To Input Characters

    Appendix Appendix 19.1 How to Input Characters As touching the item where you can input characters, the character input screen appears. You can input alphanumerics and symbols. A character array is the same with the computer keyboards. 19.1.1 About keys on the character input screen Keys on the character input screen are described here.

  • Page 694: About Character Input

    Appendix 19.1.2 About character input The followings describe basic steps to input characters on the character in- put screen. Touch the corresponding key to input the desired character. Touch [OK]. The character input screen closes. The input characters are displayed on the corresponding column.

  • Page 695: How To Search

    Appendix 19.2 How to Search 19.2.1 Searching a box/file You can search quickly the desired box out of the boxes created on the in- ternal HDD by its Box No. Also, if you know the Folder Name, Box Name and File Name, you can per- form the Direct Call.

  • Page 696: Direct Call

    Appendix 19.2.3 Direct Call If you know all the registered Folder Name, Box Name and File Name, or if you know the Box Name and File Name, you can select the file by using the [Direct Call] key in the [STORE] / [RECALL] screen. The following is how to use the [Direct Call] key.
  • Page 697 Appendix Input the Folder Name and press the [OK] key. The Box Name input screen appears. Input the Box Name and press the [OK] key. The File Name input screen appears. bizhub PRO 1050P/1050eP 19-7...
  • Page 698 Appendix Input the File Name and press the [OK] key. The screen appears with the desired file being selected. When a corresponding file does not exist, the message "Failed direct call" appears. Confirm that the Folder Name, Box Name and File Name are correct, and return to the step 1 to repeat the procedures.

  • Page 699: Setting Data For Import/Export

    Appendix 19.3 Setting Data for Import/Export [1] System Main menus Sub menus Target items Device Infor- Device Infor- Device Name Device Place Administrator Name mation mation Online Assist- Online Assist- Contact Name ance ance Contact Information Product Help URL Corporate URL Supplies and Accessories Online Help URL AlertMail...
  • Page 700 Appendix [2] Print Main menus Sub menus Target items Interface Interface Parallel Timeout Network Timeout Default Setting General Input Tray Output Tray Duplex Binding Staple Punch Center Staple/CenterFold/Trimming Offset Output Order Page Order Print Number Collate Paper Size Orientation Resolution Spool setting Banner Option Banner Page Tray...
  • Page 701 Appendix [3] Network Main menus Sub menus Target items TCP/IP TCP/IP TCP/IP Speed Auto IP IP Adress Subnet Mask Default Gateway Host Name Domain Name DNS Server RAW Port Number1 RAW Port Number2 RAW Port Number3 RAW Port Number4 RAW Port Number5 RAW Port Number6 IP Address Fil- Access Permission Address...
  • Page 702 Appendix Main menus Sub menus Target items IPP Print Printer Name Printer Location Printer Information Printer URI Operations Supported Print Job Accept Print Job Validate Job Cancel Job Get Job Attribute Get Jobs Get Printer Attribute Server FTP Server SNMP SNMP SNMP Print...
  • Page 703 Appendix Main menus Sub menus Target items AP I/F AP I/F Port Number Use SSL/TLS Port Number(SSL/TLS) bizhub PRO 1050P/1050eP 19-13...

  • Page 704: Configuration Setting

    Appendix 19.4 Configuration Setting Note This list indicates the configuration setting for bizhub PRO 1050. When using bizhub PRO 1050P, the configuration setting list will include only the settings specific to bizhub PRO 1050P. 19-14 bizhub PRO 1050P/1050eP...
  • Page 705 Appendix bizhub PRO 1050P/1050eP 19-15...
  • Page 706 Appendix Print Sample 19-16 bizhub PRO 1050P/1050eP...
  • Page 707 Appendix Print Sample bizhub PRO 1050P/1050eP 19-17...
  • Page 708 Appendix Print Sample 19-18 bizhub PRO 1050P/1050eP...
  • Page 709 Appendix Print Sample bizhub PRO 1050P/1050eP 19-19...

  • Page 710: Font List

    Appendix 19.5 Font List Print Sample 19-20 bizhub PRO 1050P/1050eP...
  • Page 711 Appendix Print Sample bizhub PRO 1050P/1050eP 19-21...
  • Page 712 Appendix Print Sample 19-22 bizhub PRO 1050P/1050eP...
  • Page 713 Appendix Print Sample bizhub PRO 1050P/1050eP 19-23...
  • Page 714 Appendix Print Sample 19-24 bizhub PRO 1050P/1050eP...
  • Page 715 Appendix Print Sample bizhub PRO 1050P/1050eP 19-25...
  • Page 716 Appendix Print Sample 19-26 bizhub PRO 1050P/1050eP...
  • Page 717 Appendix Print Sample bizhub PRO 1050P/1050eP 19-27...
  • Page 718 Appendix Print Sample 19-28 bizhub PRO 1050P/1050eP...
  • Page 719 Appendix Print Sample bizhub PRO 1050P/1050eP 19-29...
  • Page 720 Appendix Print Sample 19-30 bizhub PRO 1050P/1050eP...

  • Page 721: Pcl Font List

    Appendix 19.6 PCL Font List Font# Font Pitch/Point Courier scalable CG Times scalable CG Times Bold scalable CG Times Italic scalable CG Times Bold Italic scalable CG Omega scalable CG Omega Bold scalable CG Omega Italic scalable CG Omega Bold Italic scalable Coronet scalable...
  • Page 722 Appendix Font# Font Pitch/Point Times New scalable Times New Bold scalable Times New Italic scalable Times New Bold Italic scalable Helvetica scalable Helvetica Bold scalable Helvetica Olique scalable Helvetica Bold Oblique scalable Helvetica Narrow scalable Helvetica Narrow Bold scalable Helvetica Narrow Oblique scalable Helvetica Narrow Bold Oblique scalable...
  • Page 723 Appendix Font# Font Pitch/Point Symbol scalable Wingdings scalable Courier Bold scalable Courier Italic scalable Courier Bold Italic scalable Letter Gothic scalable Letter Gothic Bold scalable Letter Gothic Italic scalable CourierPS scalable CourierPS Bold scalable CourierPS Oblique scalable CourierPS Bold Oblique scalable Line Printer 16.67/8.5...

  • Page 724: Glossary

    Appendix 19.7 Glossary Term Description 10BASE-T/100BASE-TX/ Types of specifications in compliance with the Ethernet 1000BASE-TX standard. Cables made of two stranded copper wire rods are used. Communication speed is 10Mbps with 10Base-T, 100Mbps with 100Base-TX, and 1000Mbps with 1000Base-TX. APOP Abbreviation of Authenticated Post Office Protocol.
  • Page 725 Appendix Term Description LPR/LPD Abbreviation of Line Printer Request/Line Printer Daemon. A type of printing through a network of the WindowsNT sys- tem or UNIX system. Printing data from Windows or UNIX can be transmitted to a printer on a network using TCP/IP. Memory Unit to save data temporarily.
  • Page 726 Appendix Term Description SSL/TLS Abbreviation of Secure Socket Layer/Transport Layer Secu- rity. An encryption system to transmit data in safe between an Web server and browser. TCP/IP Abbreviation of Transmission Control Protocol/Internet Pro- tocol. Substantially the standard protocol used for the Internet. Uses IP address to identify each network device.

  • Page 727: Index
