Controlling Attachments With Joystick 4Plus And The 5Th Function - Still RX20 Series Original Instructions Manual

Operation

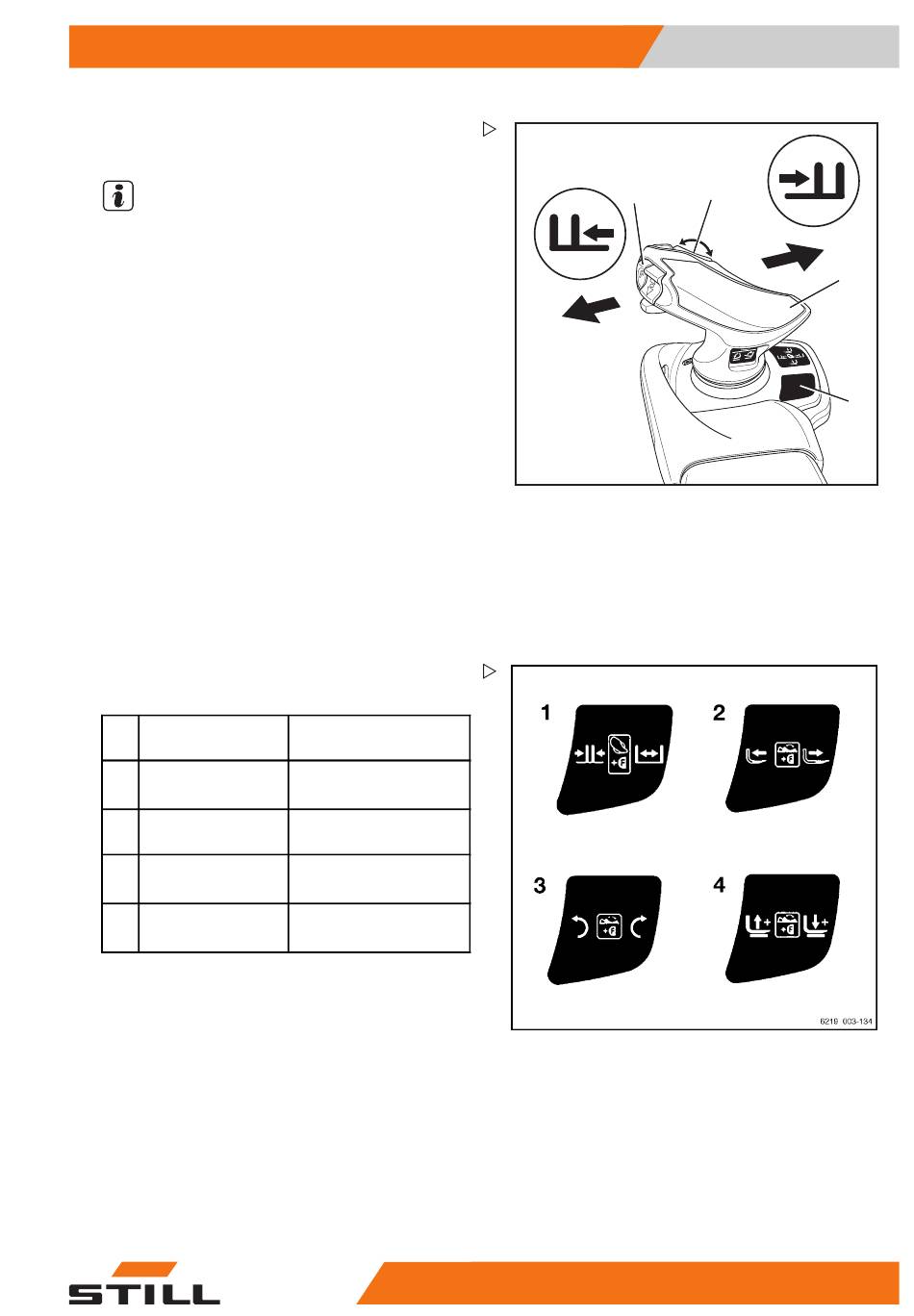

Controlling attachments with Joy-
stick 4Plus and the 5th function
NOTE
For technical reasons, clamping attachments
must not be controlled via the 5th function.
Use shift key "F" (4) and the Joystick 4Plus (2)
and the horizontal rocker button (1) to control
the "5th function".
The adhesive label bearing the pictograms
for the hydraulic functions (3) for the Joy-
stick 4Plus (2) and for the rocker button (1) is
affixed at the designated point.
– If the adhesive label becomes illegible or is
not present, please contact your authorised
service centre.
The pictograms on the adhesive label regard-
ing operation of the Joystick 4Plus show the
respective functions that are activated by
the individual operating devices of the Joy-
stick 4Plus.
– Note the following attachment functions and
pictograms.
Operating device
Shift key "F" and
1
Joystick 4Plus
Shift key "F" and
2
rocker button
Shift key "F" and
3
rocker button
Shift key "F" and
4
rocker button
The following applies:
– Press and hold shift key "F" (4).
– Move the Joystick 4Plus (2) in the direc-
tion (E) or (F).
The attachment moves accordingly in the
directions (E) or (F) as shown in the pictogram.
– Push the rocker button (1) in the direc-
tion (G) or (H).
The attachment moves accordingly in the di-
rections (G) or (H) as shown in the pictogram.
Function of the
attachment
Adjust fork arms:
close/open
Adjust fork:
backwards/forwards
Swivel lift mast or
fork: left/right
Additional fork
carriage: lift/lower
56368011531 EN - 06/2019 - 02
4
G
E
6219_003-166_V2
4
Attachments
1
F
H
2
3
251
