Operation

Replacing the battery using a truck

Preparing
WARNING
Risk of accident!
The load capacity of the truck in use must at least
match the battery weight (see the battery name-
plate).
– Observe the nameplates of the battery and of the
change frame.

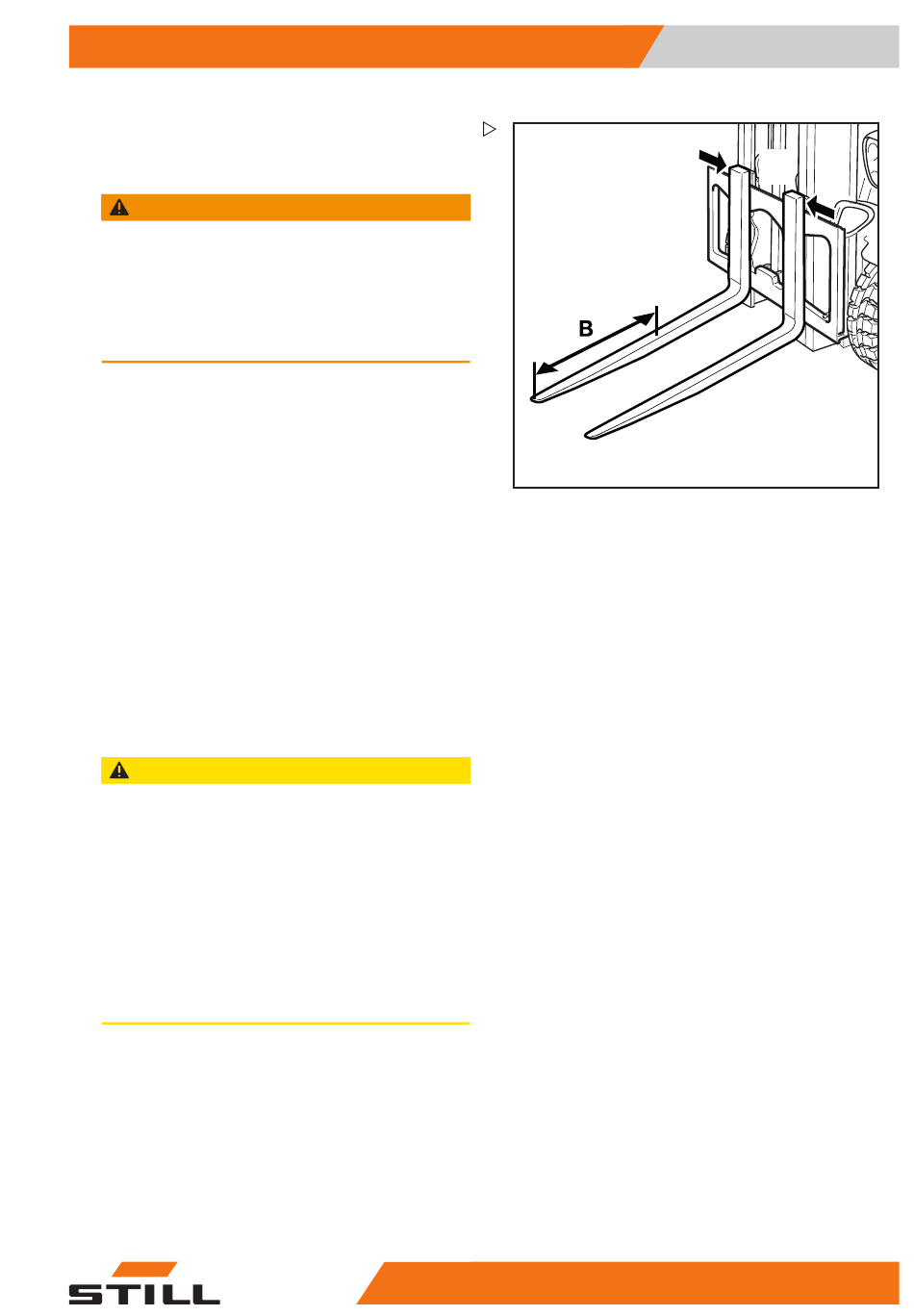

– Before picking up the battery, the fork arms
must be adjusted to match the opening
in the chassis (A). Push the fork arms
together, selecting the maximum possible
distance.
The fork arms must not be moved under
the battery any further than the length of the
chassis opening (B = max. 850 mm).
It is useful to mark this measurement (B)
(measured from the fork tips) on the fork arms.
Removing the battery
– Park the truck safely and switch it off.
– Open the battery door.
CAUTION
Potential for damage to the battery male connector!
If the battery male connector is disconnected while
the truck is switched on (under load), an arc will be
produced. This can lead to erosion at the contacts,
which considerably shortens the service life of the
contacts.
– Switch off the truck before the battery male
connector is disconnected.
– Do not disconnect the battery male connector
while the truck is switched on, except in an
emergency.
Replacing and transporting the battery
