Operation
Controlling attachments using
the double mini-lever and the
5th function
NOTE
For technical reasons, clamping attachments
must not be controlled via the "5th function".

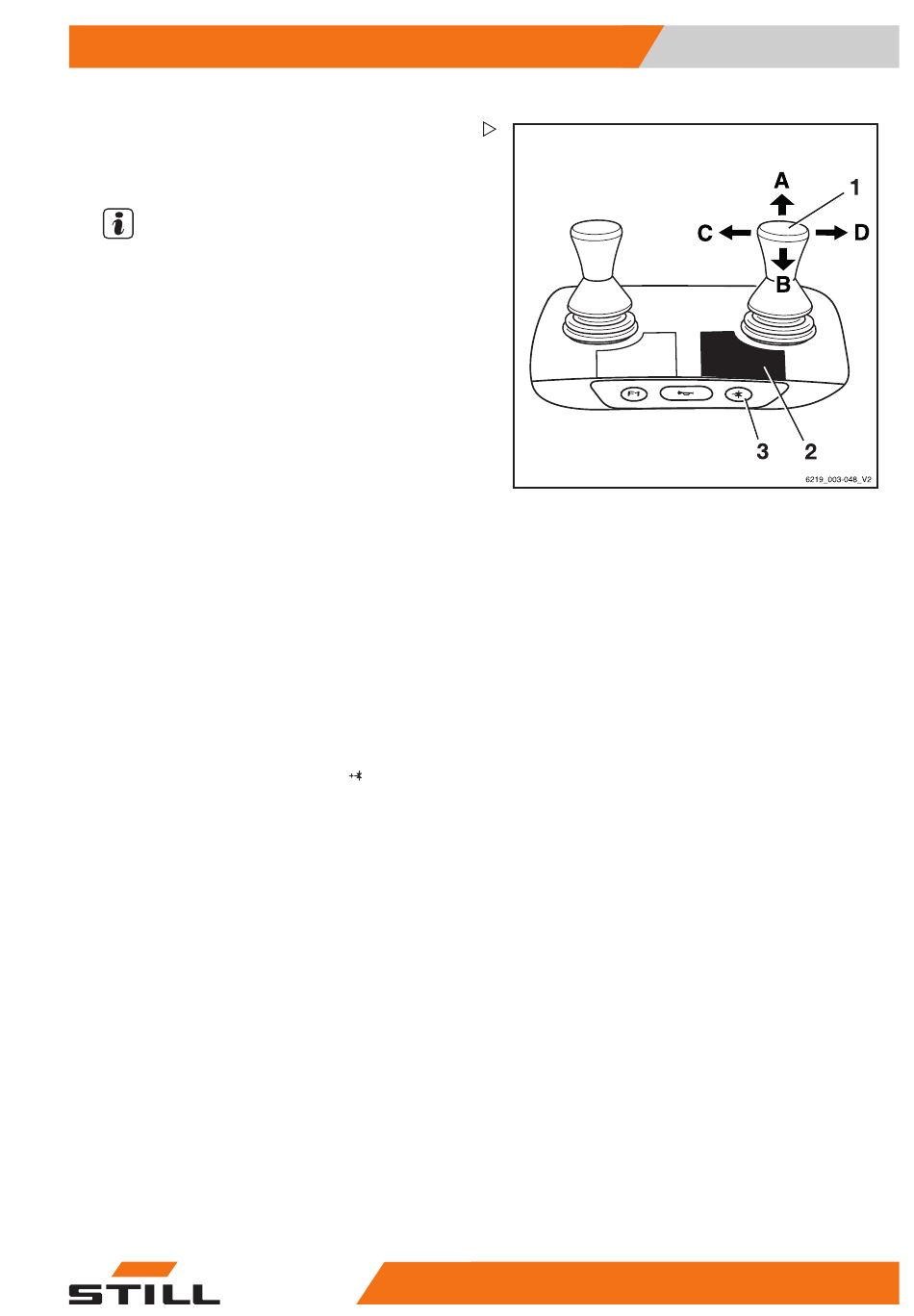

The function key for the "5th function" (3) and
the cross lever (1) are used to control the
"5th function".
The adhesive label bearing the pictograms
for the hydraulic functions (2) is affixed at the
designated point.
– If the adhesive label becomes illegible or
is missing, please contact your authorised
service centre.
– Observe the pictograms for the attachment
functions on the adhesive label (2).
The pictograms on the "attachments" cross
lever show the respective functions that are
activated by this lever.
The following applies:
– Actuate the function key for the "5th func-
tion" (3).
The LED for the "5th function"
– Move the "attachments" cross lever (1) in
the direction of the arrow (A), (B), (C) or (D).
The attachment moves accordingly in the
directions (A), (B), (C) or (D) as shown in the
pictogram.
lights up.
