Applying the mechanical parking
brake
DANGER
There is a risk of fatal injury from being
run over if the truck rolls away.
– The truck must not be parked on a
slope.
– In emergencies, secure the truck
using wedges on the side facing
downhill.
– Only leave the truck when the
parking brake has been applied.

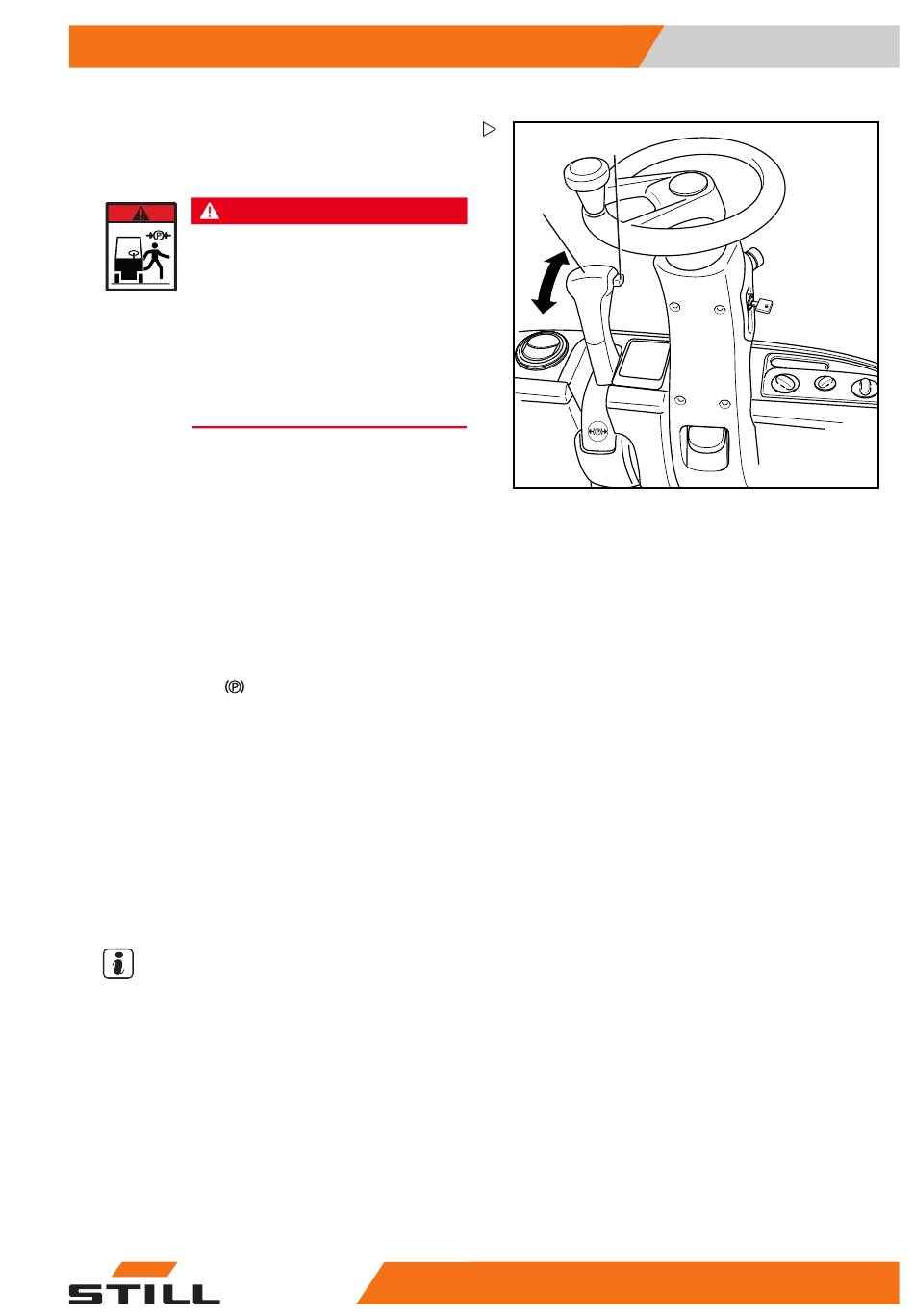

Applying the parking brake
– Pull the parking brake lever (1) back fully
and release it.
The parking brake lever engages. The parking
brake is applied. The wheels on the drive axle
are blocked. The message
appears briefly on the display of
active
the display-operating unit. The "parking
brake" symbol appears on the display
in place of the speed information.
Releasing the parking brake
– Pull the parking brake lever (1) back.
– Push down the knob (2) and hold it down.
– Move the parking brake lever (1) forwards
and release both the lever and the knob.
The parking brake is released.
NOTE
The parking brake lever swivels to the forward
position automatically via spring force and
requires only gentle manual guidance. If the
movement of the parking brake is stiff, notify
the authorised service centre.
After the parking brake has been released, the
previously selected drive direction is retained
and is shown on the drive direction indicator.
