Your truck

Nameplate of the battery

The nameplate of the battery is mounted
on the battery tray. The information on this
nameplate describes the permitted area of
use of the battery.
– Only use explosion-protected batteries
that are approved for the area in which the
truck is to be used.
Battery conversion by Miretti

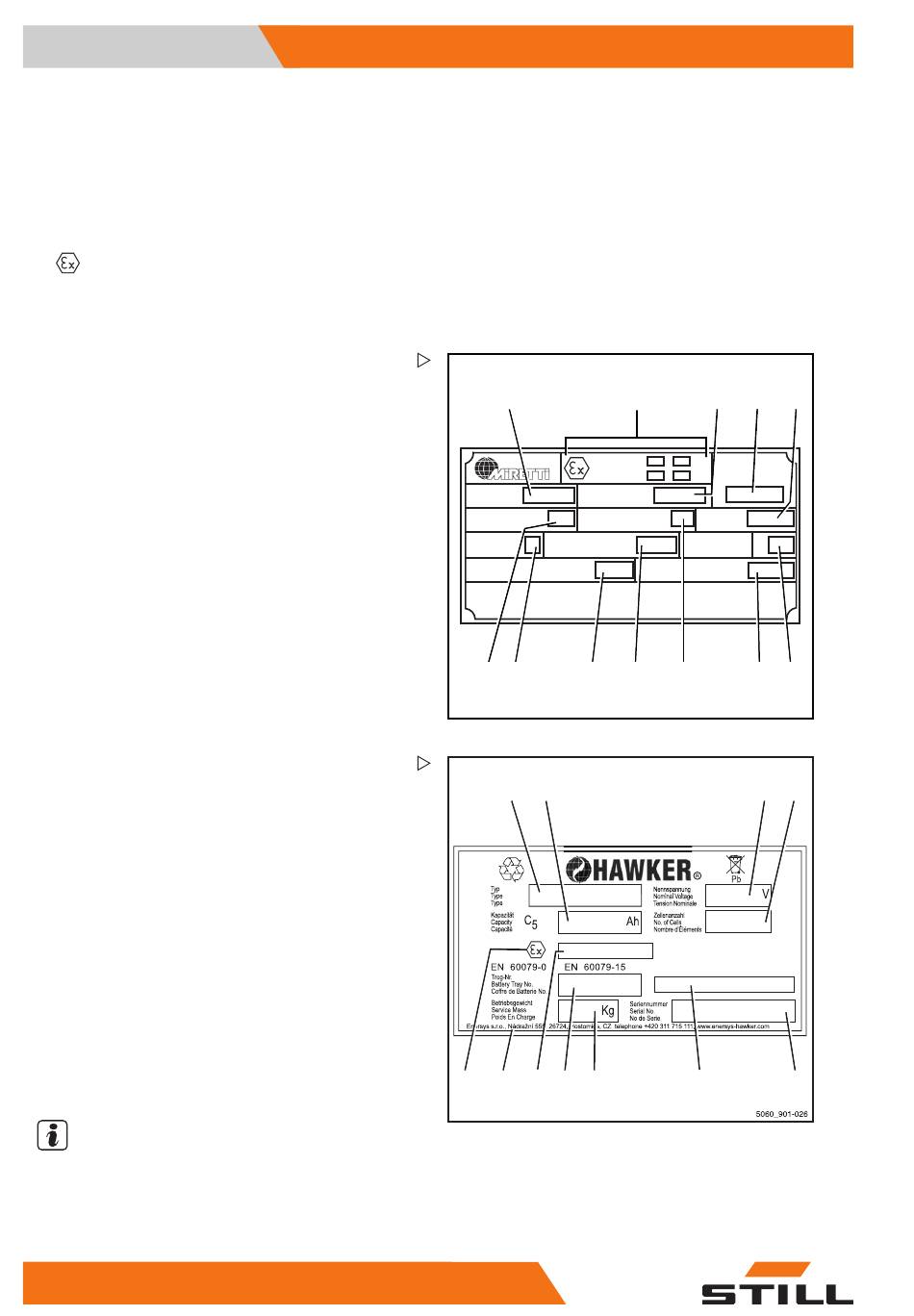

1 Serial number
2 Explosion-protection label and approved
area of application
3 Model
4 Cell manufacturer
5 Drawing number
6 Manufacturing year
7 Quality assurance
8 Nominal voltage
9 Cell type
10 Service weight
11 Number of cells
12 Capacity
Explosion-protected battery from
supplier
1 Model
2 Capacity
3 Nominal voltage
4 Number of cells
5 Serial number
6 HAWKER ATEX test number
®
7 Service weight
8 Tray number
9 Approved area of use
10 Address of manufacturer
11 Explosion protection notice
NOTE
In this example, the company HAWKER
quoted as the battery supplier. If the truck is
equipped with an explosion-protected battery
16
