Triple mini-lever
1
Drive direction switch
2
"Auxiliary hydraulics 1" operating lever
"Auxiliary hydraulics 2" operating lever
3
4
Function key for the "5th function"
NOTE
The authorised service centre can assign
different functions to the "F1" function key.

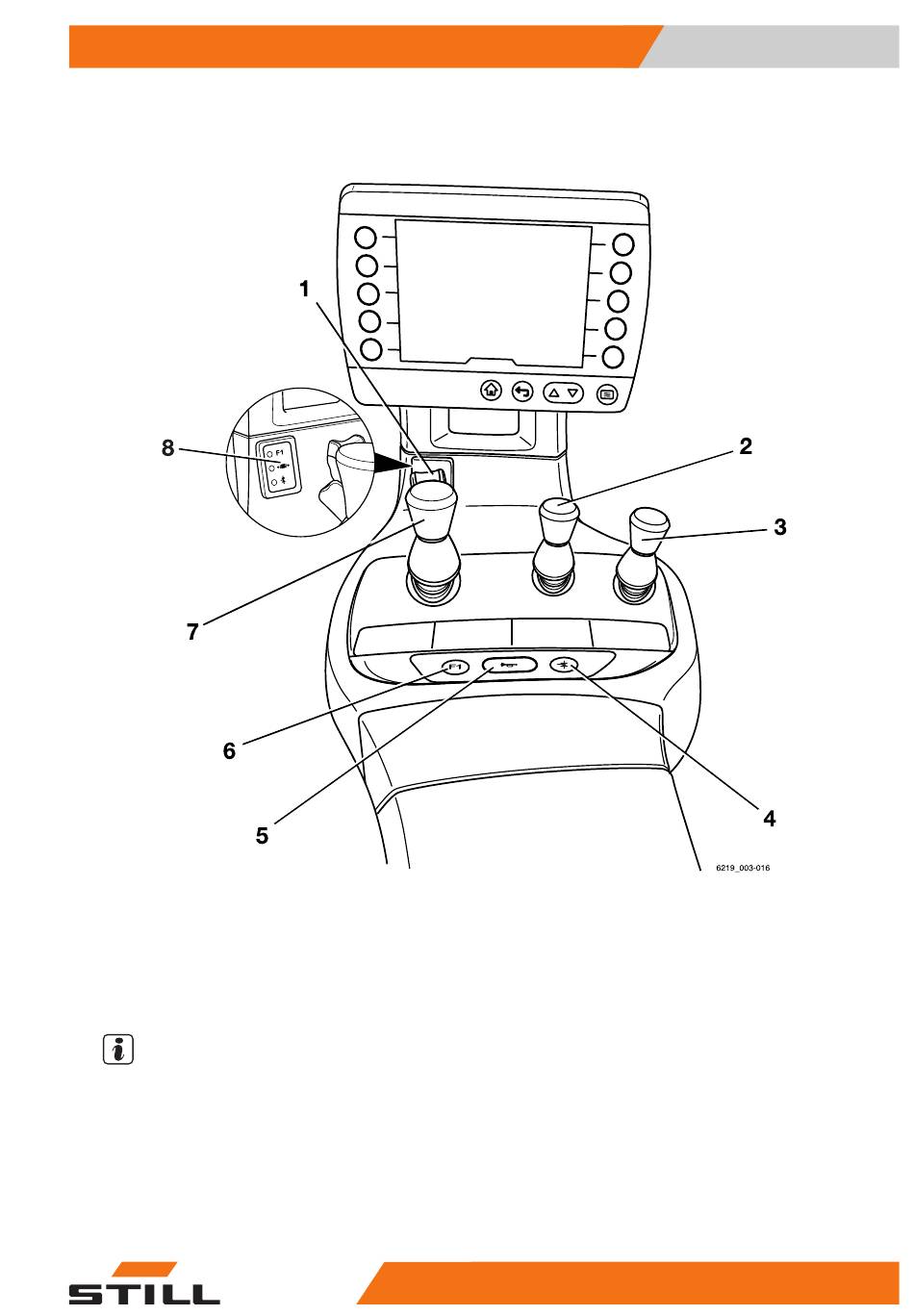

Operating devices and display elements
5
6
7
8
56368011531 EN - 06/2019 - 02
Signal horn button
"F1" function key
"Lift mast" 360° lever
Display field for the hydraulic functions
3
83
