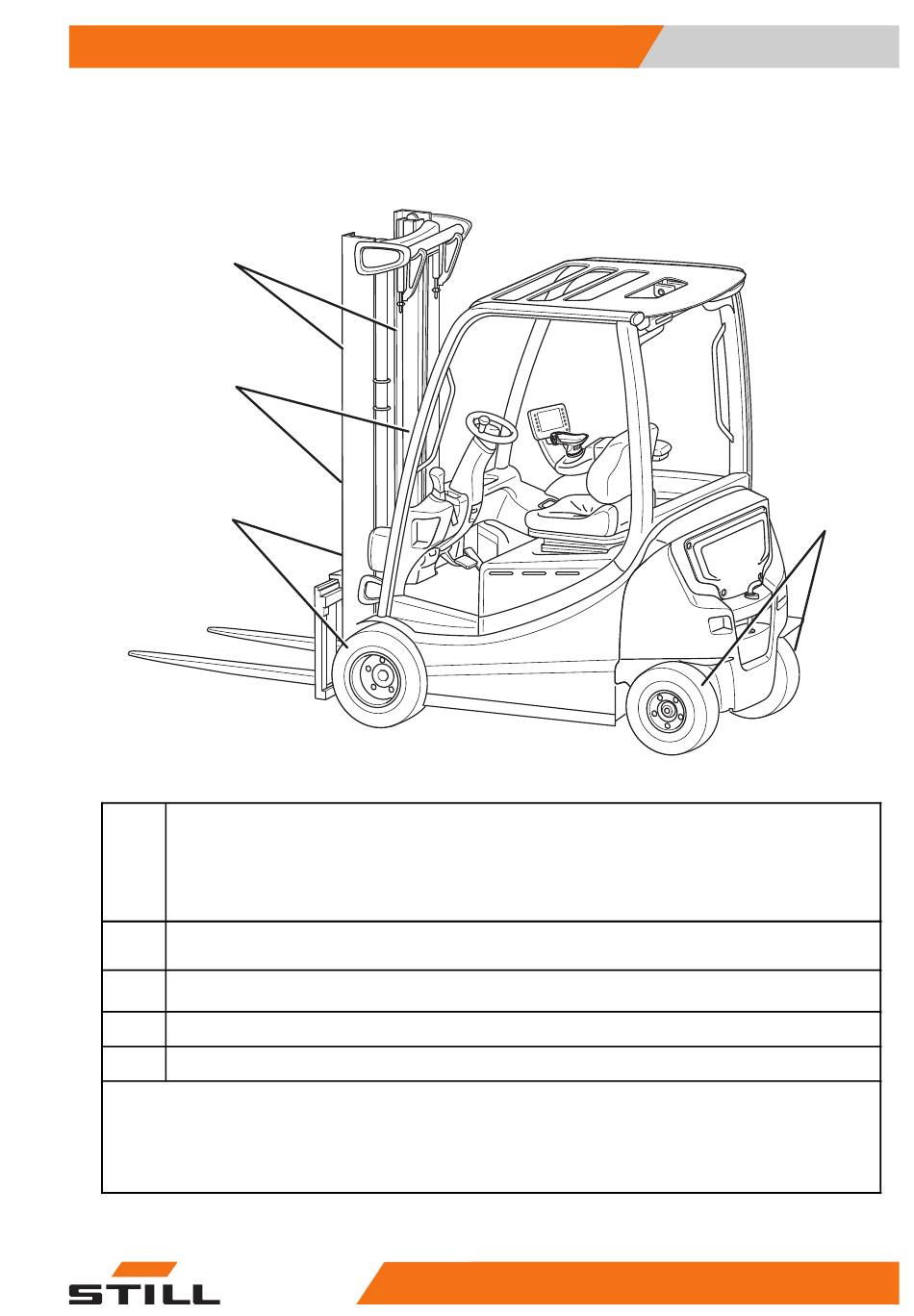

Lubrication plan
B
C
D
1
Lubrication point
Code
Swing axle: two lubricating nipples on each side of the steering axle on the steering arm
(A)
Steering turntable: not present
(B)
Sliding surfaces on the lift mast
(C)
Load chains
(D)
One lubricating nipple on each of the two lift mast bearings
1
The respective lubricant specification can be found in the "Maintenance data table" section
below, under this Code.
This lubrication plan describes the series-production truck with standard equipment. For main-
tenance points on variant trucks, see the relevant chapter and/or instructions provided by the
manufacturer.
.
56368011531 EN - 06/2019 - 02
