Operation
Controlling attachments using the
Joystick 4Plus

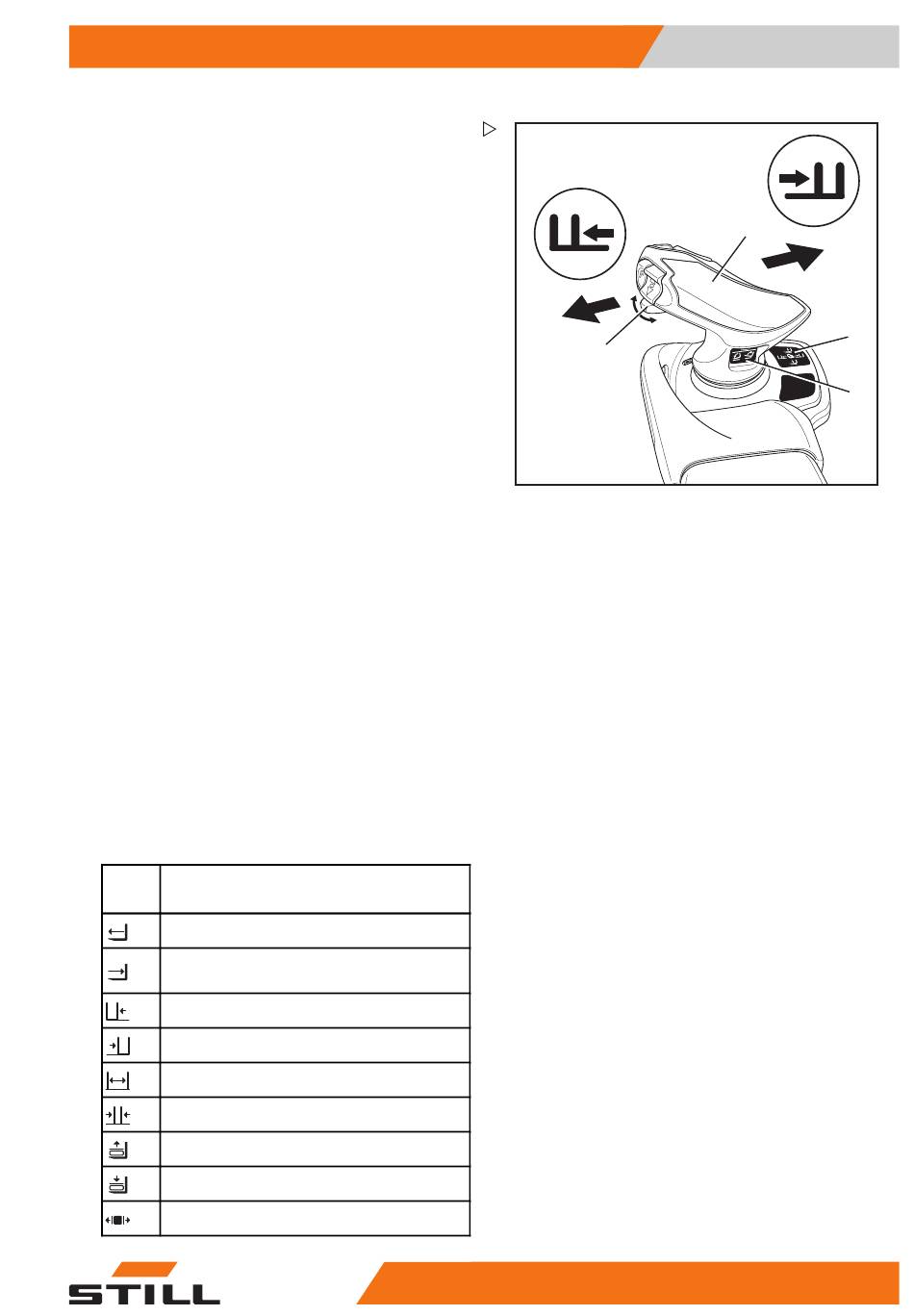

In this version, the attachments (variant) are
controlled via the Joystick 4Plus (1) and the
slider (4). The adhesive label bearing the
pictograms for the hydraulic functions (2)
for the Joystick 4Plus (1) and the adhesive
label (3) for the slider (4) are affixed at the
designated points.
– If the adhesive labels become illegible or are
not present, please contact your authorised
service centre.
– Observe the pictograms for the attachment
functions on the adhesive labels (2, 3).
The pictograms on the adhesive labels re-
garding operation of the Joystick 4Plus show
the respective functions that are activated by
the individual operating devices of the Joy-
stick 4Plus.
The following applies:
– Move the Joystick 4Plus (1) in the direction
of the arrow (A) or (B).
The attachment moves accordingly in the
directions (A) or (B) as shown in the pictogram.
– Move the slider (4) in the direction of the
arrow (C) or (D).
The attachment moves accordingly in the di-
rections (C) or (D) as shown in the pictogram.
Picto-
Attachment function
gram
Move side shift frame or fork forwards
Move side shift frame or fork back-
wards
Move sideshift to the left
Move sideshift to the right
Adjust fork arms: open
Adjust fork arms: close
Release load retainer
Clamp load retainer
Open clamps
A
6219_003-206
56368011531 EN - 06/2019 - 02
1
D
C
4
4
Attachments
B
2
3
249
