Lift Mast Tilt Angle Display (Variant); Overload Detection (Variant) - Still RX20 Series Original Instructions Manual

Operation

Lift mast tilt angle display (variant)

Knowing the actual tilt angle of the lift mast
makes it easier to place loads into stock
and remove loads from stock. If the truck is
equipped with the "lift mast tilt angle display"

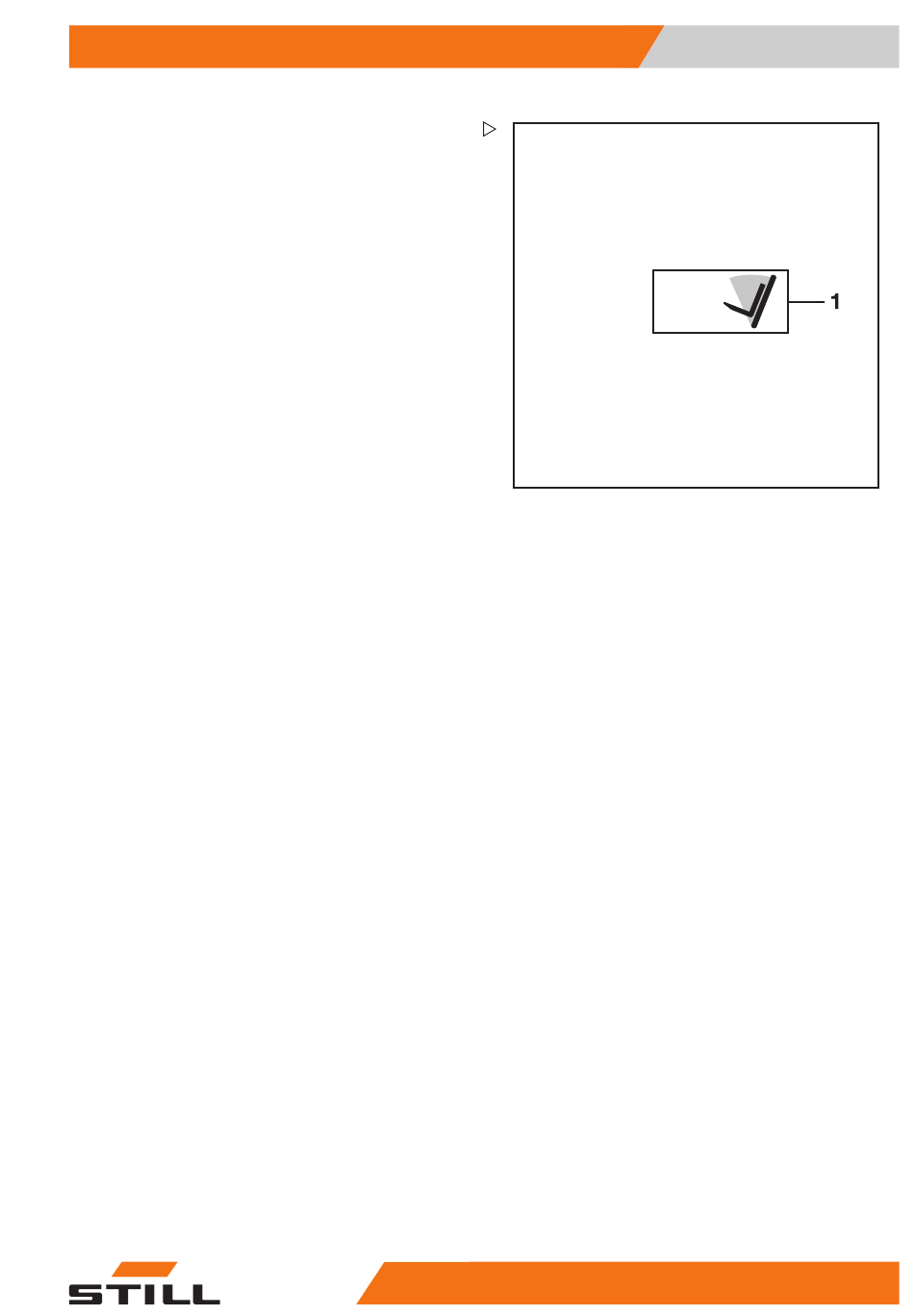

assistance function, the lift mast tilt angle (1)
is shown on the display.

Overload detection (variant)

As soon as an excessive load is picked up, the
"overload detection" variant warns the driver.
The message is shown on the
Overload
display-operating unit.
The maximum load always refers to the sum
of the load picked up plus any attachments
present. The authorised service centre can
configure the setting for the maximum load.
However, the maximum load must not be
higher than the nominal load.
The overload protection variant restricts the
hydraulic functions as follows:
• If the rated capacity or the maximum load
set by the driver is exceeded, the lifting
capacity is reduced.
• If the rated capacity is exceeded by more
than 10%, the "lifting" function can be only
used at creep speed.
