Lifting

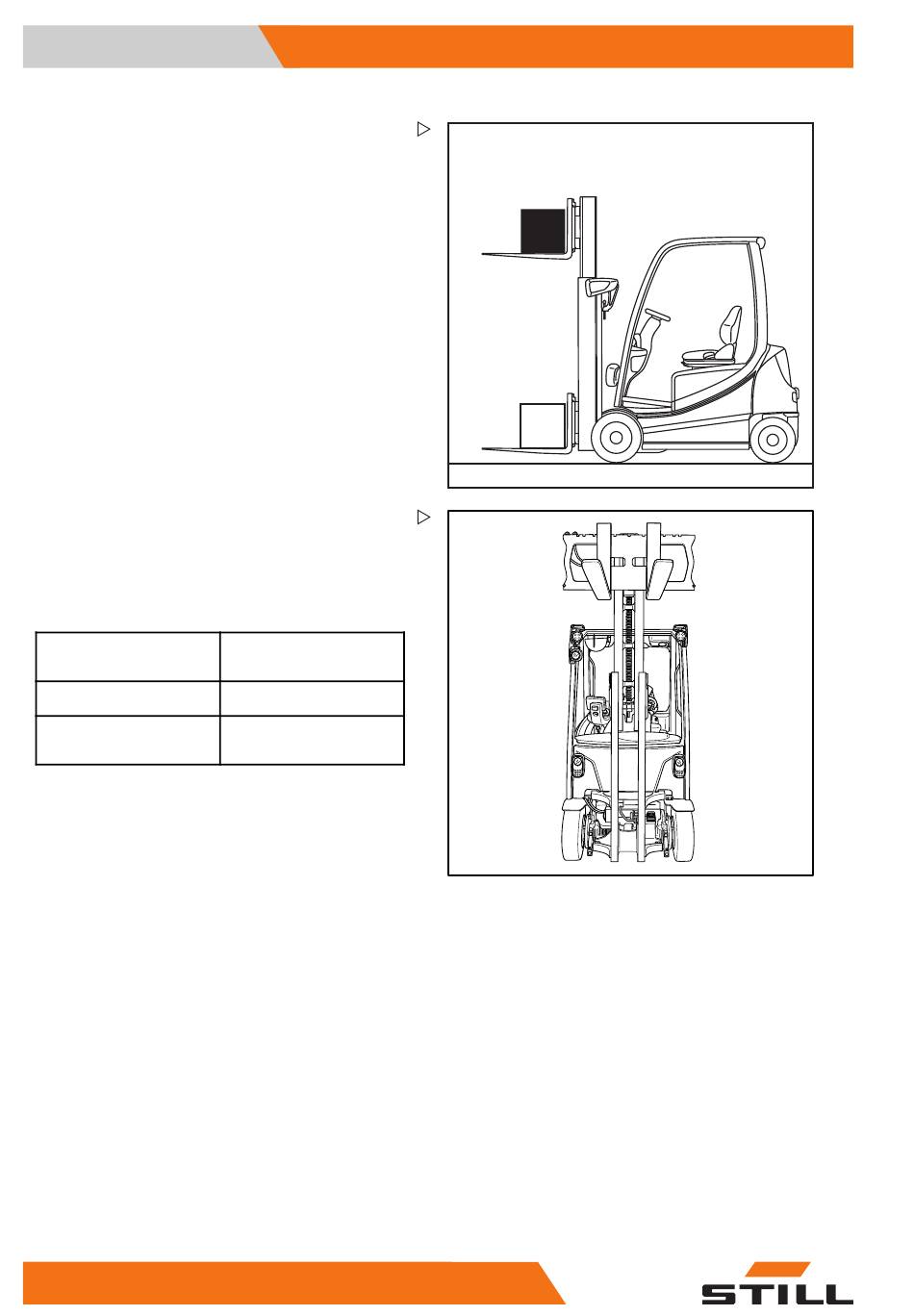

Mono lift mast "Easy-View"
When lifting, the inner lift mast rises above the
outer lift cylinders. The lift mast takes the fork
carriage with it via a chain. In this scenario,
the fork carriage rises at twice the speed of the
inner lift mast.
This lift mast has a low, narrow design to make
it easier to handle pallets. The driver has an
unobstructed view past the lift mast to the left
and right, and can also see over the lift mast.
Data
Height: lift mast
retracted (h )
1
Height: lift (h )
3
Rated capacity: load
(Q)
.
Operating devices for the lifting
system
The method of operating the lifting system
depends on the operating devices included in
the truck's equipment.
Possible equipment variants include:
• Multi-lever
• Double mini-lever
• Triple mini-lever
• Quadruple mini-lever
164
1650 mm
2137 mm
2000 kg
