4
Lifting
Controlling the lifting system using a
double mini-lever
DANGER
Reaching into or climbing between moving parts
of the truck (e.g. lift mast, sideshifts, working
equipment, load carrying devices etc.) can lead to
serious injury or death and is therefore prohibited.
– Observe the safety regulations for handling
loads.
– Operate the lifting system from the driver's seat
only.

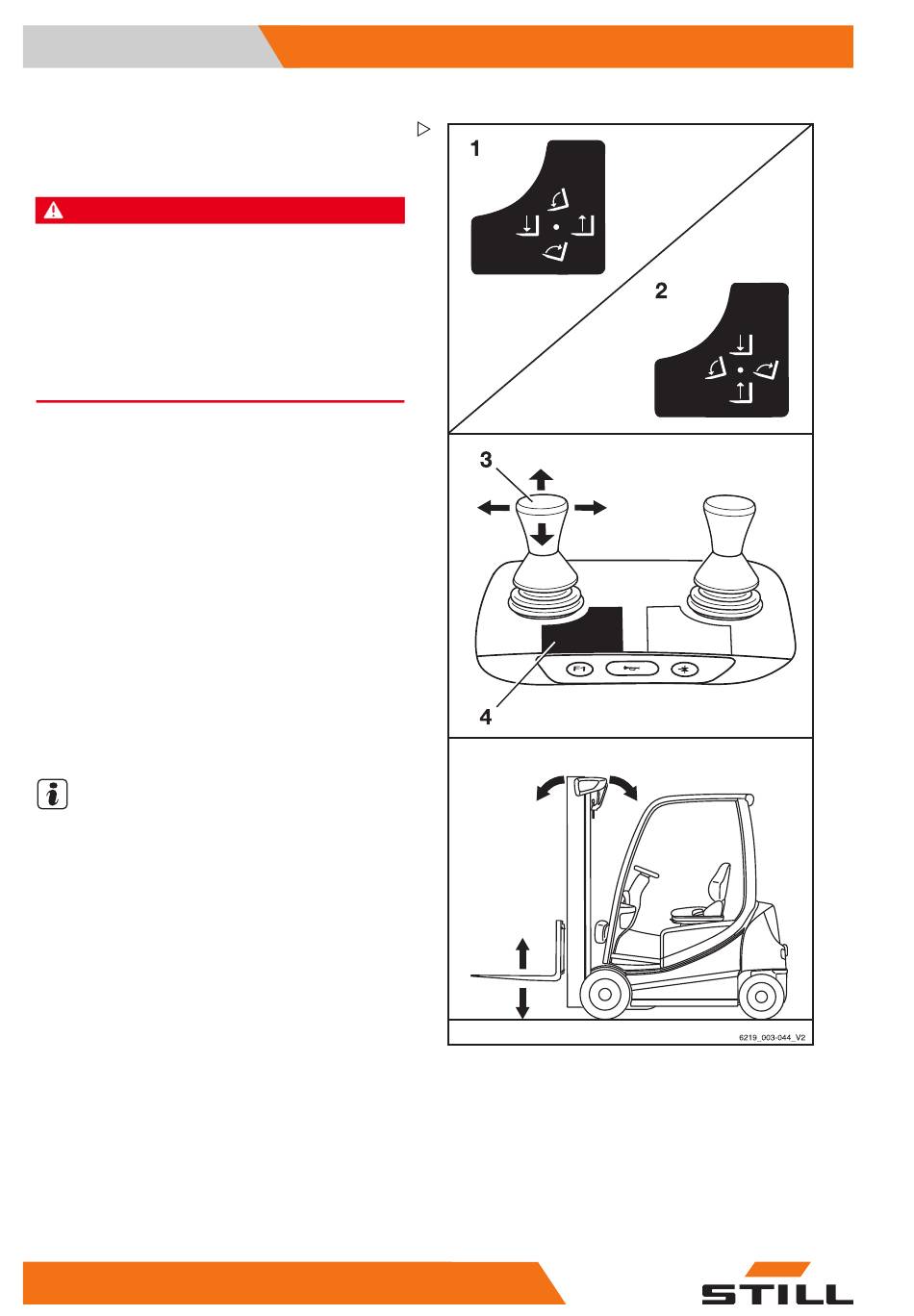

The lifting, lowering and tilting movements
of the lift mast are controlled using the "Lift
mast" 360° lever (3). The adhesive label
bearing the pictograms for the hydraulic
functions (1) or (2) is affixed at the designated
point (4).
– If the adhesive label becomes illegible or is
not present, please contact your authorised
service centre.
– Observe the pictograms on the adhesive
labels (1) and (2).
The pictograms are arranged according to the
direction of movement of the "lift mast" 360°
lever (3).
NOTE
The truck is configured at the factory in
accordance with the adhesive label (1). The
following steps for moving the fork carriage
and lift mast are based on this configuration.
Lifting/lowering the fork carriage
To lift the fork carriage:
– Move the "lift mast" 360° lever (3) in the
direction of arrow (B).
To lower the fork carriage:
– Move the "lift mast" 360° lever (3) in the
direction of arrow (A).
Tilting the lift mast
To tilt the lift mast forwards:
168 56368011531 EN - 06/2019 - 02
C D
B
A
Operation
