Lifting
WARNING
Risk of accident from the truck tipping over.

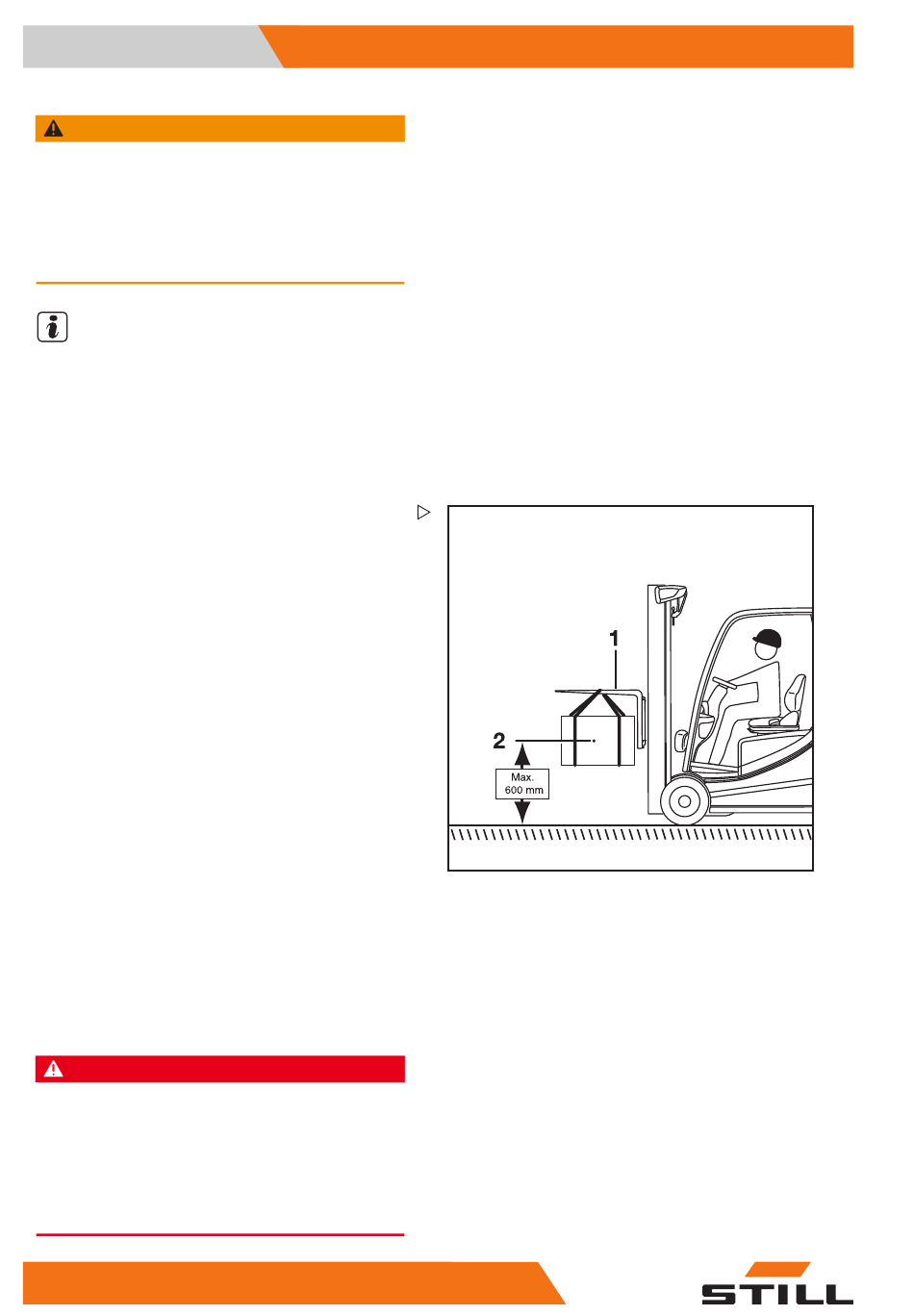

When driving, the centre of gravity of the load (2)
must not be more than 600 mm above the ground.
The truck may tip forwards when driving or braking.
– Only drive with a load centre of gravity up to a
max. of 600 mm above the ground
NOTE
If the truck is equipped with the "load mea-
surement" comfort feature (variant), a "zero
adjustment of the load measurement" must
always be performed after the fork arms have
been changed. Otherwise, correct load mea-
surement cannot be guaranteed.
Reversible fork arms (1) can be used to reach
an additional lift height. The reversible fork
arms are attached to the fork carriage in the
same manner as standard fork arms. Loads
may be lifted on and beneath the reversible
fork arms. The mast is lifted and tilted in the
same manner.
– Only work in reverse operation using
reversible fork arms.
– Do not use a fork extension (variant).
– If the "load measurement" comfort feature
(variant) is available, perform a "zero
adjustment of the load measurement".
– To drive, raise the load centre of gravity (2)
to a max. of 600 mm above the ground.
– Observe the information in the section
entitled "Transporting suspended loads".

Malfunctions during lifting mode

Incorrect extension sequence
DANGER
Risk of accidents!
In the case of Hi-Lo lift masts (variant) and triplex lift
masts (variant), an incorrect extension sequence
may occur, i.e. the inner lift mast may extend
before the free lift is complete. As a result, the
overall height is exceeded and damage may occur
in passageways or from low ceilings.
