Operation
Controlling attachments using
multi-lever operation and the 5th
and 6th function

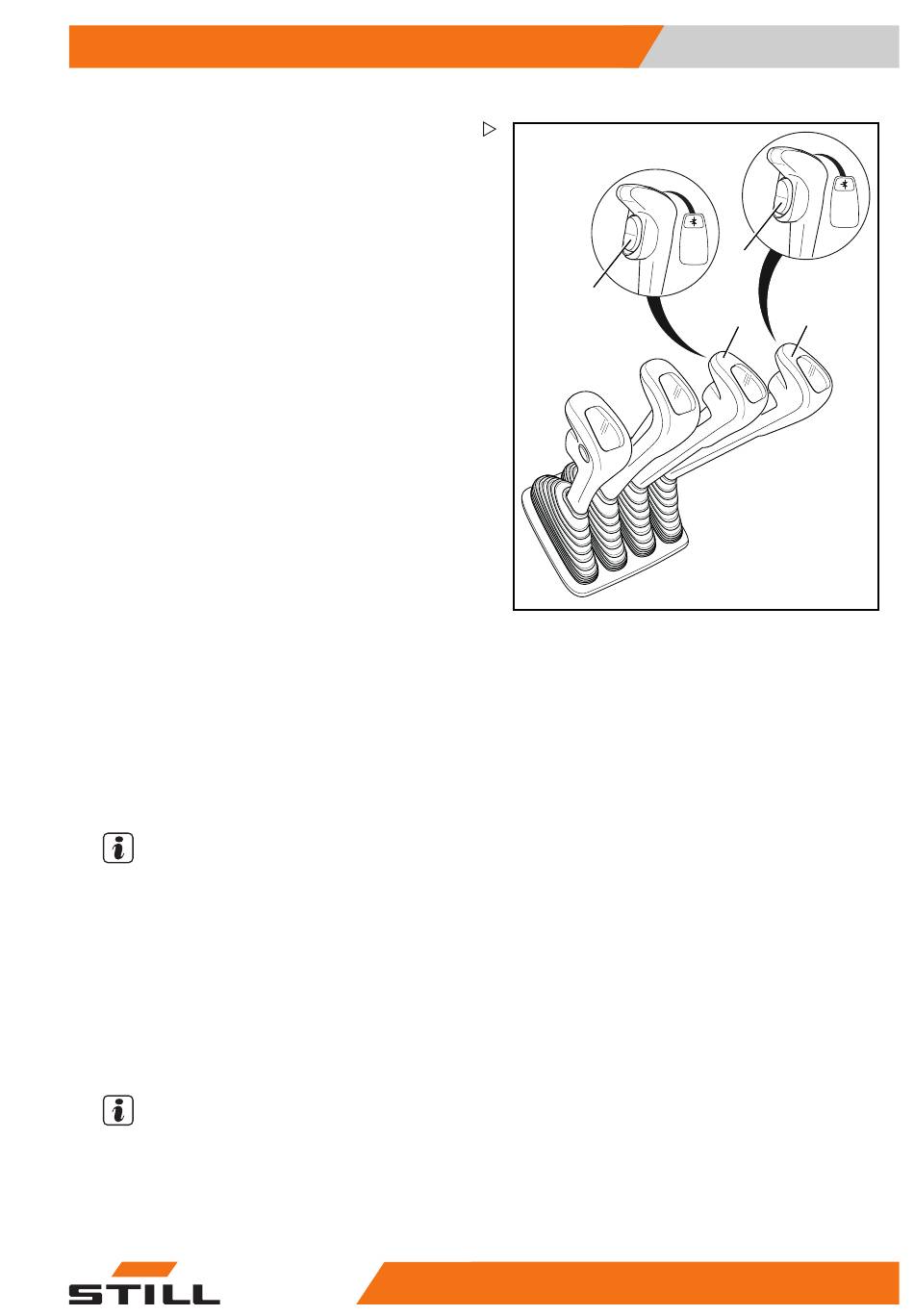

The function keys for the "5th and 6th func-
tion" (1, 2) and the operating levers (3, 4)
are used to control the "5th function" or the
"6th function".
The central and bottom parts of the pictograms
on each operating lever show the function
that is activated by that lever. The top part
of the pictogram shows that the attachment
is equipped with the "5th function" or the
"6th function".
The following applies:
– Move the operating lever (3, 4) forwards.
The attachment moves in the direction of
movement shown in the central part of the
pictogram.
– Move the operating lever (3, 4) backwards.
The attachment moves in the direction of
movement shown in the lower part of the
pictogram.
– Press and hold the switch (1).
The additional function of the attachment
is activated and can be controlled as the
"5th function" with the operating lever (4).
NOTE
The movement/action of the "5th function" can
be found in the operating instructions of the
attachment that is fitted.
– Press and hold the switch (2).
The additional function of the attachment
is activated and can be controlled as the
"5th function" or "6th function" with the op-
erating lever (3).
NOTE
The movement/action of the "5th function" or
"6th function" can be found in the operating
instructions of the attachment that is fitted.
56368011531 EN - 06/2019 - 02
2
1
4
4
Attachments
3
6219_003-118_V3
