Operation
Movements of the lifting system and
meanings of the pictograms
A Lowering
B Lifting
C Tilting forwards
D Tilting backwards
Controlling the lifting system using
the Joystick 4Plus
DANGER
Reaching into or climbing between moving parts
of the truck (e.g. lift mast, sideshifts, working
equipment, load carrying devices etc.) can lead to
serious injury or death and is therefore prohibited.
– Observe the safety regulations for handling
loads.
– Operate the lifting system from the driver's seat
only.

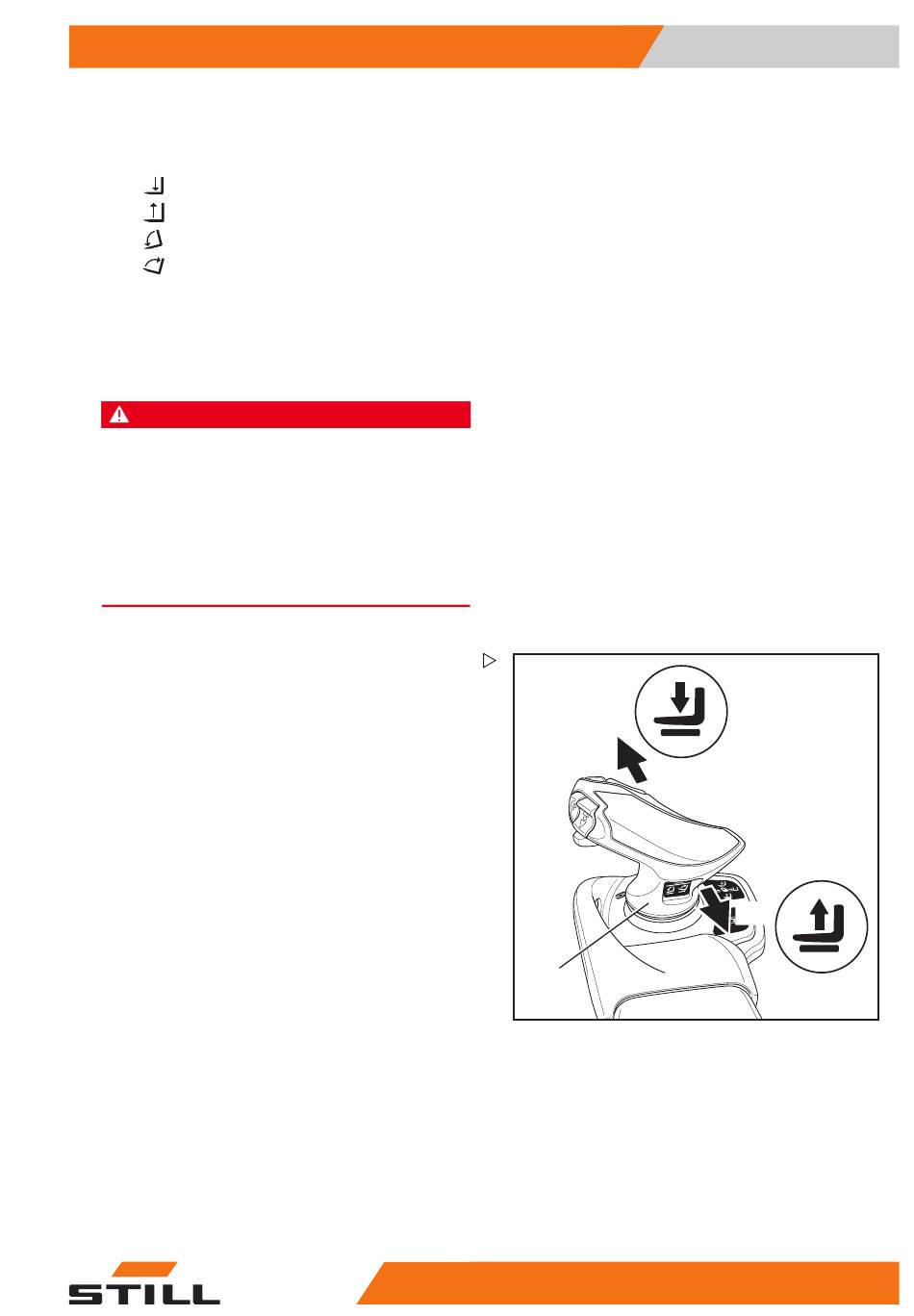

Lifting/lowering the fork carriage
To lift the fork carriage:
– Pull the Joystick 4Plus (1) backwards (B).
To lower the fork carriage:
– Push the Joystick 4Plus (1) forwards (A).
1
56368011531 EN - 06/2019 - 02
Lifting
A
B
6219_003-167_V2
4
175
