Operation

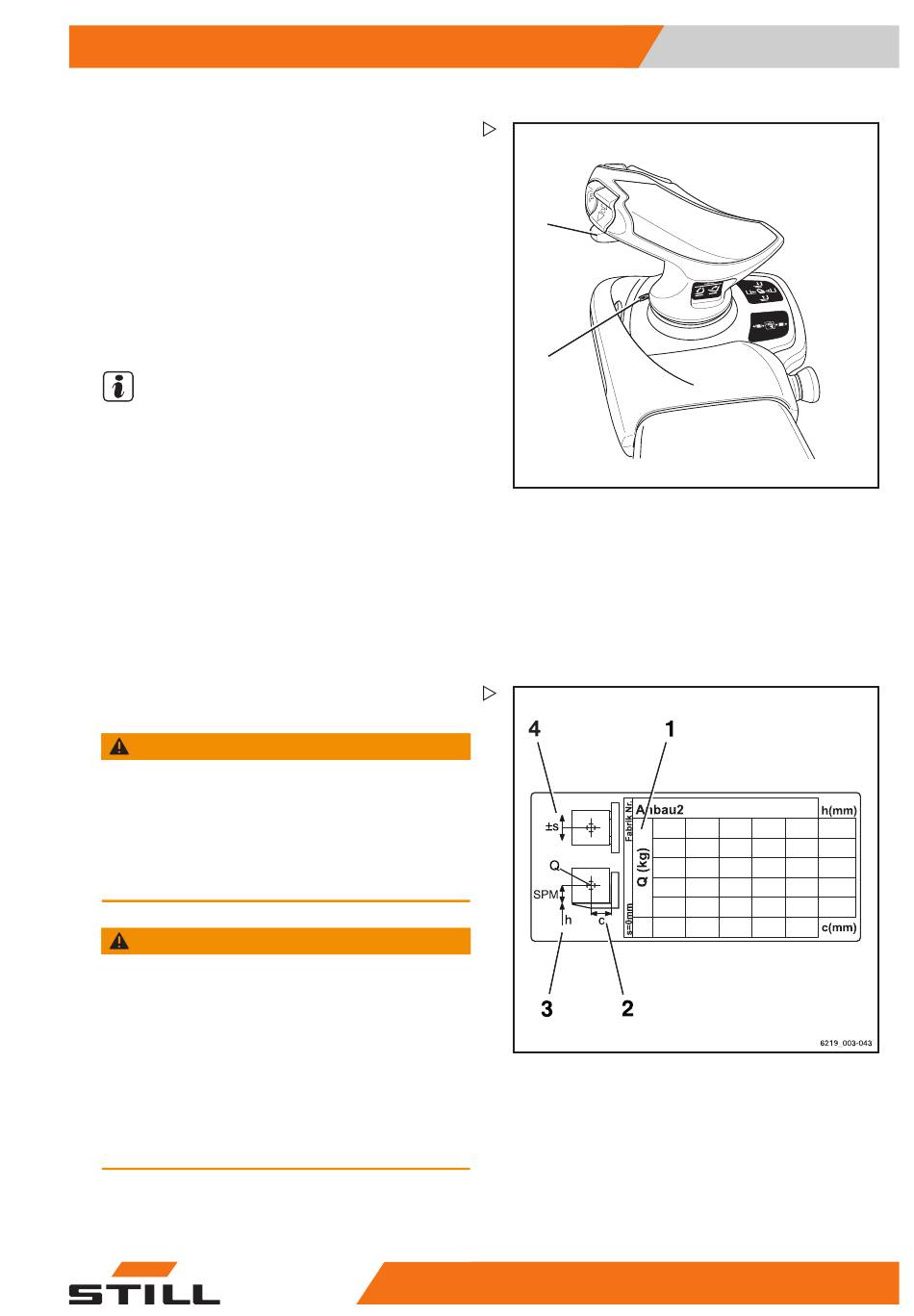

Joystick 4Plus
– To release the clamp locking mechanism,
push the slider (1) to the left.
The clamp locking mechanism is released.
The LED for the "clamp release" (2) lights
up and remains lit while the clamp locking
mechanism is released.
– To open the clamp, push the slider (1) to the
left again.
NOTE
The hydraulic function for opening the clamp
is available for one second after the clamp
locking mechanism is released. After one
second, the clamp locking mechanism is
automatically reactivated.
It is not necessary to release the clamp locking
mechanism in order to close the clamp.
– To close the clamp, push the slider (1) to the
right again.

Picking up a load using attachments

WARNING
Risk of accident!
Attachments must only be deployed for their in-
tended use as described in the relevant operating
instructions.
Drivers must be taught how to operate the attach-
ments.
WARNING
Risk of accident!
Loads may only be picked up and transported
with attachments if the loads are securely grasped
and attached. Where necessary, loads must also
be secured against slipping, rolling, falling over,
swinging or tipping over. Note that any change to
the position of the load centre of gravity will affect
the stability of the truck.
Check the capacity rating plates for the attachments
or combination of attachments.
– The rating plates show the permissible
values for:
1
2
56368011531 EN - 06/2019 - 02
4
Attachments
255
