4
Cab

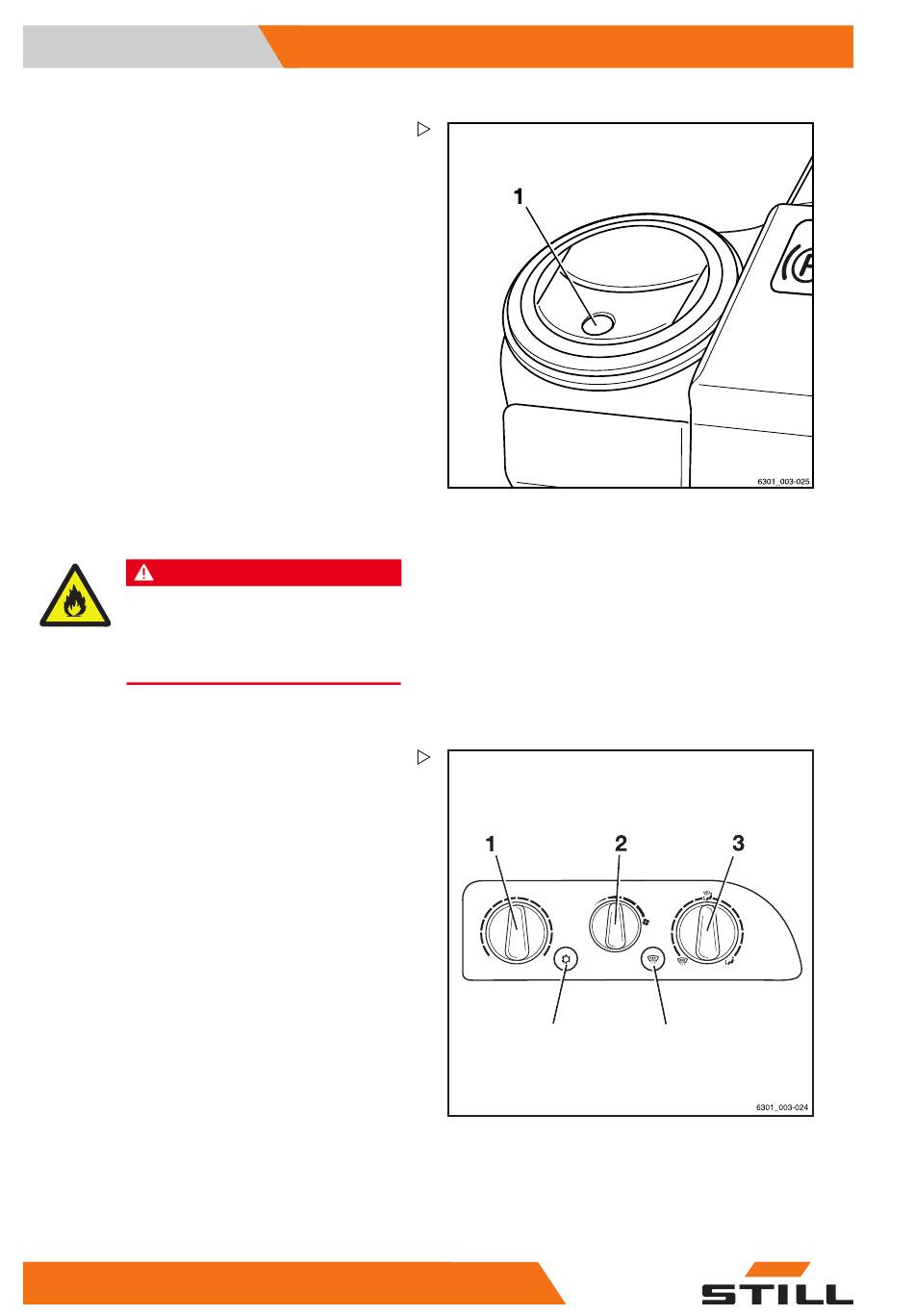

Adjusting the air distributors
The air distributors for the driver are always
supplied with air. It is not necessary to adjust
the heating system using the operating
devices.
– To open the air distributor, push the inden-
tation (1) on the disc.
The discs open.
– Grasp the discs to align the air flow:
The discs can be adjusted to the desired
angle. The air distributor can be rotated.
– Press down again to close the discs.
Changing fuses
DANGER
Using the wrong fuses can result in
short circuits. Risk of fire!
– Use only fuses with the prescribed
nominal current.

Air conditioning (variant)

The air conditioning dries the air in the cab
to prevent the glass panes misting up. The
temperature of the air that is blown out is
based on the heating level that has been set.
The defrost function can be used to de-ice the
windscreen quickly.
The operating devices of the air conditioning
include:
1 Heating level control knob
2 Fan control knob
3 Air vent control knob
4 Defrost switch
5 On/off switch
– To adjust the air distributors and to control
the blower positions, the heat settings and
the air vent control knob, see the section
entitled "Heating system (variant)".
270 56368011531 EN - 06/2019 - 02
0
5 4
Operation
