Operation
Controlling attachments using
multi-lever operation

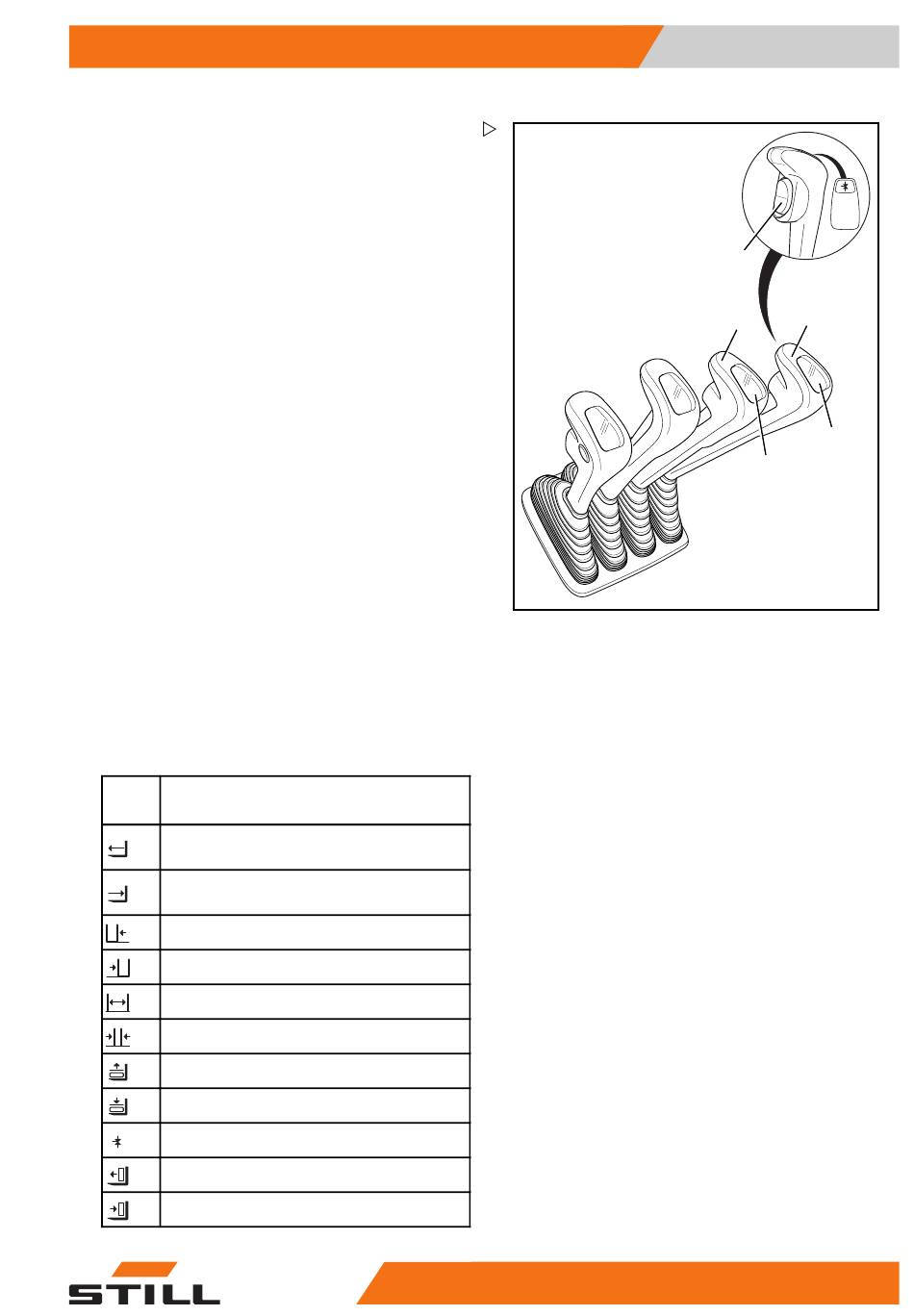

In this version, the attachments (variant) are
controlled using the operating levers (1, 3)
and the function switch (2). The adhesive
labels bearing the pictograms for the hydraulic
functions (4, 5) are affixed on the operating
levers.
– Observe the pictograms on the adhesive
label (4) or (5).
The pictograms are arranged according to
the direction of movement of the operating
lever (1) or (3).
The following applies:
– Move the operating lever forwards.
The attachment moves in the direction of
movement shown in the upper part of the
pictogram.
– Move the operating lever backwards.
The attachment moves in the direction of
movement shown in the lower part of the
pictogram.
– Note the following attachment functions and
pictograms.
Picto-
Attachment function
gram
Move the side shift frame or fork
forwards
Move the side shift frame or fork
backwards
Move the sideshift to the left
Move sideshift to the right
Adjust fork arms: open
Adjust fork arms: close
Release load retainer
Clamp load retainer
Release auxiliary hydraulics
Push off the load
Pull in the load
56368011531 EN - 06/2019 - 02
4
Attachments
2
3
1
4
5
6219_003-118_V3
231
