Lifting
Controlling the lifting system using
the Fingertip
DANGER
Reaching into or climbing between moving parts
of the truck (e.g. lift mast, sideshifts, working
equipment, load carrying devices etc.) can lead to
serious injury or death and is therefore prohibited.
– Observe the safety regulations for handling
loads.
– Operate the lifting system from the driver's seat
only.

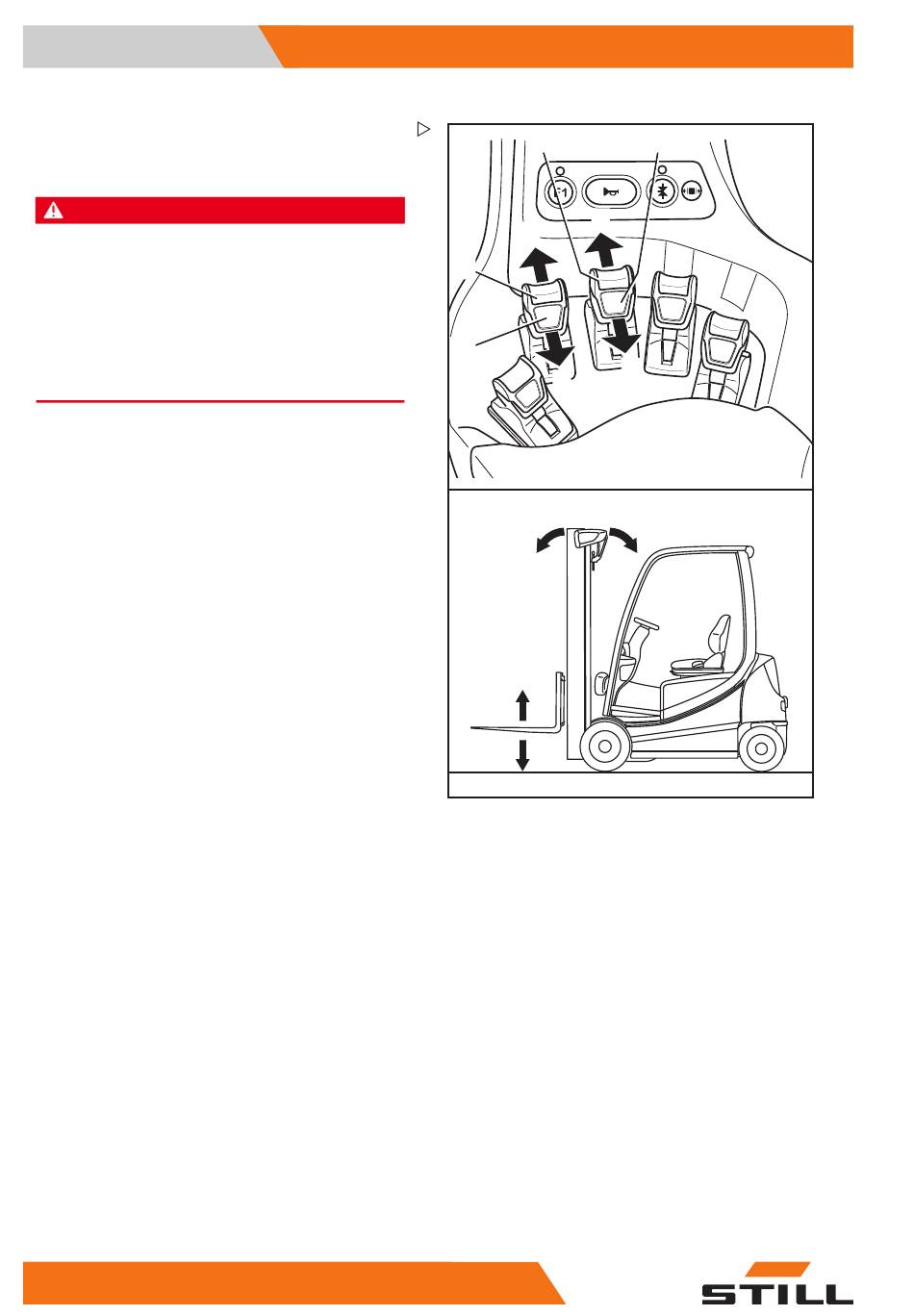

The lifting, lowering and tilting functions of the
lift mast are controlled using the "lifting/lower-
ing" operating lever (1) and the "tilting" operat-
ing lever (4). The adhesive labels bearing the
pictograms for the hydraulic functions (2, 3)
are affixed on the operating levers.
– Observe the pictograms on the adhesive
labels (2) and (3).
The pictograms are arranged according to
the direction of movement of the operating
lever (1) or (2).
Lifting/lowering the fork carriage
To lift the fork carriage:
– Move the "lifting/lowering" operating
lever (1) in the direction of the arrow (A).
To lower the fork carriage:
– Move the "lifting/lowering" operating
lever (1) in the direction of the arrow (B).
Tilting the lift mast
To tilt the lift mast forwards:
– Move the "tilting" operating lever (2) in the
direction of the arrow (C).
To tilt the lift mast backwards:
– Move the "tilting" operating lever (2) in the
direction of the arrow (D).
174
4
3
56368011531 EN - 06/2019 - 02
1 2
A
C
B
D
C D
B
A
Operation
