104 Appendix B
Port and Connector Type (continued)
Table B-1
Port
Display option
Mouse port on keyboard 6-pin Mini-DIN (female) connector

Ethernet RJ45 Port Pinouts

1
2
3
4
5
6
7
8

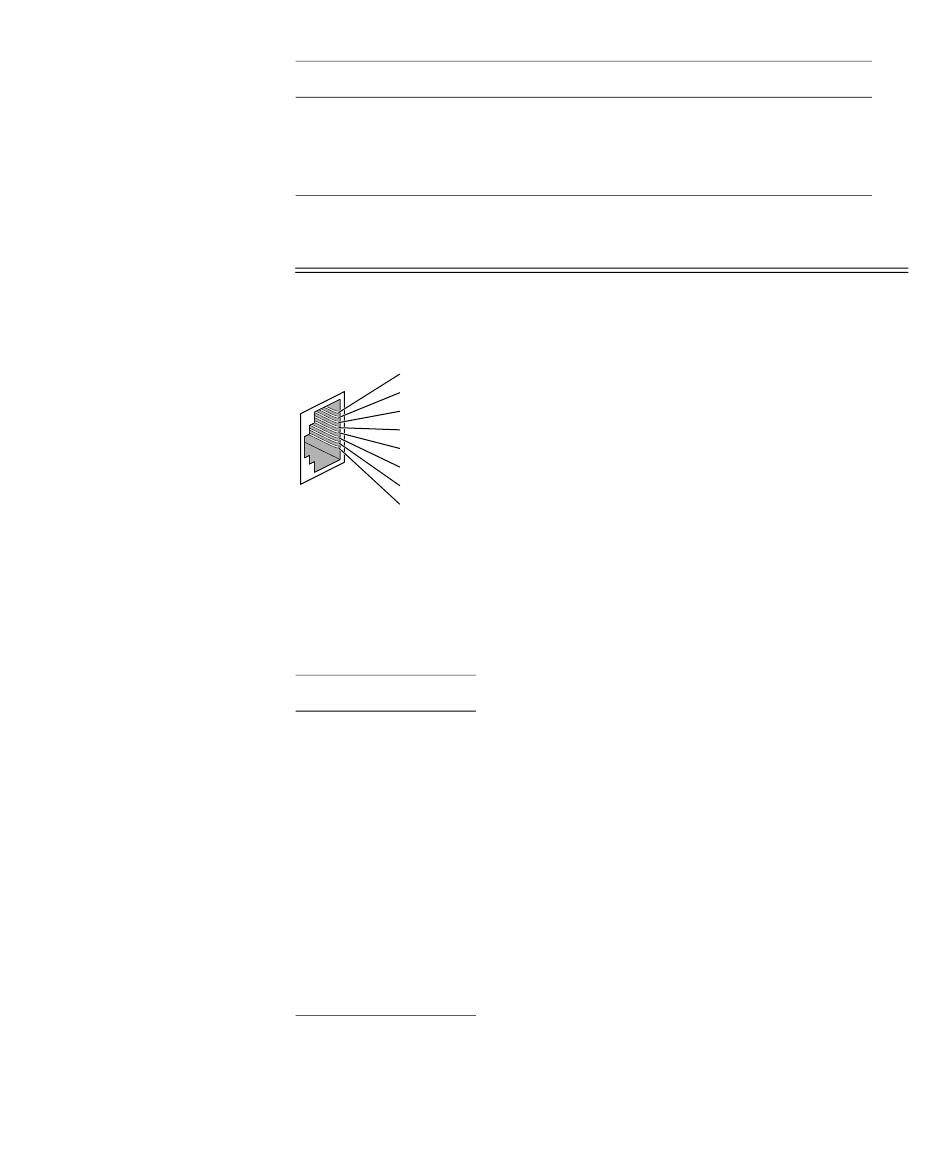

Figure B-1 Ethernet Port Pinouts
Ethernet RJ45 Port Pinouts
Table B-2
Pin Assignment
1 Transmit+
2 Transmit-
3 Receive+
4 (Reserved)
5 (Reserved)
6 Receive-
7 (Reserved)
8 (Reserved)
Connector Type
Digital interface to flat panel monitor with
DDC2B control
