IEEE 1394 Port Pinouts

5
3
1
2
4
6

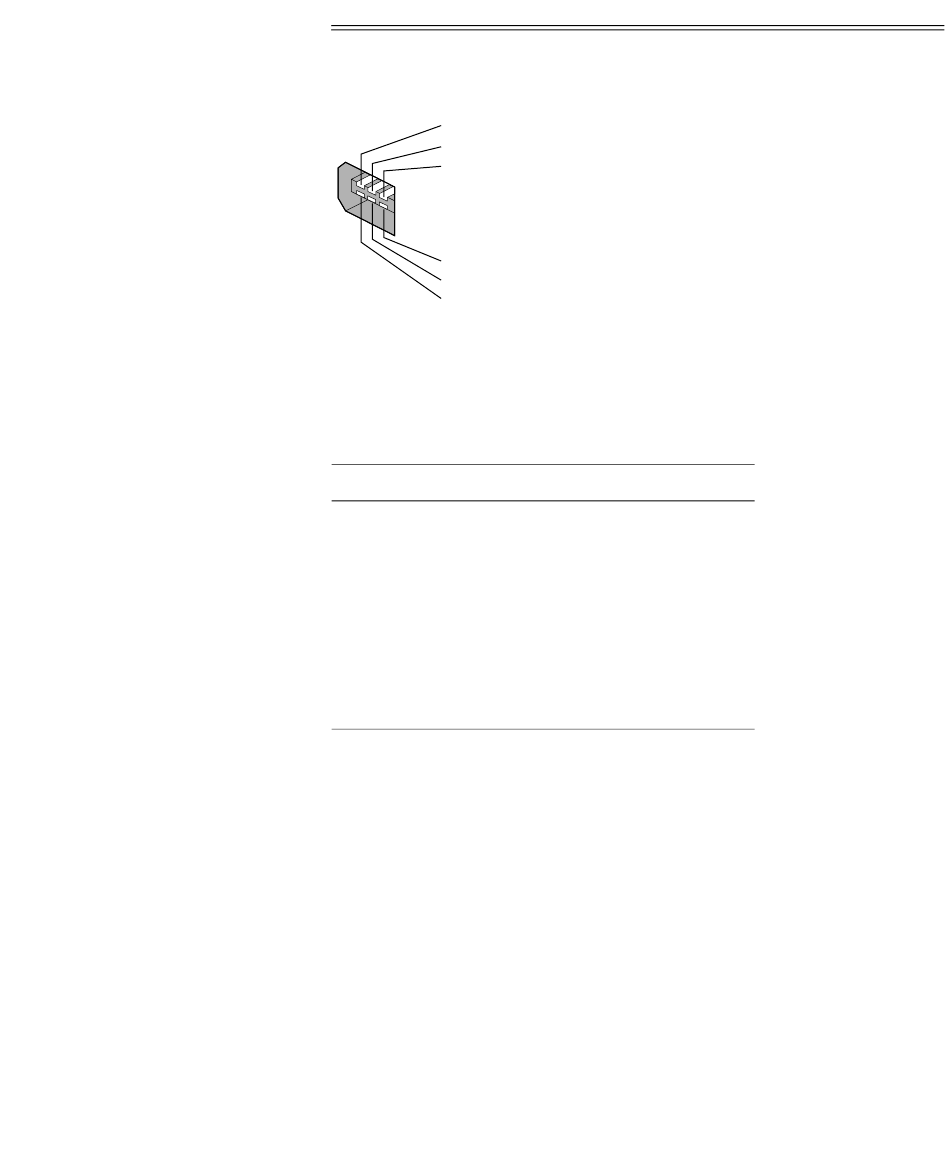

Figure B-2 IEEE 1394 Port Pinouts
Table B-3 IEEE 1394 Port Pinouts
Pin Assignment Comment
1 VP Cable power
2 VG Cable ground
3 TPB Strobe receive, data on transmit
4 TPB (differential pair)
5 TPA Data receive, data on transmit
6 TPA (differential pair)
Port Information 105
