50 Chapter 4
9. Attach the power and ribbon cables to the back of the drive if one
is installed, as shown in Figure 4-19.
If you are installing internal SCSI drives, see "Attaching the SCSI
PCI Option Card Internal Cable" on page 51 for information on
attaching the SCSI cable to these drives.

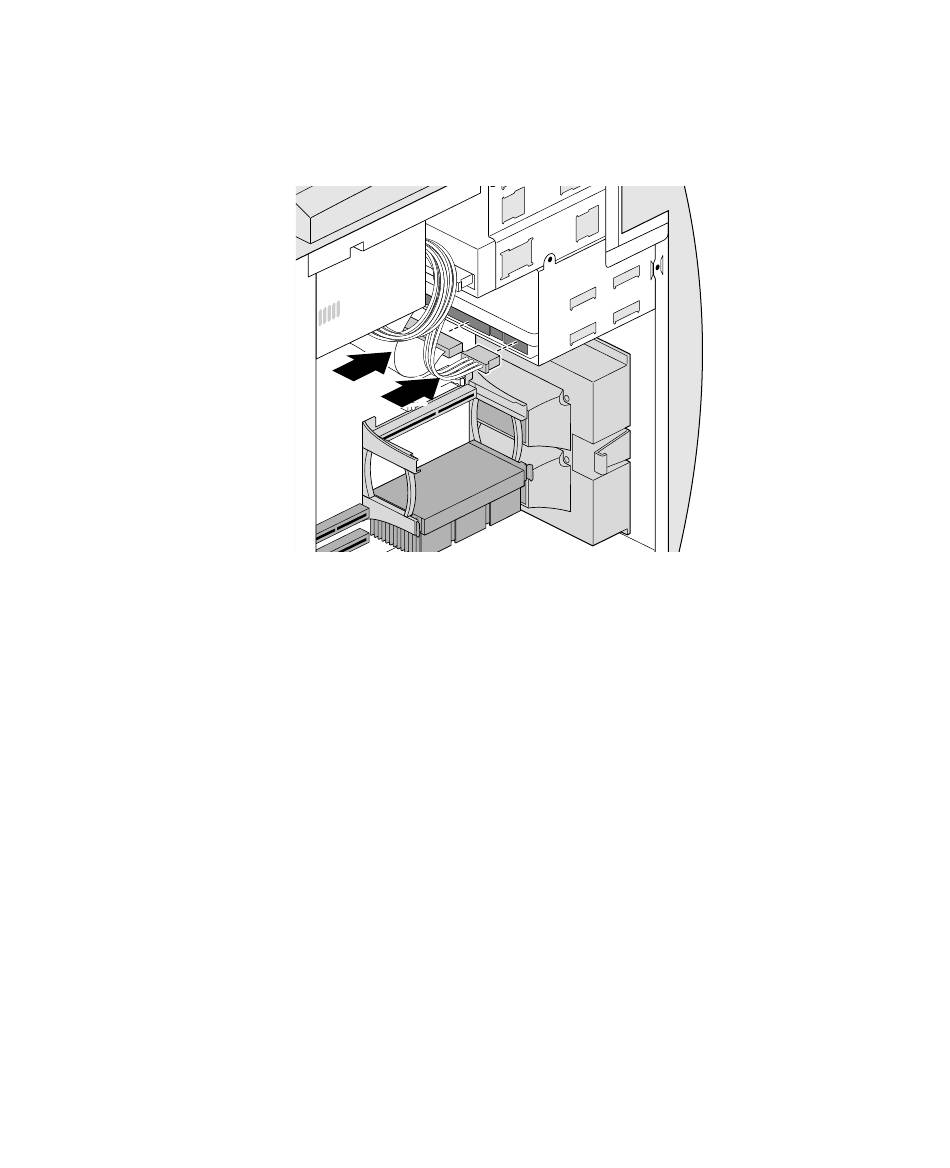

Figure 4-19 Attaching Cables to an Internal Hard Drive

10. Replace the side cover. For detailed instructions, see "Replacing
the Side Cover" on page 21.
11. Reattach the power cord.
12. If you still have a system drive installed, turn on the system. For
detailed instructions, see "Turning On the System" on page 11.
If the system does not recognize the drive, see "Verifying and
Troubleshooting Internal Hard Drive Installation" on page 45 for
troubleshooting information.
