46 Chapter 4

Removing an Internal Hard Drive

To remove an internal hard drive:
1. Shut down the system and turn off the power. For detailed
instructions, see "Shutting Down the System" on page 12.
2. Unplug the power cord from the back of the system.
3. Remove the side cover. For detailed instructions, see "Removing
the Side Cover" on page 16.
4. Detach the cables from the back of the drive (or both drives, if
two are installed), as shown in Figure 4-15.
If you have internal SCSI drives installed, see "Disconnecting the
SCSI PCI Option Card Internal Cable" on page 52 for information
on disconnecting the SCSI cable from these drives.

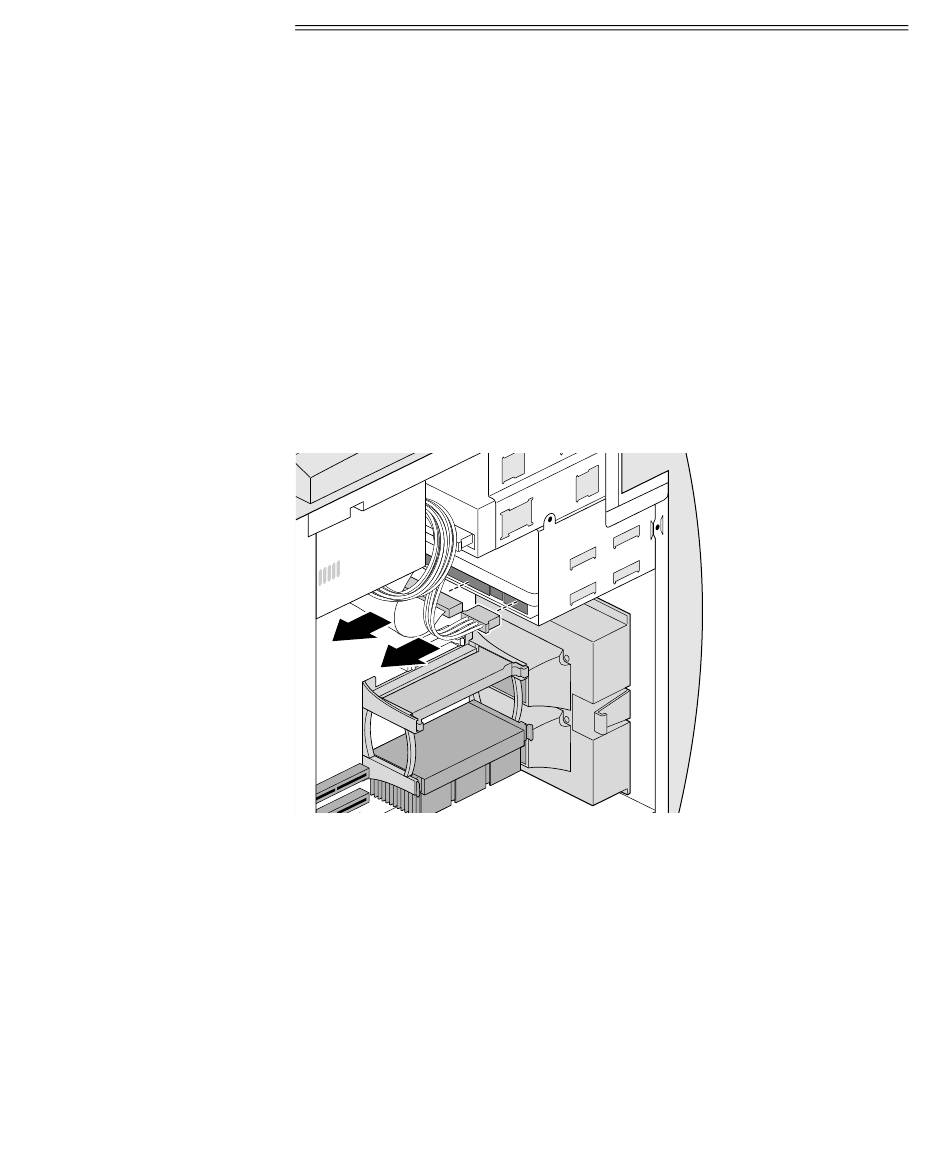

Figure 4-15 Disconnecting Cables from an Internal Hard Drive
