6. Make sure the processor count jumper is in the correct position
for the number of processors in the system.
• If you are only installing a primary processor and are leaving
a processor terminator in the top slot, move the jumper to the
two leftmost pins.
• If you are installing a secondary processor, move the jumper
to the two rightmost pins.

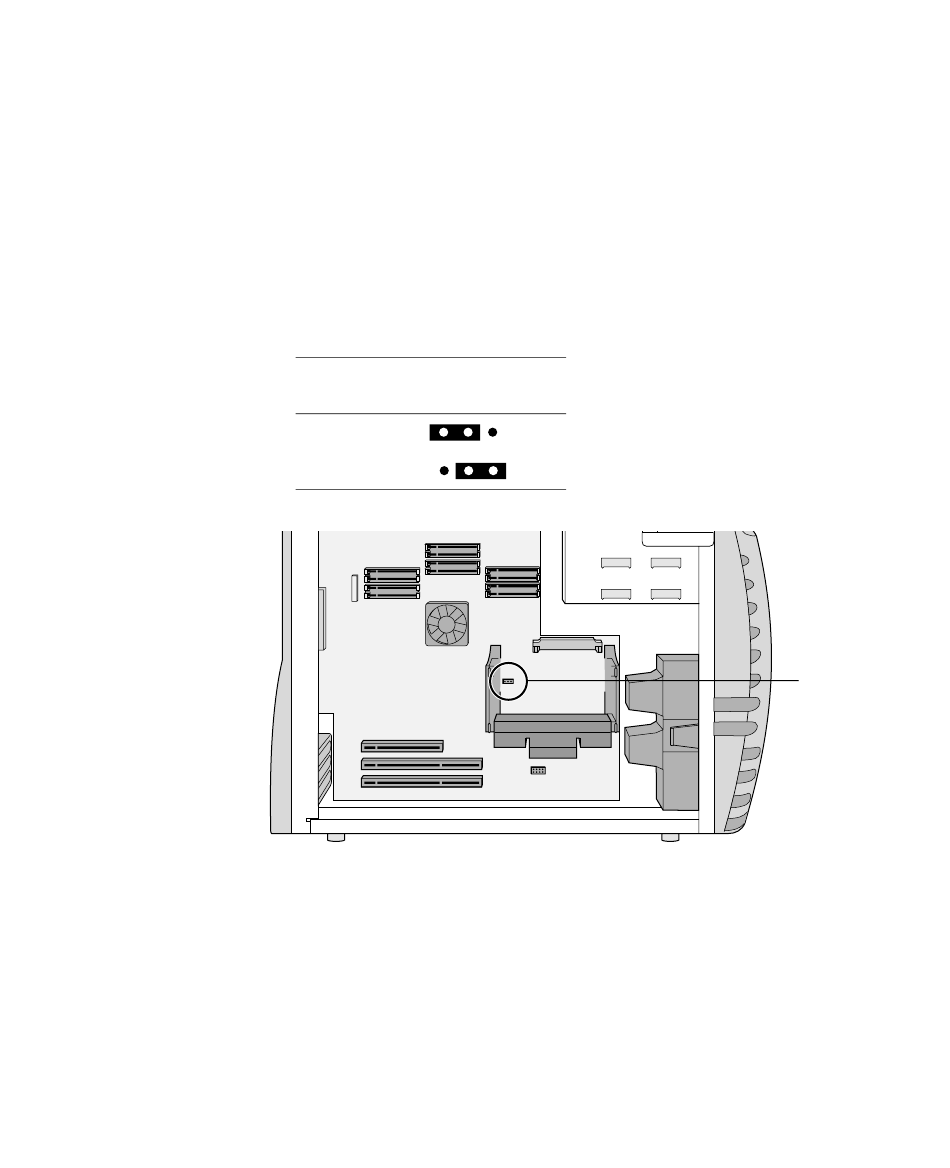

Table 6-1 shows the correct jumper position for the number of
processors. Figure 6-2 shows the location of the processor count
jumper in the system.
Table 6-1 Processor Count Jumper Configuration
Number of Jumper Position
Processors
1
2
Figure 6-2 Processor Count Jumper
Processor
count jumper
