4. Remove the two screws attaching the card to the back panel, as
shown in Figure 5-8.

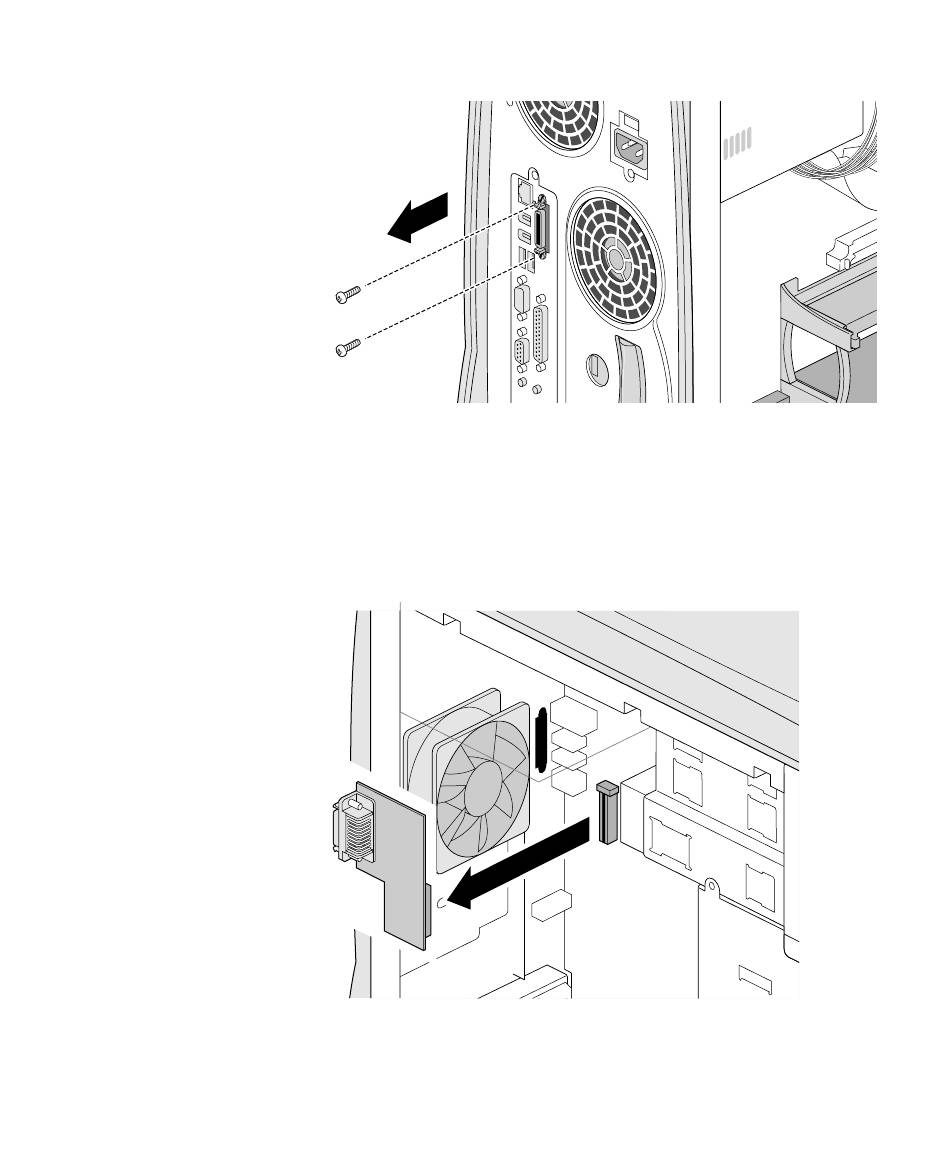

Figure 5-8 Removing the Screws from the Display Option Card
5. Remove the option card by gently pulling it out of the socket, as
shown in Figure 5-9.
Caution: Space is tight, so avoid contact with the DIMMs
while removing the bracket.
Removing the Display Option Card
Figure 5-9
Option Cards 63
