7. If you are installing a replacement processor or upgrade, see
"Installing a Processor" on page 66.
8. If you removed the secondary processor and installed a processor
terminator card, also remove the voltage regulator, as shown in
Figure 6-10.

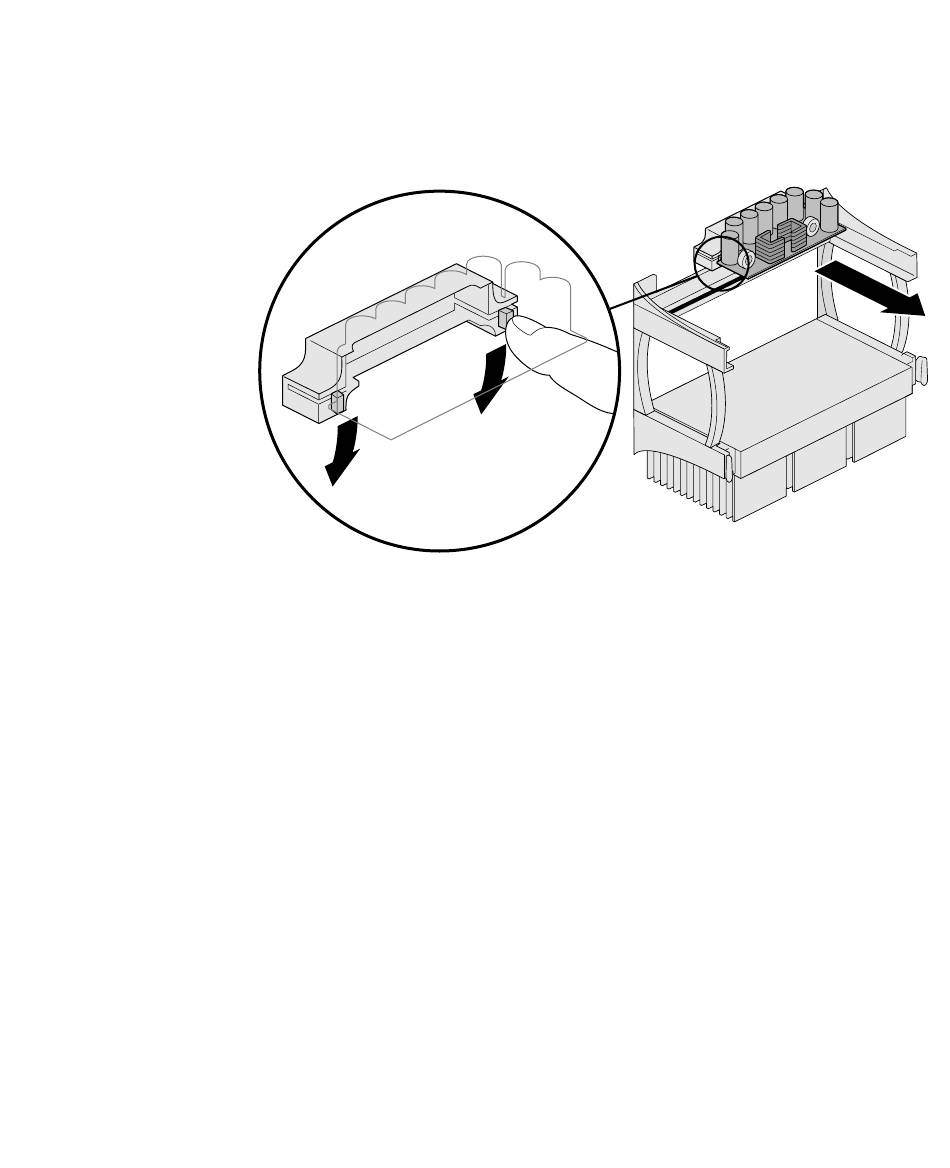

Figure 6-10 Removing the Processor Voltage Regulator

Processors 75
