114 Appendix B
Display Option Card Port Pinouts
1
19
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
18
36

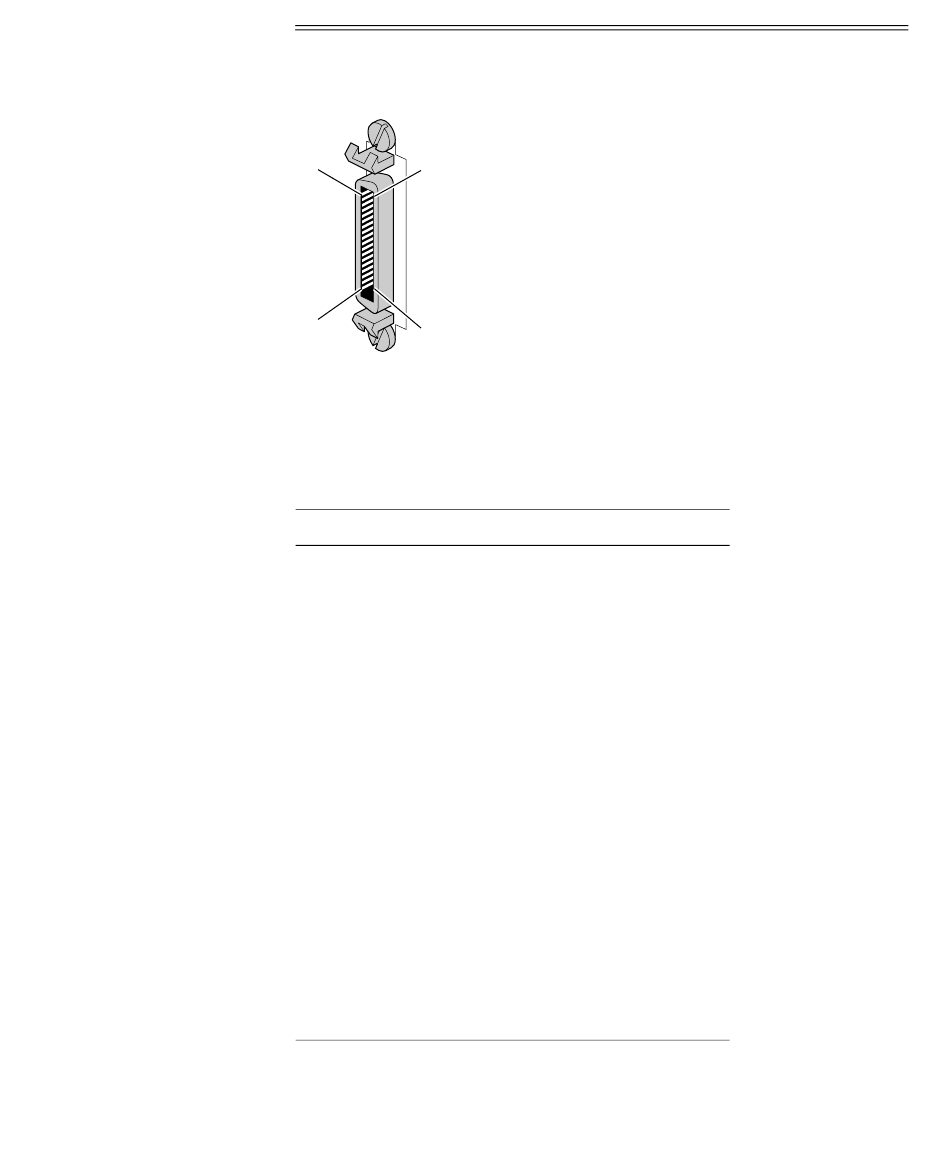

Figure B-11 Display Option Card Port Pinouts
Table B-14 Display Option Card Port Pinouts
Pin
Assignment
1
ODDCH0_N
2
ODDCH0_P
3
ODDCH1_N
4
ODDCH1_P
5
ODDCH2_N
6
ODDCH2_P
7
(Reserved)
8
(Reserved)
9
LVDSGND
10
LVDSGND
11
(Reserved)
12
(Reserved)
13
EVNCH0_N
Pin
Assignment
19
ODDCH3_N
20
ODDCH3_P
21
ODDCLK_N
22
ODDCLK_P
23
12C_SCL
24
12C_VCC
25
12C_SDA
26
12C_DGND
27
(Reserved)
28
(Reserved)
29
(Reserved)
30
(Reserved)
31
TXR_ENABLE_NOT
