Parallel Port Pinouts

14
15
16
17
18
19
20
21
22
23
24
25

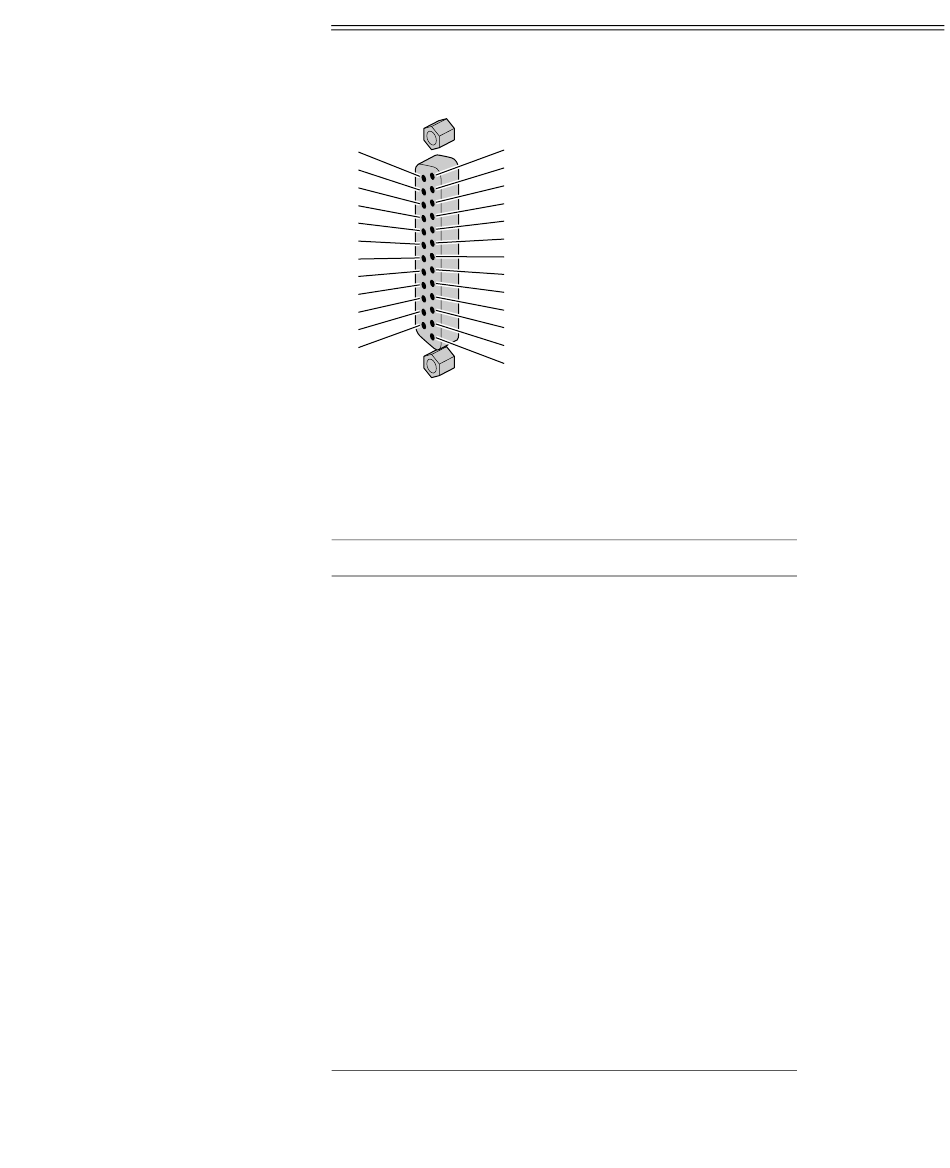

Figure B-4 Parallel Port Pinouts
Table B-5 Parallel Port Pinouts
Pin Assignment
1 Strobe
2 Data 0
3 Data 1
4 Data 2
5 Data 3
6 Data 4
7 Data 5
8 Data 6
9 Data 7
10 Ack
11 Busy
12 Error
13 Select
1
2
3
4
5
6
7
8
9
10
11
12
13
Pin Assignment
14 AutoFd
15 Fault
16 Init
17 SelectIn
18 Ground
19 Ground
20 Ground
21 Ground
22 Ground
23 Ground
24 Ground
25 Ground
Port Information 107
