32 Chapter 4
Configuration and Cabling for Internal Ultra33 EIDE
Drives
The Silicon Graphics 320 visual workstation supports Ultra DMA
EIDE internal drives. It has bays for three removable media
drives—two 3½" drives (floppy and option drive) and one 5¼" drive
(CDROM)—and two hard disk drives.
Refer to Figure 4-1 for correct cabling and configuration information
for the internal EIDE drives.

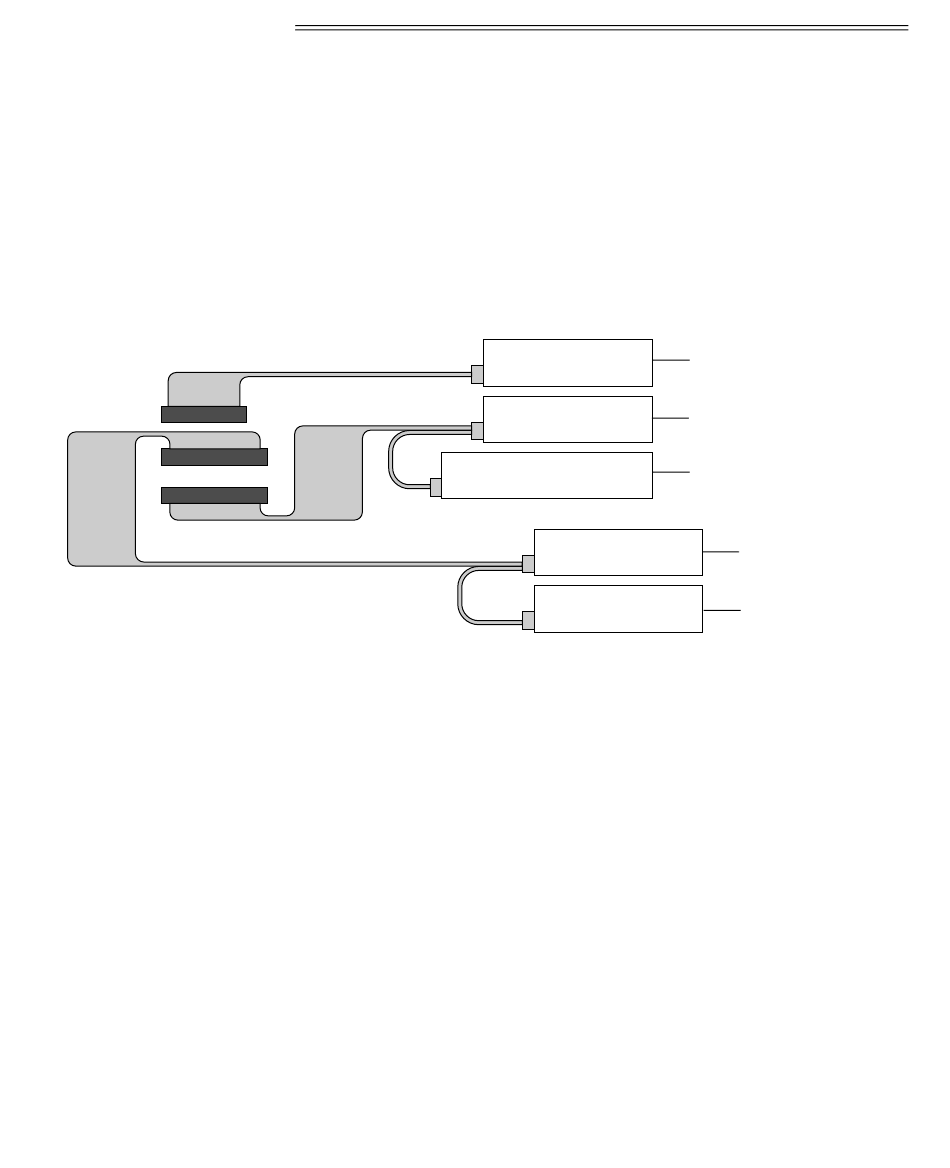

Figure 4-1 Cabling and Configuration for Internal EIDE Drives
Floppy drive
Option drive (Slave)
CDROM (Master)
Option hard drive
(Slave)
System drive (Master)
