PS/2 Mouse Port Pinouts on Keyboard

Chassis ground
5
6
3
4
1
2

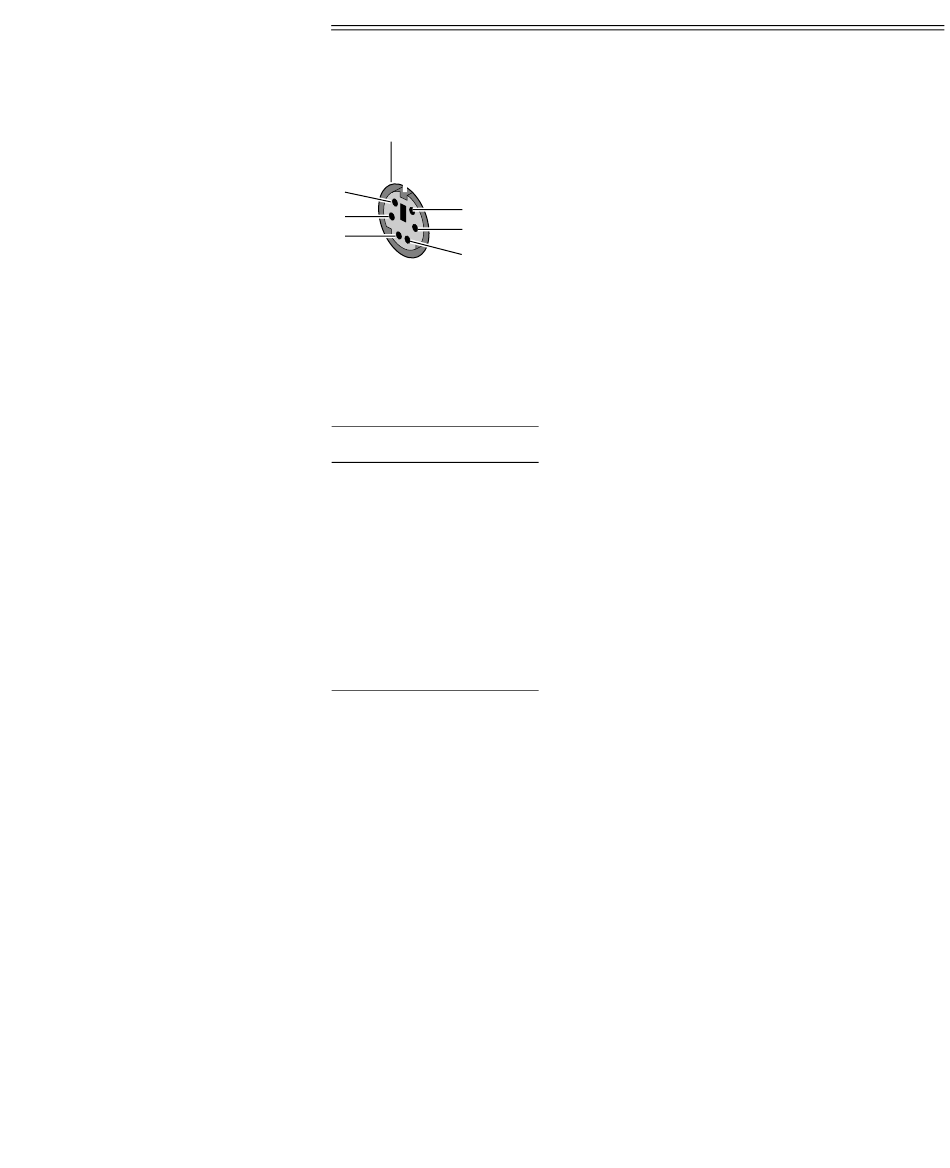

Figure B-10 PS/2 Mouse Port Pinouts on Keyboard

Table B-13 PS/2 Mouse Port Pinouts on Keyboard

Pin Assignment
1 Data
2 (Reserved)
3 Signal ground
4 Power (+5 V)
5 Clock
6 (Reserved)
