12. Attach the power and ribbon cables to the back of the drive (or
drives, if two are installed), as shown in Figure 4-14. To see a
more detailed diagram of the correct ribbon cabling for the
drives, refer to Figure 4-1.
If you are installing internal SCSI drives, see "Attaching the SCSI
PCI Option Card Internal Cable" on page 51 for information on
attaching the SCSI cable to these drives.

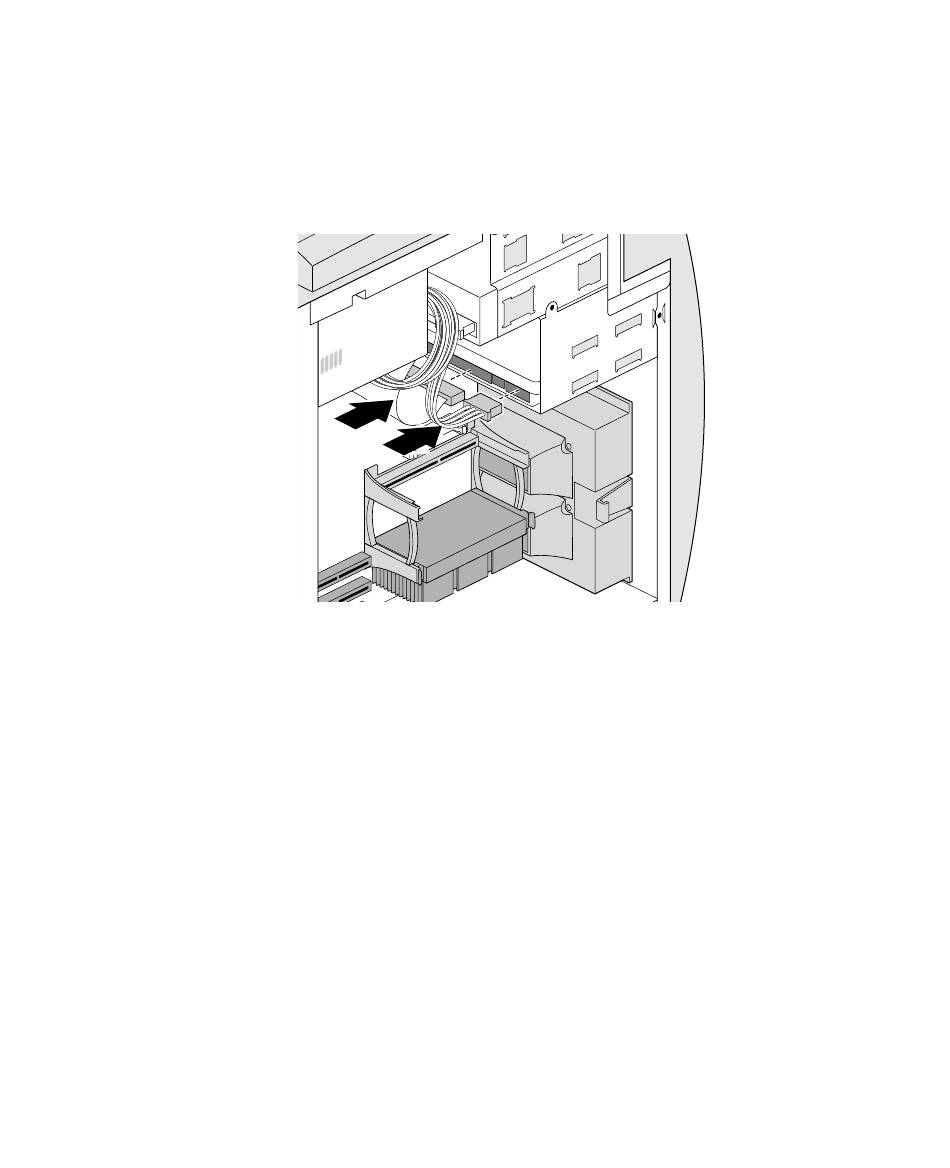

Figure 4-14 Attaching Cables to an Internal Hard Drive

13. Replace the side cover. For detailed instructions, see "Replacing
the Side Cover" on page 21.
14. Reattach the power cord.
15. Turn on the system. For detailed instructions, see "Turning On
the System" on page 11.
