56 Chapter 5
6. Install the new card, as shown in Figure 5-2.
Insert the card into the slot.
Insert a Philips screwdriver through the opening opposite
the screw hole and insert and tighten the screw.
If you are installing a SCSI PCI option card and internal drives,
see Chapter 4, "Internal Drives" for information on installing the
drives and attaching the internal cable.

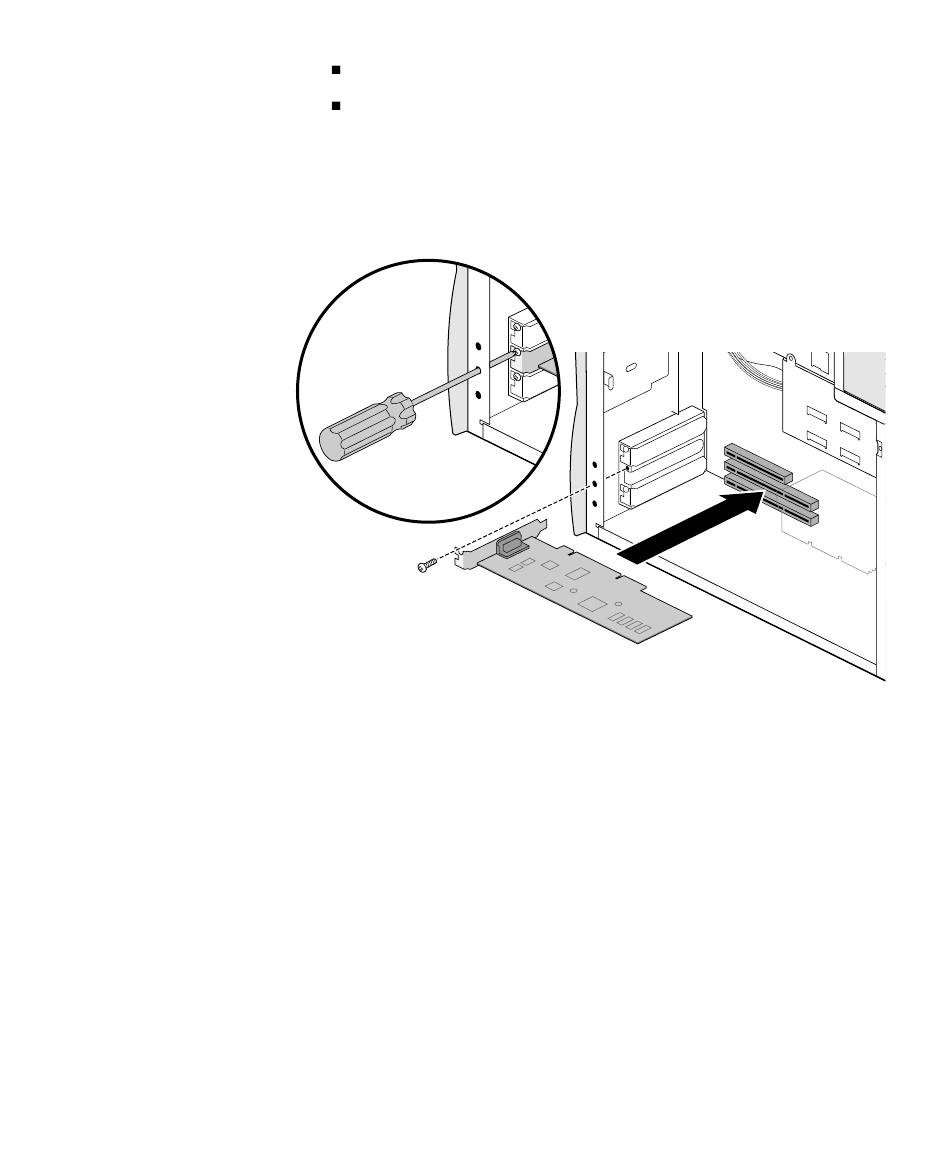

Installing a PCI Card
Figure 5-2
7. Replace the side cover. For detailed instructions, see "Replacing
the Side Cover" on page 21.
8. Reattach the power cord.
9. Power on the system. For detailed instructions, see "Turning On
the System" on page 11.
