Attaching the SCSI PCI Option Card Internal Cable

If you purchased an optional SCSI PCI card and internal drives, refer
to Figure 4-20 to attach the cable to the card and to the internal SCSI
drives. See Chapter 5, "Option Cards," for information on installing or
removing a SCSI PCI card. For information on attaching SCSI devices
and verifying and troubleshooting their installation, see Appendix C.

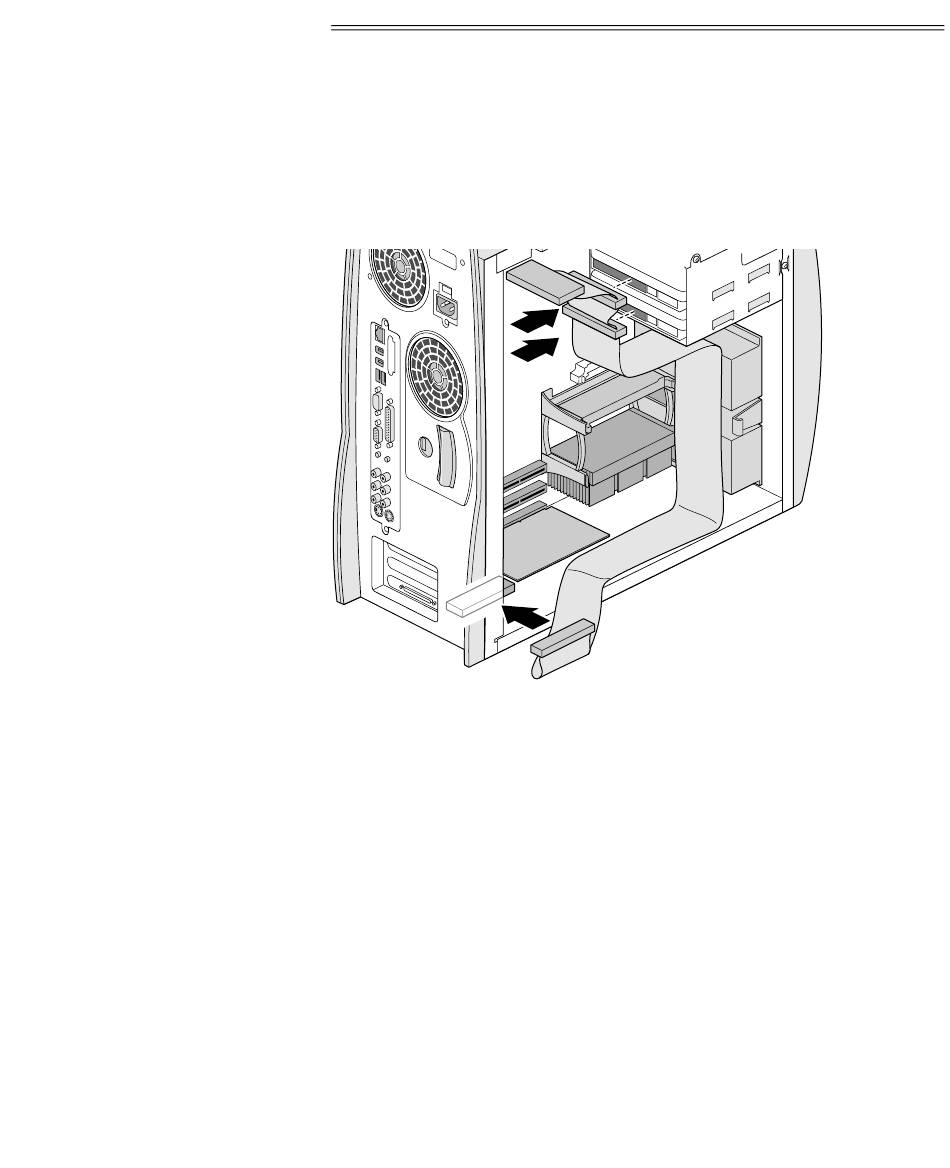

Figure 4-20 Attaching the SCSI PCI Option Card Internal Cable

Internal Drives 51
