Figure 4-3 Attaching The Sleds To A Removable Media Drive; Figure 4-4 Removing A Blank Panel From A Removable Media Drive Slot - Silicon Graphics 320 Owner's Manual

6. Attach a sled to each side of the drive, as shown in Figure 4-3.
Position the tabbed end of a sled towards the front of the
drive, approximately half an inch from the edge.
Align the two screw holes in the sled with the screw holes in
the drive, then insert and tighten the screws.

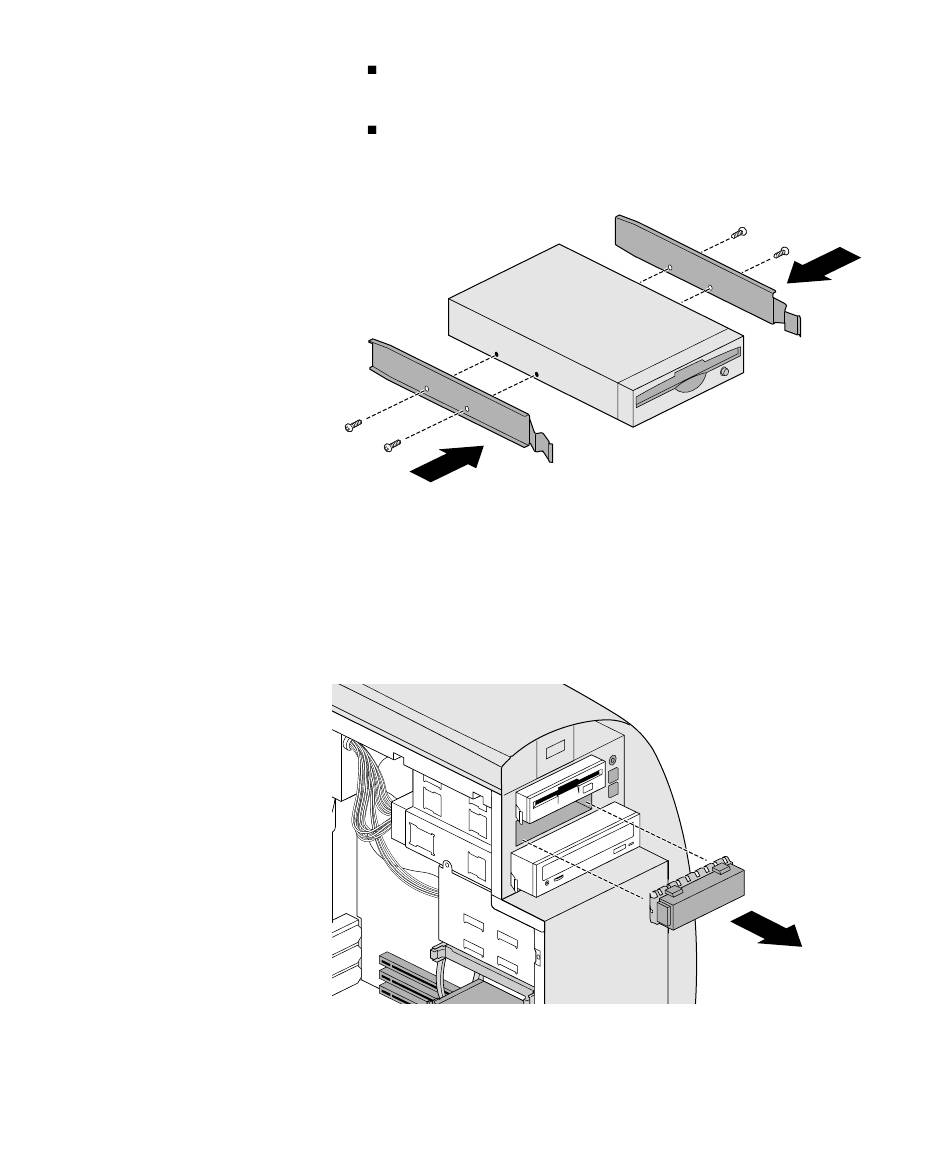

Figure 4-3 Attaching the Sleds to a Removable Media Drive
7. If there is a blank panel covering the drive opening in the system,
remove it, as shown in Figure 4-4.
Save the panel. In the future, if you remove the drive and leave
the bay empty, you will need to reinstall the panel.
Figure 4-4 Removing a Blank Panel from a Removable Media Drive Slot
Internal Drives 35
