Power supply
6. Reattach the two cables to the system board, as shown in
Figure 7-7. The connectors for these cables are located below the
power supply and above the center set of DIMMs.
Insert the larger cable, tabbed side up, into its connector on
the system board.
Insert the smaller cable, tabbed side down, into its connector
on the system board.

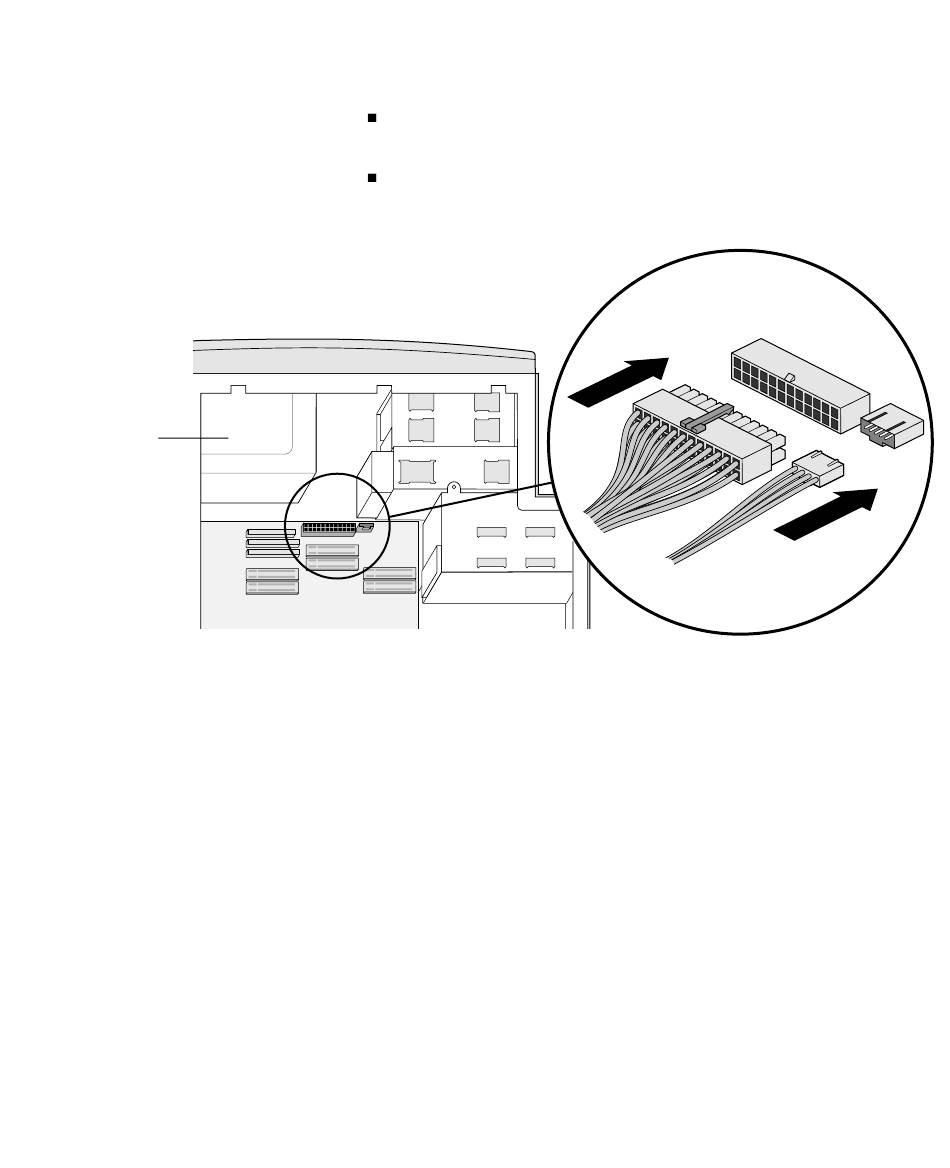

Figure 7-7 Attaching the Power Supply Cables to the System Board
7. Replace the side cover. For detailed instructions, see "Replacing
the Side Cover" on page 21.
8. Reattach the power cord.
9. Turn on the system. For detailed instructions, see "Turning On
the System" on page 11.
Power Supply and Fan 85
