Figure 4-12 Attaching An Internal Hard Drive To The Drive Bracket - Silicon Graphics 320 Owner's Manual

42 Chapter 4
7. Set the jumpers on the drive. To set the jumpers, refer to the
labeling on the back of the drive or to the documentation that
came with the drive.
If you are installing a system drive, set the drive jumpers to
Master.
If you are installing an option drive, set the drive jumpers to
Slave.
If you are installing SCSI drives, set the system drive to SCSI ID 0
and the secondary drive to a number from 1 to 15, excluding
number 7 and any numbers taken by other SCSI drives.
8. Remove four screws from the bag of screws located inside the
side panel. (Refer to Figure 4-2.)
9. Insert the drive into the bracket. If you are installing a system
drive, install it in the bottom slot.
10. Insert and tighten the four screws, as shown in Figure 4-12.

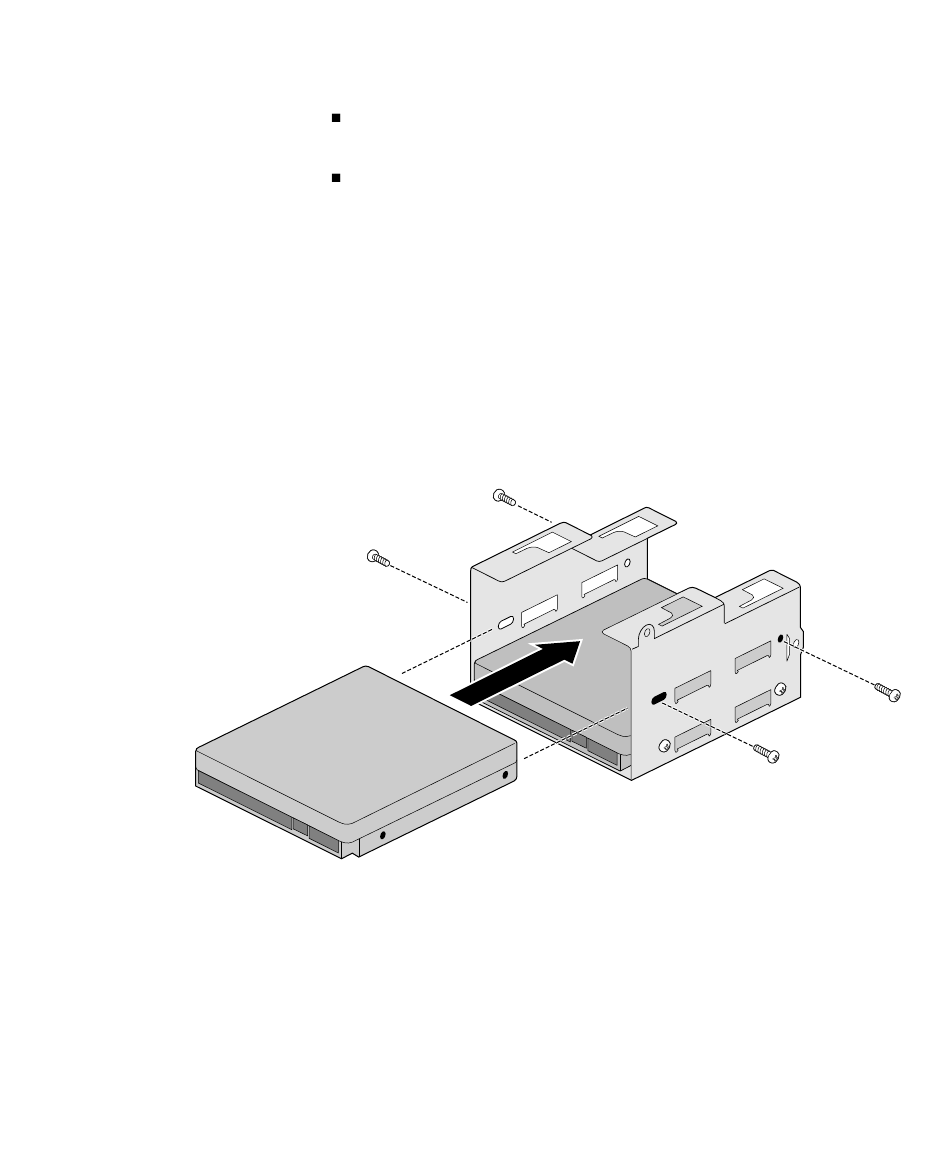

Figure 4-12 Attaching an Internal Hard Drive to the Drive Bracket
