9. If you removed a processor from the top slot and are not
replacing it, install the processor terminator card, as shown in
Figure 6-11.
Push the terminator into the slot.
Push the latches on the sides of the terminator outward until
they snap into place.

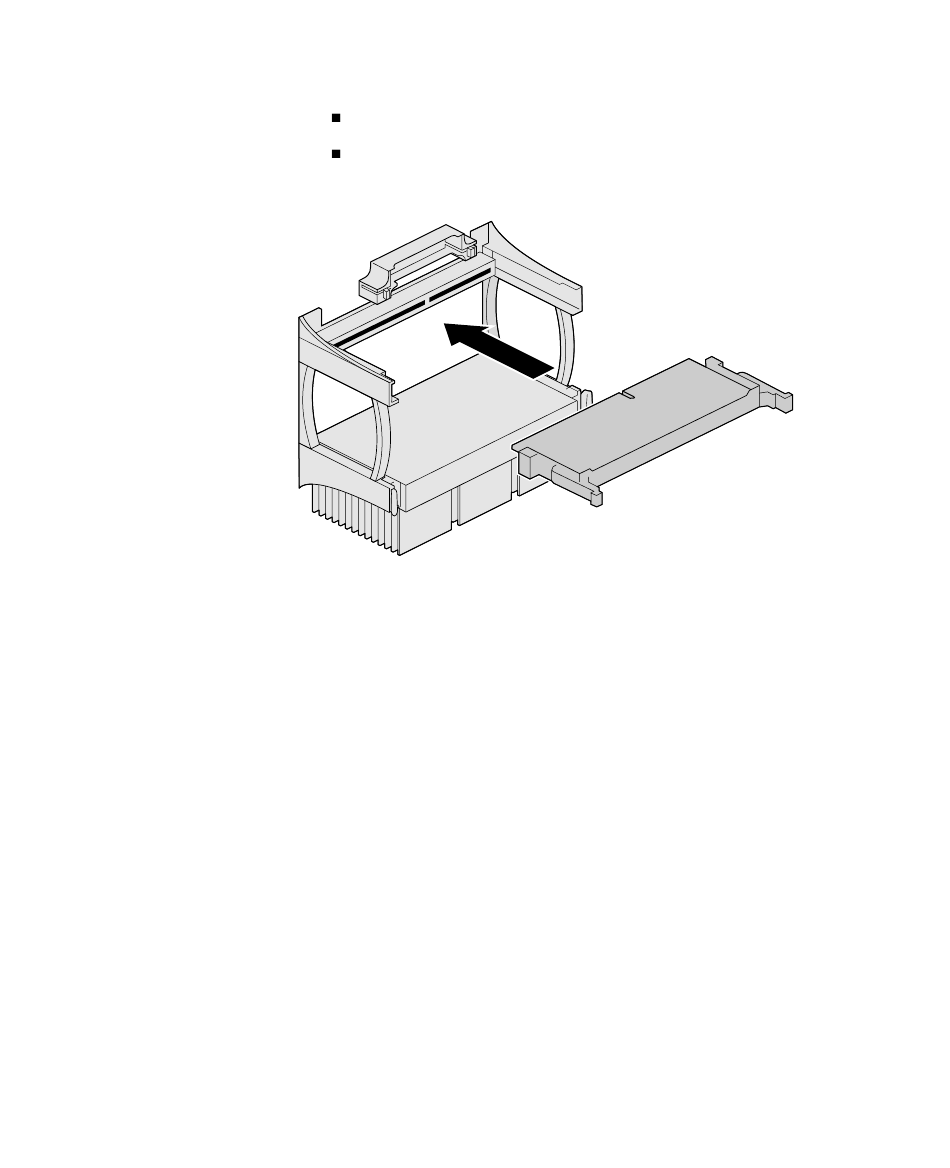

Figure 6-11 Installing a Processor Terminator

10. If you installed a processor terminator in the top slot, make sure
the processor count jumper is on the two leftmost pins. (See Table
6-1 for the correct jumper position and Figure 6-2 to see the
location of the jumper on the system board.)
11. Replace the side cover. For detailed instructions, see "Replacing
the Side Cover" on page 21.
12. Reattach the power cord.
13. Turn on the system. For detailed instructions, see "Turning On
the System" on page 11.
