9. If the processor has a fan attached to it, attach the fan power
supply cable to the appropriate connector on the board, as shown
in Figure 6-5.

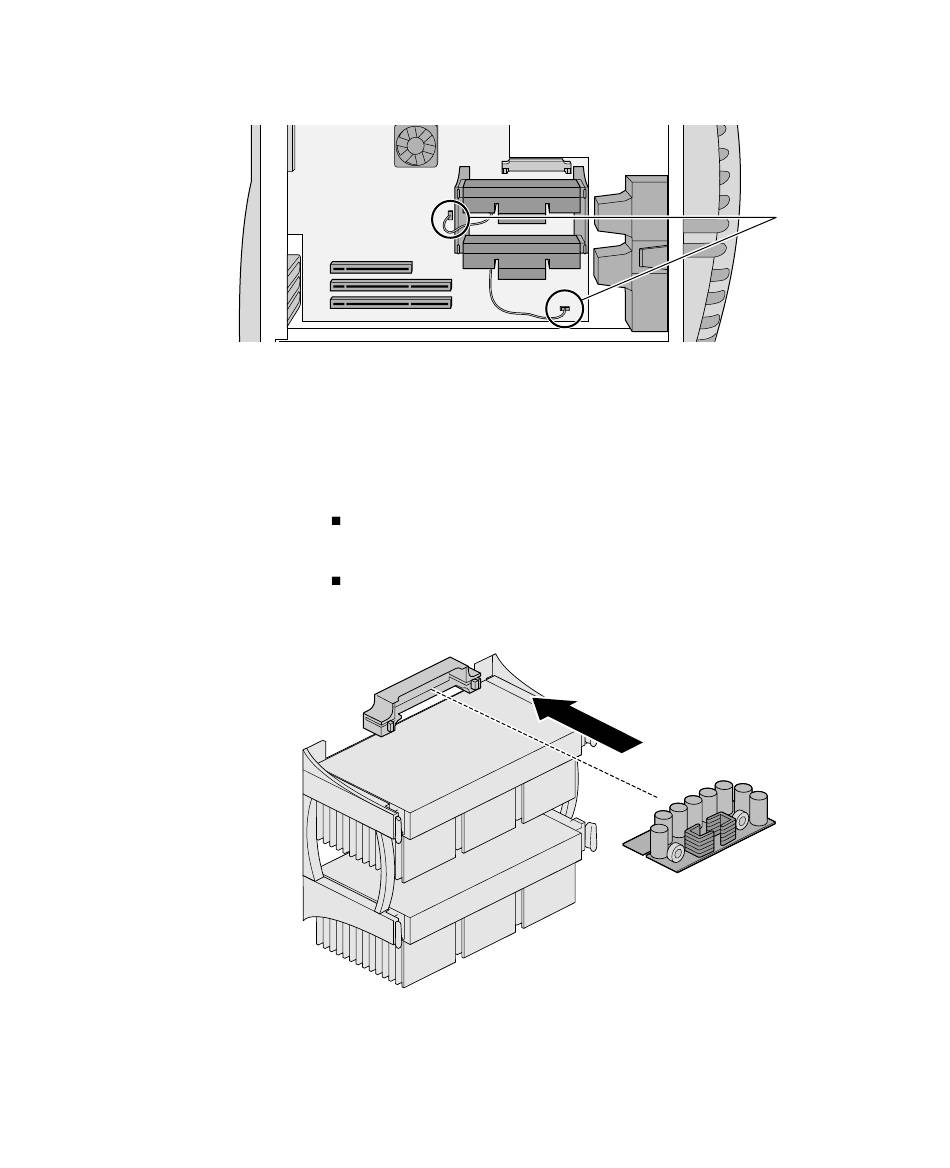

Figure 6-5 Attaching the Processor Fan Power Supply Cable to the Board
10. If you are installing a processor in the top slot, install the voltage
regulator that ships with the processor, as shown in Figure 6-6. (If
a voltage regulator is already installed, you do not need to
remove it or reinstall it.)
Position the voltage regulator so the connector faces the port
above the processor and the flat side faces down.
Push the voltage regulator connector into the port until it
snaps into place.
Figure 6-6 Installing a Processor Voltage Regulator
Processor fan
power cables
