Appendix A: Cable Pinout Assignments
Ethernet AUI
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8

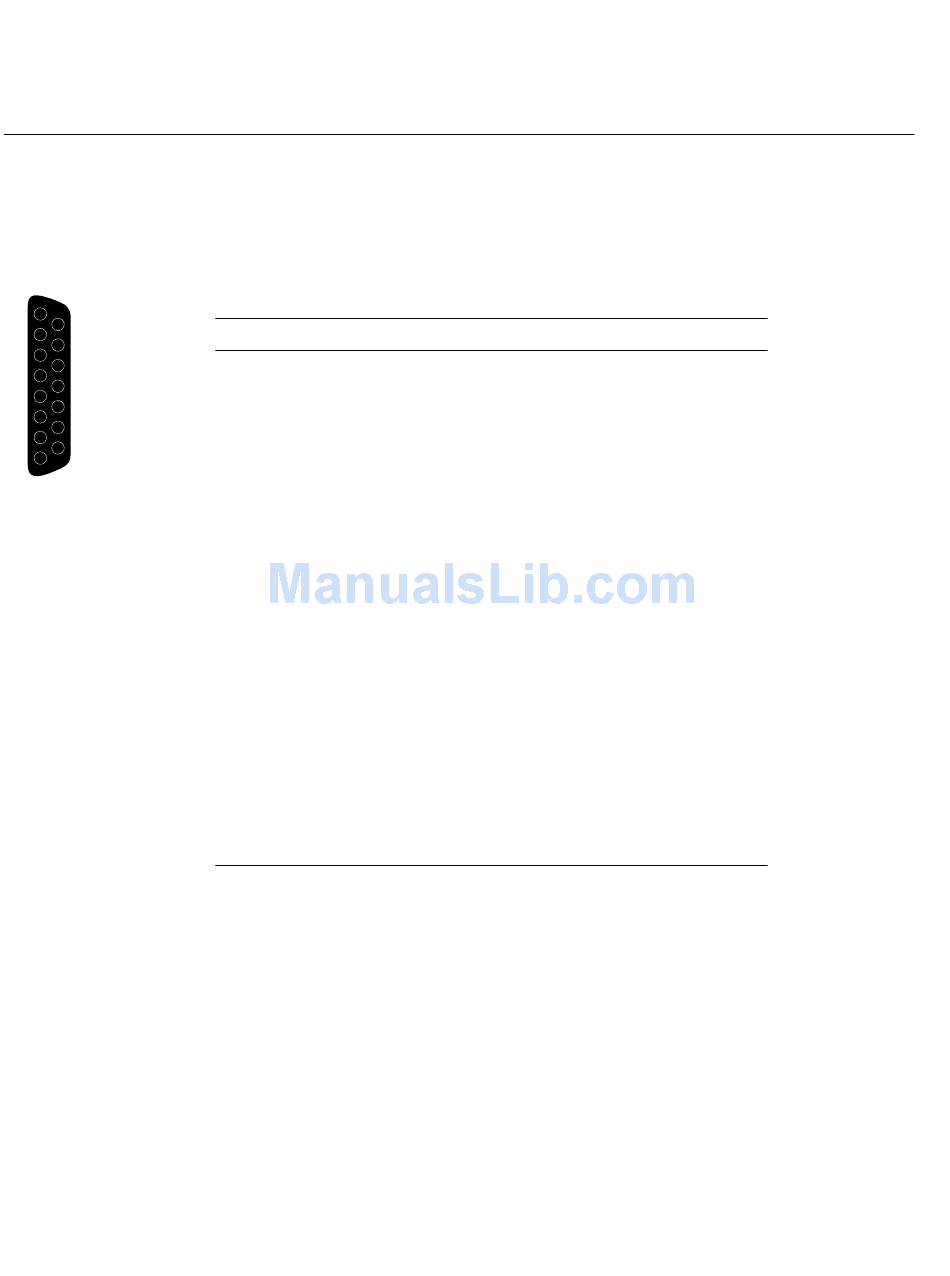

Figure A-4
Ethernet AUI Port
Pinout Assignments
184
Table A-4 shows the cable pinout assignments for the Ethernet AUI port.
Table A-4
Ethernet AUI Port (Thicknet)
Pin
Assignment
1
GROUND
2
COLLISION+
3
TRANSMIT+
4
GROUND
5
RECEIVE+
6
GROUND
7
(Reserved)
8
GROUND
9
COLLISION-
10
TRANSMIT-
11
GROUND
12
RECEIVE-
13
+12V
14
GROUND
15
(Reserved)
