84 Chapter 7
4. Rest it on the tab, as shown in Figure 7-5.

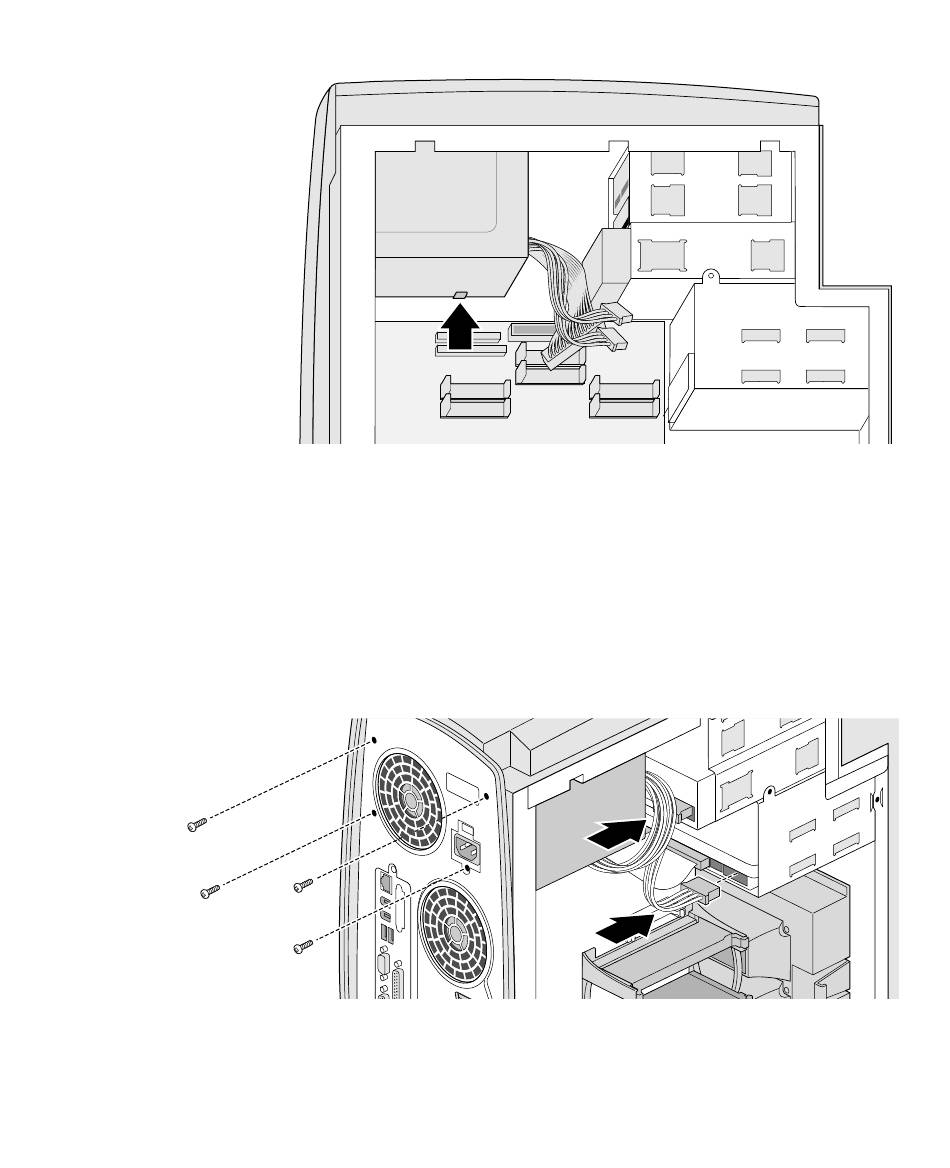

Figure 7-5 Power Supply Tab
5. While supporting the power supply with your hand, replace the
four screws, as shown in Figure 7-6. Then reattach the power
cables to the backs of the internal drives.
Note: Since the space between the power supply and back
of the floppy drive is tight, you may want to attach
the floppy power supply cable to the back of the
floppy drive first before you install the screws.
Figure 7-6 Installing the Power Supply Screws and Cables
