A: Technical Specifications and Pinouts

Keyboard and Mouse Ports

130
The workstation uses keyboards and mouse devices that are PS/2-compatible. The
combined current draw of the keyboard and mouse is limited to 0.5 amps at +5V.
Figure A-2 shows the keyboard and mouse ports.
Keyboard
connector
Pin 6 PIn 5
Pin 4
Pin 2 Pin 1
Mouse
connector
Pin 6 PIn 5
Pin 4
Pin 2 Pin 1

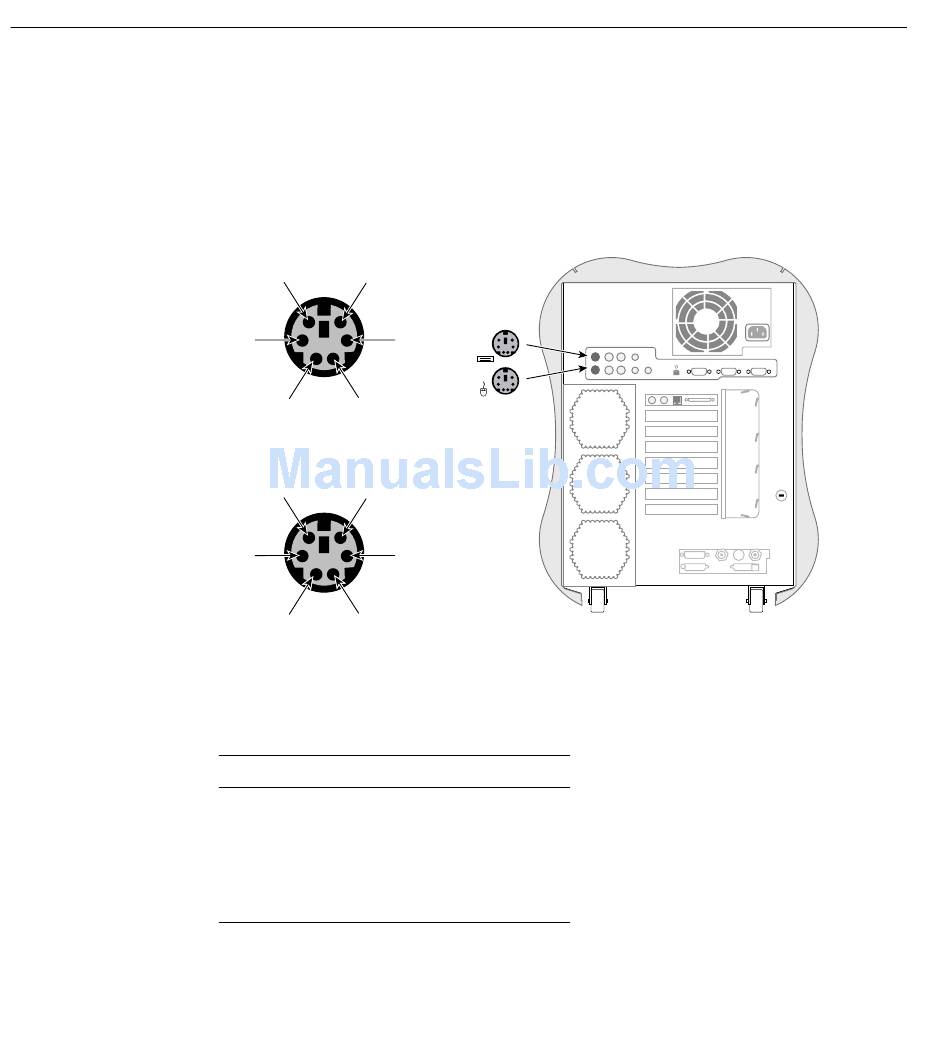

Figure A-2 Keyboard and Mouse Port Pinouts and Locations
Table A-4 shows the pinout assignments for the keyboard and mouse ports.
Table A-4 Keyboard and Mouse Port Pinout
Pin Assignment
1 Keyboard/mouse data
2 (Reserved)
3 Ground
4 Keyboard/mouse power (+5V)
Keyboard
Pin 3
Mouse
Pin 3
